Marine Cast Steel Angle Storm Valve JIS F3060R 5K

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Marine Cast Steel Angle Storm Valve JIS F3060R 5K:

Design Standard: JIS F3060-1996

Test Standard: JIS 7400-1996

Flange size as per JIS B2220 - 5K

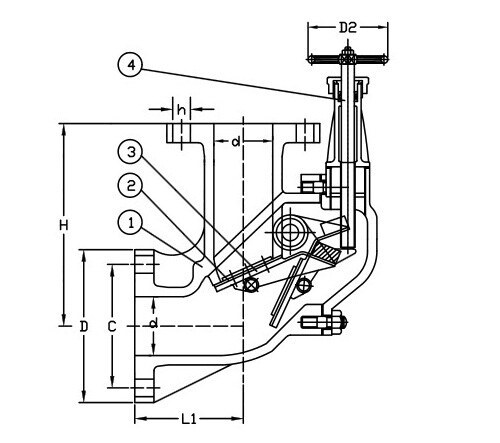

Main Material:

1-Body: Cast Steel (SC480)

2-Seat: Rubber(NBR)

3-Disc: Bronze (BC6)

4-Stem: Stainless Steel (SUS403)

Main Size List(mm):

DN L1 H D C No. h t D2
50 90 170 130 105 4 15 16 100
65 110 200 155 130 4 15 16 100
80 120 220 180 145 4 19 18 125
100 130 250 200 165 8 19 20 125
125 150 270 235 200 8 19 20 125
150 170 310 265 230 8 19 22 125
200 190 400 320 280 8 23 24 125
