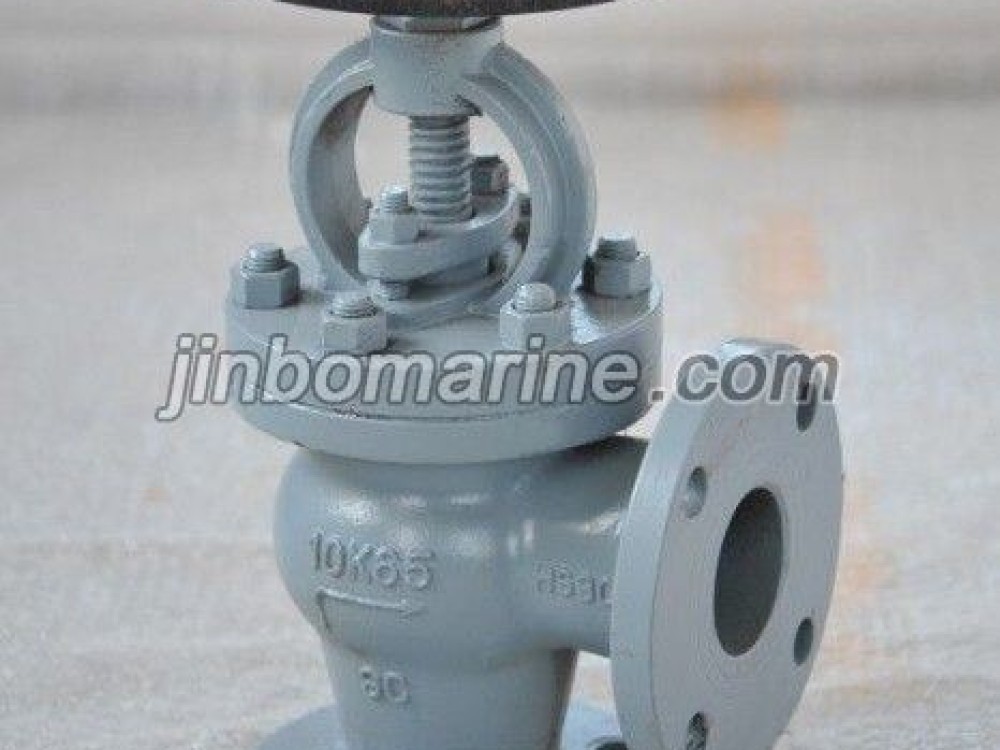

China Marine Cast Steel Angle Valve JIS F7320 10K:
Marine Cast Steel Angle Valve is suitable for the pipe system with the medium fresh water, air & other gas, oil and steam with the temperature not over 300 centigrade degree.
Design Standard: JIS F7320-1996
Test Standard: JIS 7400-1996
Hydraulic Test Pressure:Body- 2.1Mpa, Seat-1.54Mpa
Flange size as per JIS B2220 -10K
Main Material:
Body: Cast Steel (SC480)
Bonnet: Cast Steel (SC480)
Packing Gland: Bronze (BC6) or Stainless Steel (2Cr13)
Stem: C3771BD (Brass) or SUS403
Seat: Bronze (BC6) or Stainless Steel (2Cr13, SCS2)
Disc: Bronze (BC6) or Stainless Steel (2Cr13, SCS2)
Gasket: non-asbestos

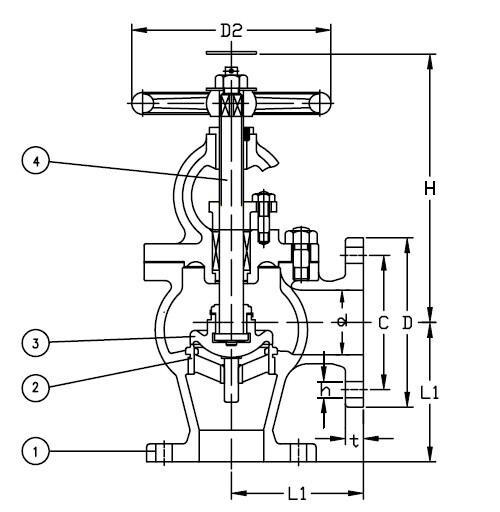

Main Size List(mm):
| IMPA CODE | DN | L1 | D | C | No of bolt hole | h | t | H | D2 | Weight(kgs) |
| 750421 | 50 | 120 | 155 | 120 | 4 | 19 | 16 | 240 | 160 | 16.3 |
| 750422 | 65 | 130 | 175 | 140 | 4 | 19 | 18 | 260 | 200 | 23 |
| 750423 | 80 | 140 | 185 | 150 | 8 | 19 | 18 | 265 | 200 | 25.3 |
| 750424 | 100 | 160 | 210 | 175 | 8 | 19 | 18 | 300 | 250 | 37 |
| 750425 | 125 | 180 | 250 | 210 | 8 | 23 | 20 | 350 | 280 | 57.1 |
| 750426 | 150 | 205 | 280 | 240 | 8 | 23 | 22 | 400 | 315 | 77.2 |
| 750427 | 200 | 230 | 330 | 290 | 12 | 23 | 22 | 480 | 355 | 116 |
| 750428 | 250 | 290 | 400 | 355 | 12 | 25 | 24 | 535 | 400 | 188 |
| 750429 | 300 | 320 | 445 | 400 | 16 | 25 | 24 | 610 | 450 | 256 |
