Marine Cast Steel Angle Valve JIS F7314 20K

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

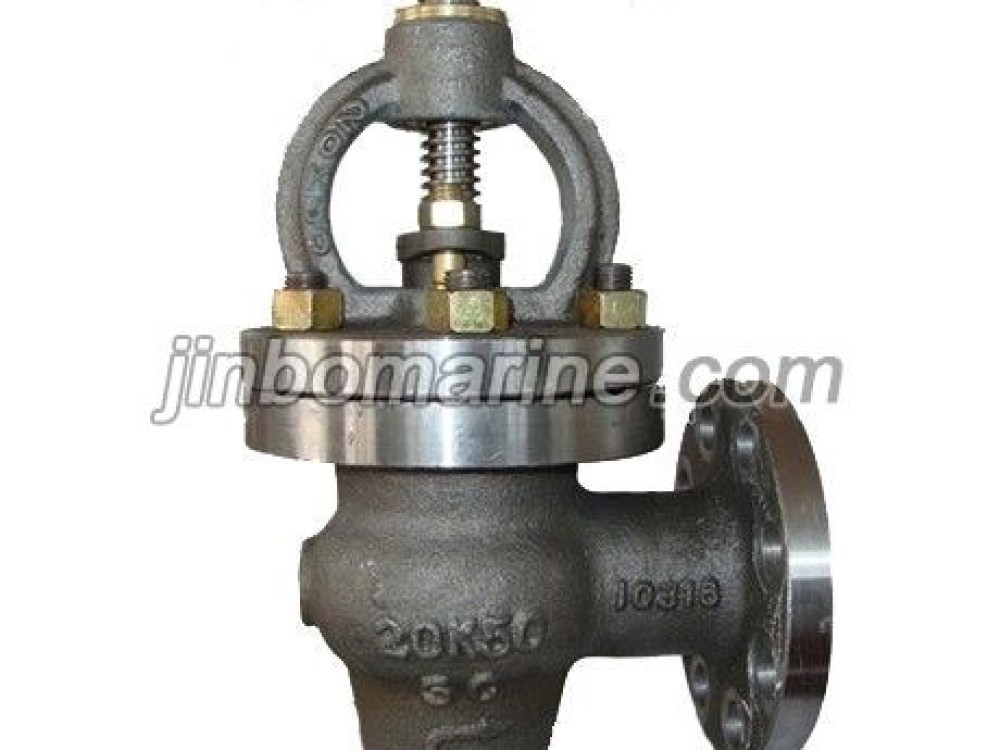

China Marine Cast Steel Angle Valve JIS F7314 20K:

It is suitable for the pipe system with the medium fresh water, air & other gas, oil and steam with the temperature not over 300 centigrade degree.

Design Standard: JIS F7314-1996

Test Standard: JIS 7400-1996

Hydraulic Test Pressure: Body-5.1Mpa, Seat-3.74Mpa

Flange size as per JIS B2220 -20K

Main Material:

1-Body:Cast Steel (SC480)

2-Seat: Bronze (BC6) or Stainless Steel (2Cr13, SCS2)

3-Disc: Bronze (BC6) or Stainless Steel (2Cr13, SCS2)

4-Stem: C3771BD (Brass) or SUS403

5-Bonnet: Cast Steel (SC480)

6-Handwheel: Cast Iron (FC200)

7-Packing Gland: Bronze (BC6) or Stainless Steel (2Cr13)

8-Gasket: non-asbestos

Main Size List(mm):

IMPA CODE
Size

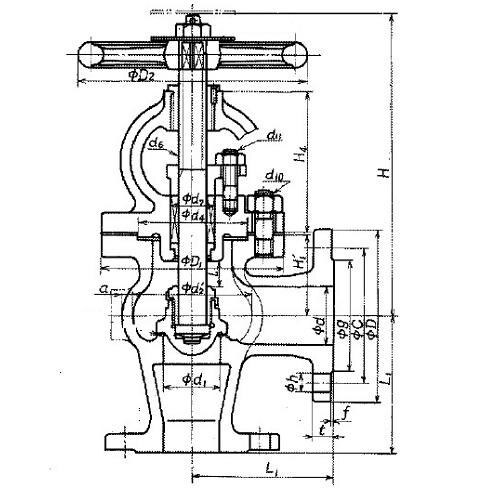

L1 D C No of Bolt Hole h t H D2 Weight(kgs)
750441
32
100 135 100 4 19 18 270 160 13
750442 40 1110 140 105 4 19 18 290 160 15.2
750443 50 125 155 120 8 19 18 305 200 20
750444 65 135 175 140 8 19 20 345 224 26.9
750445 80 150 200 160 8 23 22 385 250 38.9
750446 100 170 225 185 8 23 24 440 280 54.4
750447 125 200 270 225 8 25 26 500 315 80.7
750448 150 225 305 260 12 25 28 550 355 112.3
750449 200 280 350 305 12 25 30 630 450 183
750450 250 310 430 380 132 27 34 725 560 285.9
