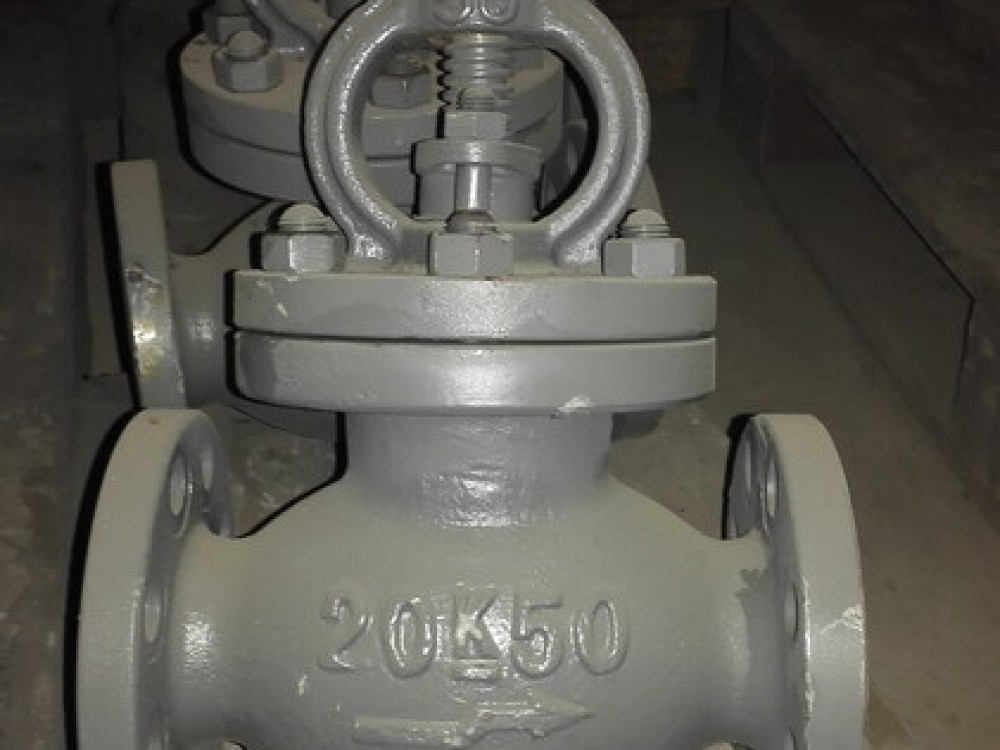

Marine Cast Steel Screw Down Check Globe Valve JIS F7473 20K

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Marine Cast Steel Screw Down Check Globe Valve JIS F7473 20K:

Design Standard: JIS F7473-1996

Test Standard: JIS 7400-1996

Hydraulic Test Pressure: Body- 5.00Mpa, Seat-3.67Mpa

Flange size as per JIS B2220 - 20K

Main Material:

Body: Cast Steel (SC480)

Bonnet: Cast Steel (SC480)

Packing Gland: Bronze (BC6) or Stainless Steel (2Cr13)

Stem: C3771BD (Brass) or SUS403

Seat: Bronze (BC6) or Stainless Steel (2Cr13, SCS2)

Disc: Bronze (BC6) or Stainless Steel (2Cr13, SCS2)

Gasket: non-asbestos

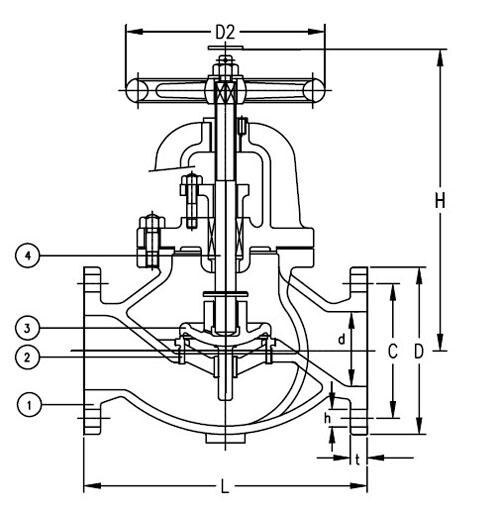

Main Size List(mm):

IMPA CODE Size L D C No of Bolt Hole h t H D2 Weight(kgs)
751231 32 190 135 100 4 19 18 270 160 14.4
751232 40 200 140 105 4 19 18 190 160 16
751233 50 230 155 120 8 19 18 305 200 21.6
751234 65 270 175 140 8 19 20 345 224 30.4
751235 80 300 200 160 8 23 22 385 250 43.5
751236 100 350 225 182 8 23 24 440 280 62.3
751237 125 430 270 225 8 25 26 500 315 94.8
751238 150 500 305 260 12 25 28 550 355 132
750439 200 560 350 305 12 25 30 630 450 204
750440 250 660 430 380 12 27 34 725 560 336
