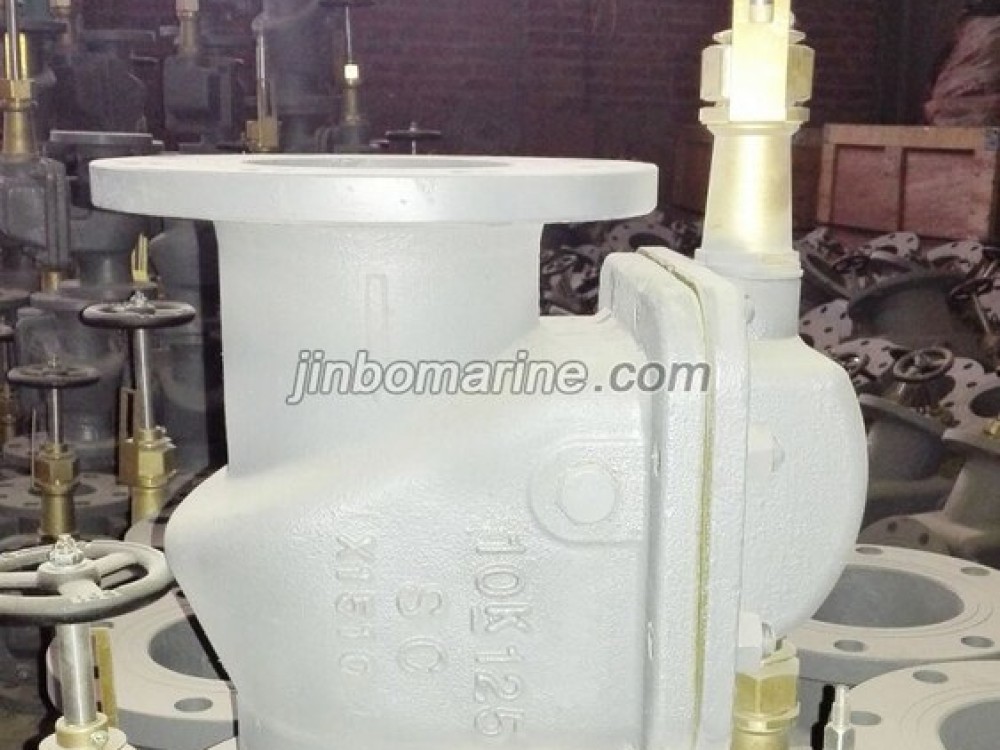

Marine Cast Steel Storm Valve JIS F3060 10K

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Marine Cast Steel Storm Valve JIS F3060 10K:

Design Standard: JIS F3060-1996

Test Standard: JIS 7400-1996

Flange size as per JIS B2220 - 10K

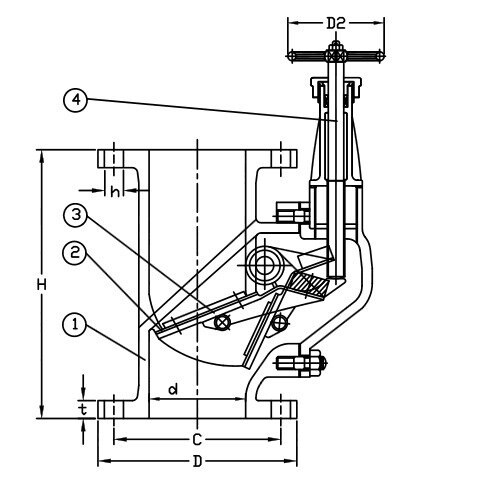

Main Material:

1-Body: Cast Steel (SC480)

2-Seat: Rubber(NBR)

3-Disc: Bronze (BC6)

4-Stem: Stainless Steel (SUS403)

Main Size List(mm):

DN

L

D

C

No.

h

t

D2

50

210

155

120

4

19

20

100

65

240

175

140

4

19

22

100

80

260

185

150

8

19

22

125

100

280

210

175

8

19

24

125

125

330

250

210

8

19

24

125

150

360

280

240

8

23

26

125
