Marine Center Pivoted Double Flanged Butterfly Valve with Worm Gear
- Category:GB Marine Butterfly Valve
- Material:Cast Iron, Cast Steel, Bronze
- Standards:GB/T3036-1994
- Certificate:CCS, BV, ABS, DNV/GL, NK, IRS, RMRS, KR,LR
- Packing Details:Plywood Case
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

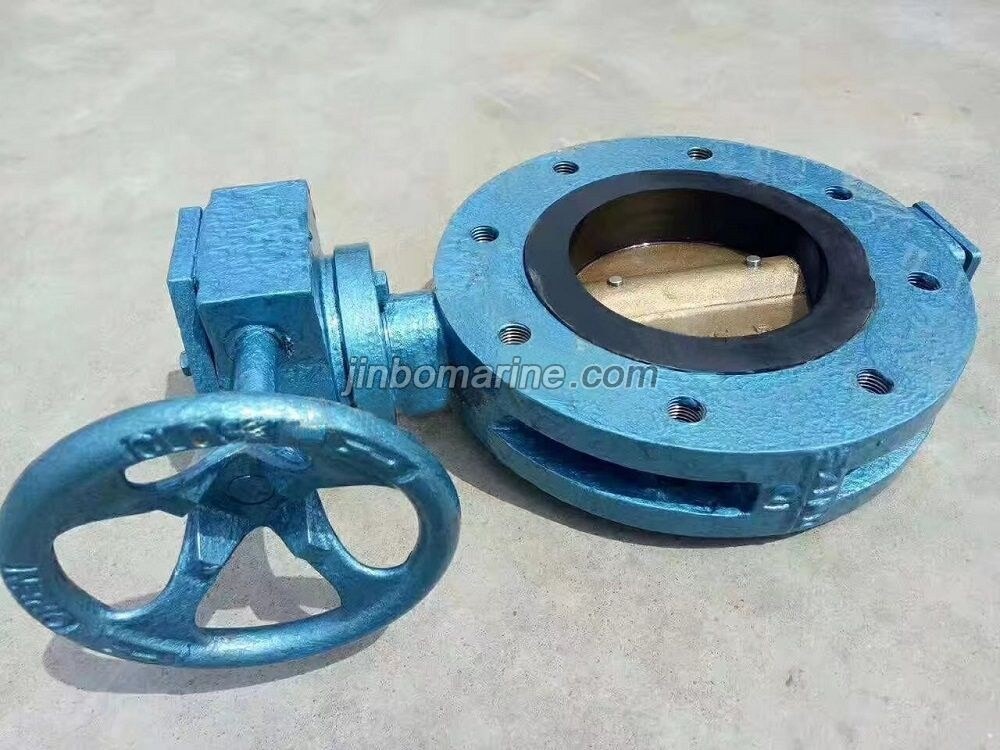

China Marine Center Pivoted Double Flanged Butterfly Valve with Worm Gear:
Marine Center Pivoted Double Flanged Worm Manual Butterfly Valve is operated by worm gear, and connected by flanges, used to adjust the flow rate, open and close the pipe system in the marine pipe system.
Technical Specification:
Design Standard: GB/T3036-1994 Type C/CS
Test Standard: GB600
Applicable Medium: sea water, fresh water, air, crude/refined oil (t≤70℃)
Main Material:
1-Body: Cast Iron, Ductile Iron, Cast Steel, Bronze, Aluminum Alloy
2-Disc: WCB with galv, Stainless Steel, Bronze
3-Pin: Stainless Steel
4-Seat: NBR, EPDM,CR,FPM,VITION,PTFE
5-Stem: Stainless Steel
Main Size:
Nominal Pressure Mpa |
Norminal diameter |

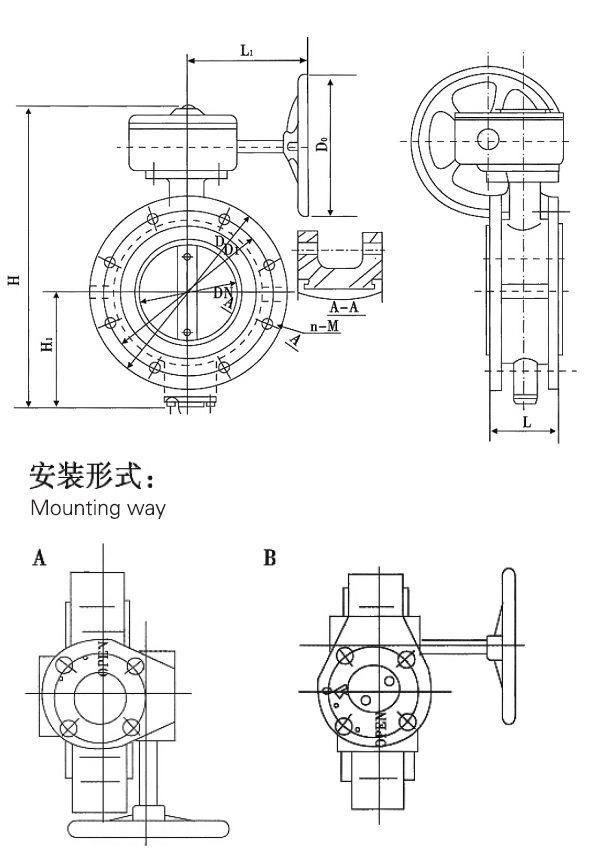

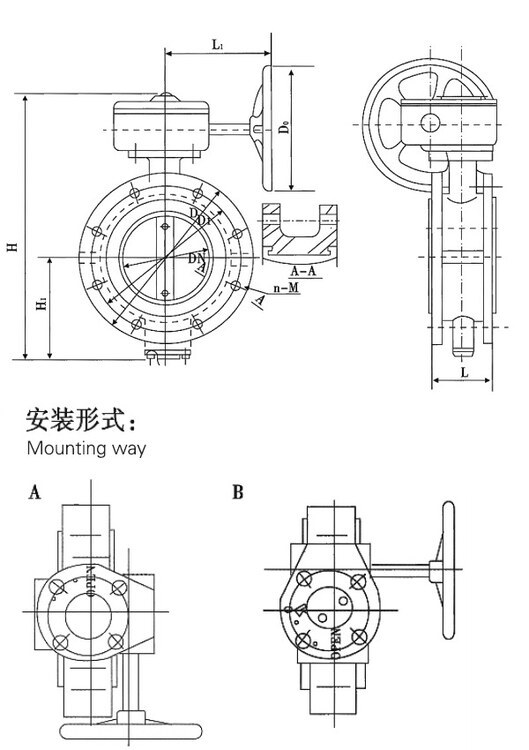

Structure& Flange Dimension (ISO) | |||||||||
H | H1 | L1 | D0 | L | D | D1 | D2 | n | d | ||
1.0 | 50 | 280 | 80 | 160 | 160 | 108 | 165 | 125 | 102 | 4 | 18 |
65 | 295 | 90 | 160 | 160 | 112 | 185 | 145 | 122 | 4 | 18 | |
80 | 340 | 120 | 160 | 160 | 114 | 200 | 160 | 133 | 8 | 18 | |
100 | 360 | 130 | 160 | 160 | 127 | 220 | 180 | 158 | 8 | 18 | |
125 | 395 | 150 | 160 | 160 | 140 | 250 | 210 | 184 | 8 | 18 | |
150 | 430 | 165 | 180 | 220 | 140 | 285 | 240 | 212 | 8 | 22 | |
200 | 485 | 195 | 180 | 220 | 152 | 340 | 295 | 268 | 8 | 22 | |
250 | 570 | 225 | 210 | 300 | 165 | 395 | 350 | 320 | 12 | 22 | |
300 | 630 | 250 | 210 | 300 | 178 | 445 | 400 | 370 | 12 | 22 | |
350 | 730 | 280 | 275 | 380 | 190 | 505 | 460 | 430 | 16 | 22 | |
400 | 800 | 310 | 275 | 380 | 216 | 565 | 515 | 482 | 16 | 26 |
