Marine Chemical Cleaning Tank

Request a Quote Not what you need, please send your RFQs via Email.

Details

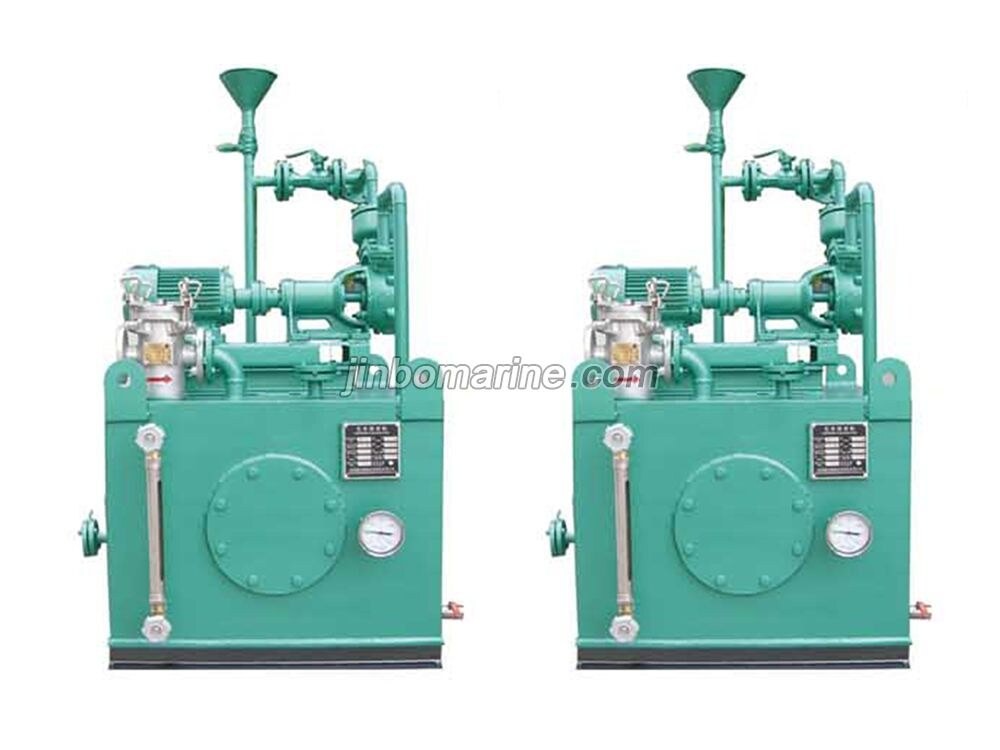

Marine Chemical Cleaning Tank:

The chemical cleaning tank can be used to cleaning for air cooler of ships and drilling platforms. It is the essential equipment of chemical cleaning system of air cooler

The unit is compact structure and easy operation; all exterior interfaces can be set according to cabin-room pipeline request.

System Composition And Working Principle

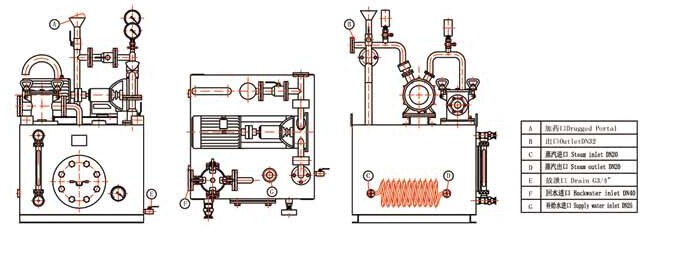

The unit is composed of public base, tank body, Circulation pump, inhalant filter, steam heating coil, thermometer, pressure gauge, pressure gauge valve, liquidometer, electric control box, valve and pipeline etc.

The detergent are plunged into the chemical cleaning tank, exhausting sundries by the filter, cleaning liquid is pressurized to send into the air-cooler by the circulation pump, remove sundries and filth in the air-cooler.

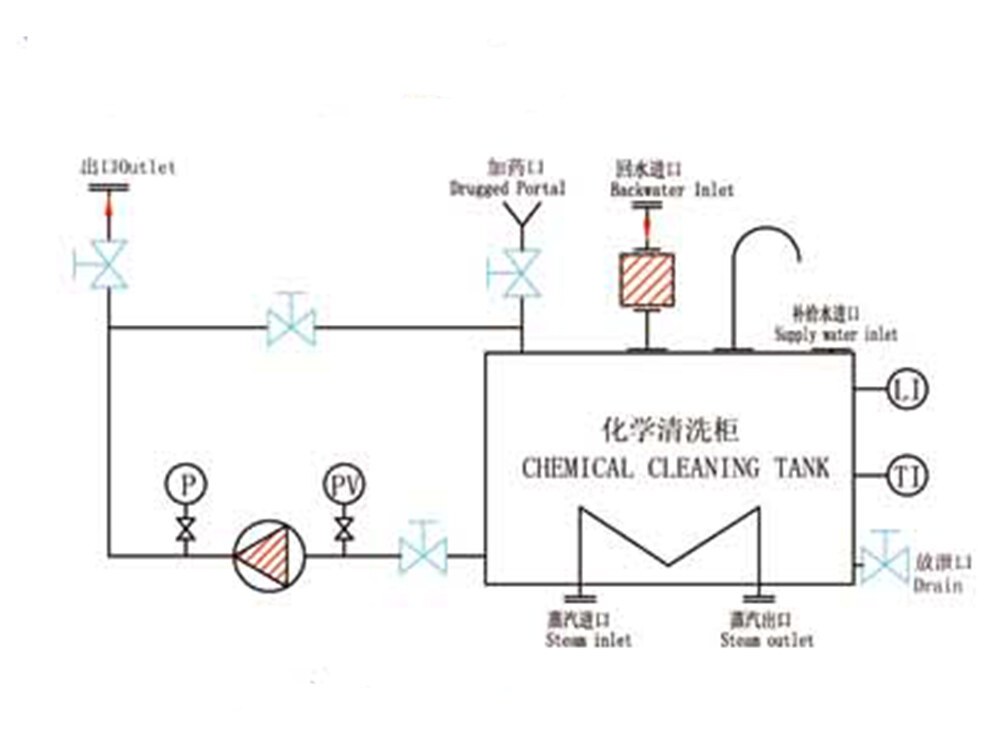

Principle:

Technical Data:

Type Volume
(m3)
Circulation pump Outline Dimension
L×B×H(mm)
CHCT-0.3 0.3 2m3/h、0.3MPa 760×760×1300
CHCT-0.6 0.6 1000×760×1650
