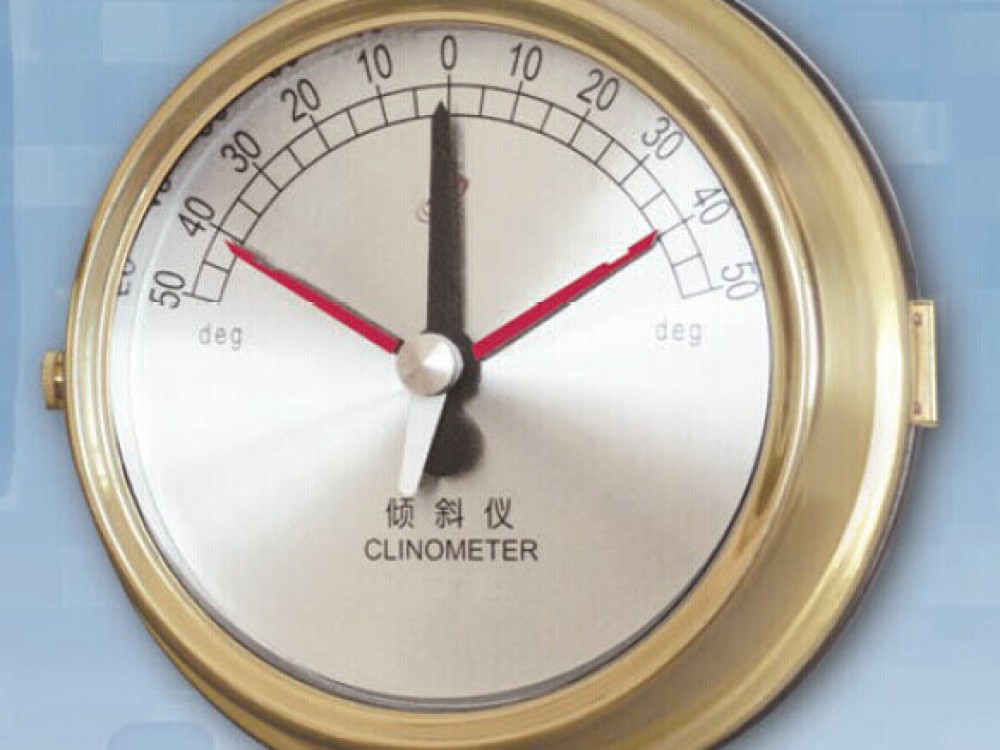

Marine Clock Clinometer with Three Pointers

The core of marine clock clinometer is made of metal material. All parts are with anti-corrosion treatment. The product is used to meansure the instantaneous inclination of the hull. It is with accuarge recording, reliable operation, convenient use etc. It is the essential intrument for the ships, marine and fishery department.

1.Division Value: 2.5° or 1°

2.Measurement Range: 50° on the left and the right

3.Indication Error: ±0.5°

4.Size: Diamter 208/228*60mm, showing surface: 150/170mm

5. Working Temeperature: -10℃～50℃

6. Avoid the violent shock.

7. Material: Brass
