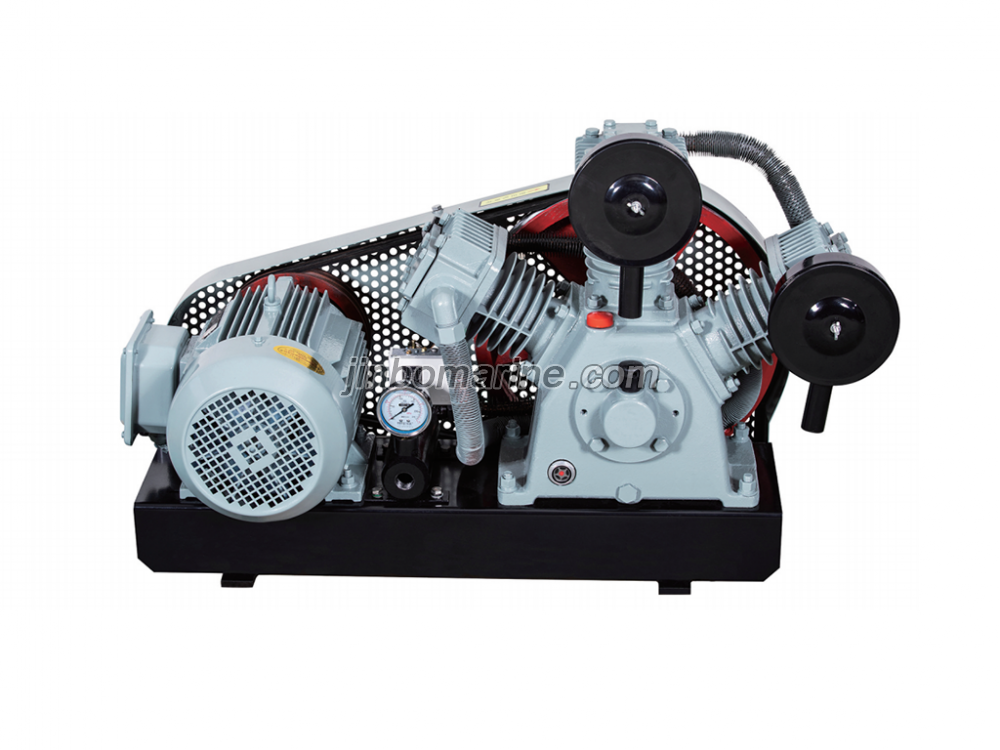

Marine CW-10/10F Marine Low Pressure Air Cooled Air Compressor

Request a Quote Not what you need, please send your RFQs via Email.

Details

Description:

Marine low pressure air compressor

1. It adopts two-stage compression, small volume and low noise;

2. Automatic control, high and low pressure automatic start and stop, automatic unloading and sewage discharge;

3. Obtain the factory type approval of classification society and provide the certification certificate of classification society;

4. Customized according to customer requirements;

5. The quality is stable and reliable, and the maintenance of spare parts is simple and cheap. It has been exported to many countries, suitable for fishing boats, seagoing ships and other deck air compressor equipment

No. Model Volume flow m3/min Exhaust pressure MPa Power kW Frequency HZ Rated speed r/min Weight kg L x W x H mm
1 CW-10/10F 10 1 2.2 50/60 750 85 890x400x450
2 CW-15/10F 15 1 3 50/60 1100 85 890x400x450
