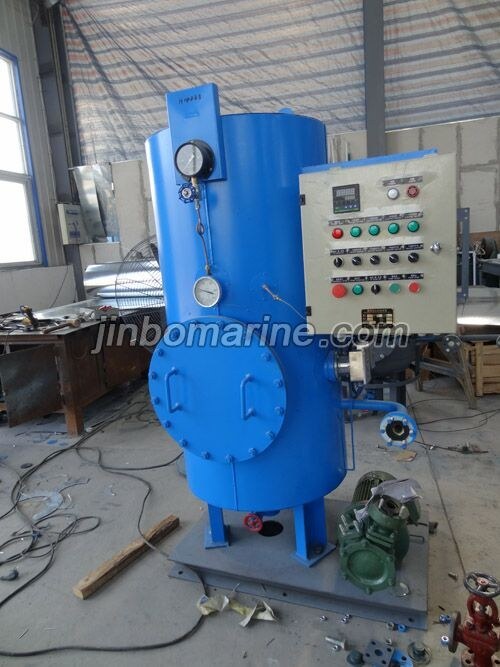

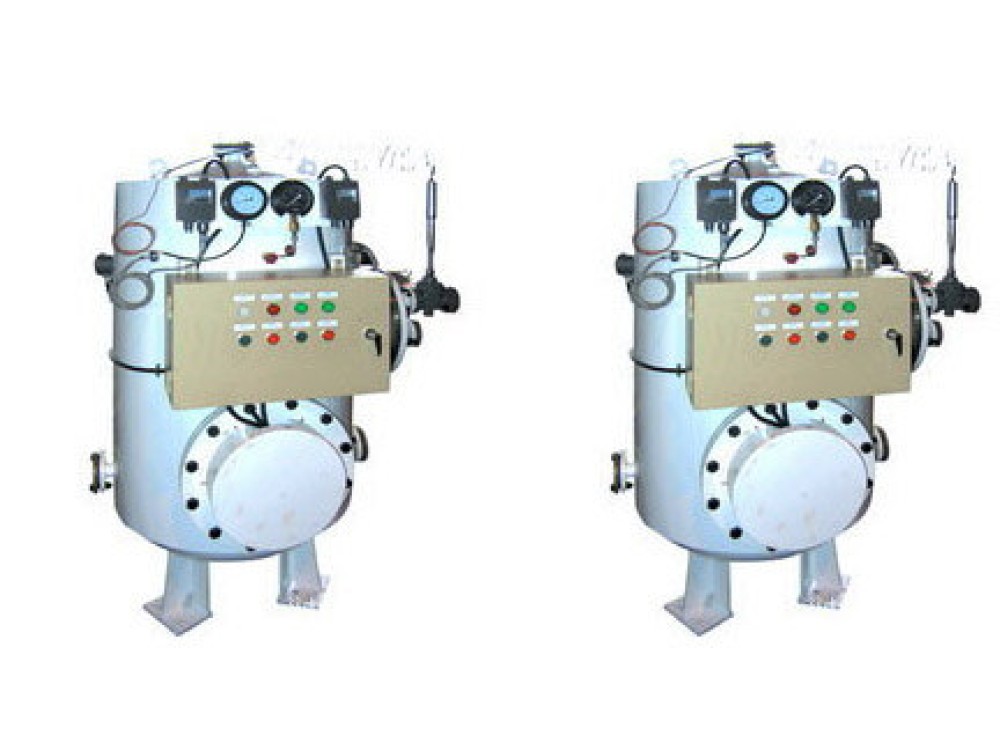

Marine Hot Water Heater

  • Category:Marine Calorifier
  • Certificate:CCS,GL,BV etc.
  • Material:Carbon Steel, SS304
  • Packing Details:Standard Export Packaging
  • Delivery Time:15-20days
  • Supply Ability:10 sets/month
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.

Details

Product Description:

The hot water heater, which use the waste hot water from boiler or mian engine to heat the fresh water for the people on the veesel, drinking or washing.

The heating source is come from boiler or main engine.

Working Principle:

This series hot water tank can be combined to use with fresh water pressure tank on board, that is to use fresh water in fresh water pressure tank to replenish this tank, and then heated by electric for usage of entire vessel.

Main Technical Parameters

Model

DRG-

0.12

0.2

0.3

0.5

1.0

Capacity(m3)

0.12

0.2

0.3

0.5

1.0

Working pressure(MPa)

0.4(60℃)

Design pressure(MPa)

0.44

Test pressure(MPa)

0.66

Safety valve open pressure(MPa)

0.42

Water inlet temperature(℃)

15

Water outlet temperature(℃)

65

Working temperature(℃)

0~65

Design temperature(℃)

80

Heated water capacity(kg/h)

180

360

540

720

900

Electrical heating power(kW)

12

24

36

48

60

The thickness of the external thermal layer(mm)

40

The thickness of outer galvanized sheet steel(mm)

0.7

Electricity

AC380、50Hz、3φ/AC440V、60Hz、3φ
