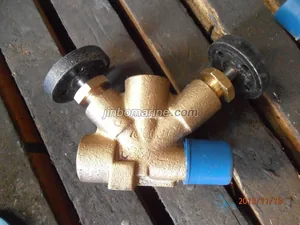

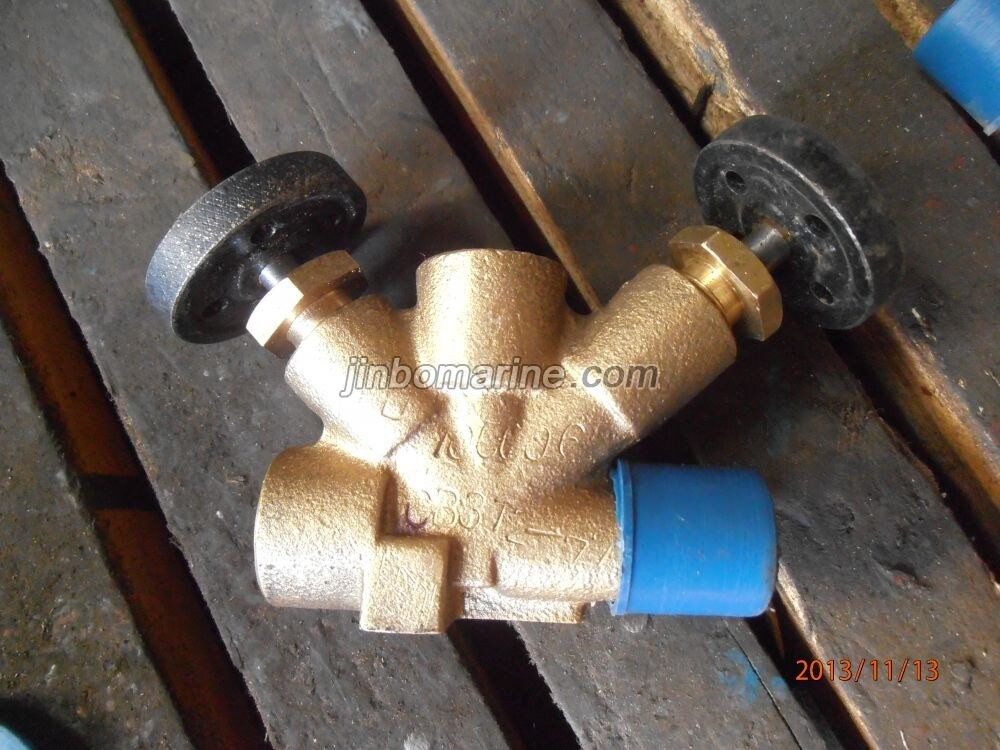

Marine Pressure Gauge Valve CB312-75 Type B
- Category:CB Marine Pressure Gauge Valve
- Material:Bronze or Stainless Steel
- Standards:CB312-75
- Certificate:CCS, BV, ABS, GL,LR,DNV, KR, IRS, RINA
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Marine Pressure Gauge Valve CB312-75 Type B:
Marine Pressure Gauge Valve is used with the pressure gauge together in the marine pipe system.

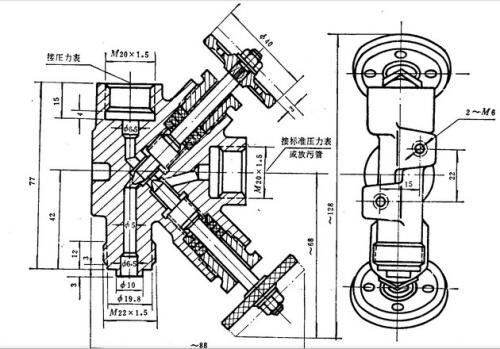

Design Standard: CB312-75
Thread Standard: CB56-83
Test Standard: GB600
| Type | Name | Nominal Pressure(Kg/cm2) | Nominal Size(mm) | Applicable Medium |
| A | Brass Pressure Gauge Cock | 40 | 6 | water,steam,fuel oil,lubricatoin oil & steam not over 250℃ |
| B | Bronze Pressure Gauge Valve | 100 | ||
| Stainless Steel Pressure Gauge Valve | 160 | fresh water,air,carbon dioxide,fuel oil,lubricatoin oil & steam not over 400℃ |
Main Parts & Material:
Body-Bronze or Stainless Steel
Stem-Stainless Steel
Core-Bronze
