Marine Bronze Screw Down Check Angle Valve JIS F7410 16K
- Category:JIS Marine Angle Valve
- Material:Bronze, Brass
- Standards:JIS F7410
- Certificate:CCS,BV,GL,NK,RINA,ABS,DNV,LR
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Marine Bronze Screw Down Check Angle Valve JIS F7410 16K:
Design Standard: JIS F7410-1996
Test Standard: JIS 7400-1996
Hydraulic Test Pressure: Body- 3.3Mpa, Seat-2.42Mpa~0.4Mpa
Flange size as per JIS B2220 - 16K

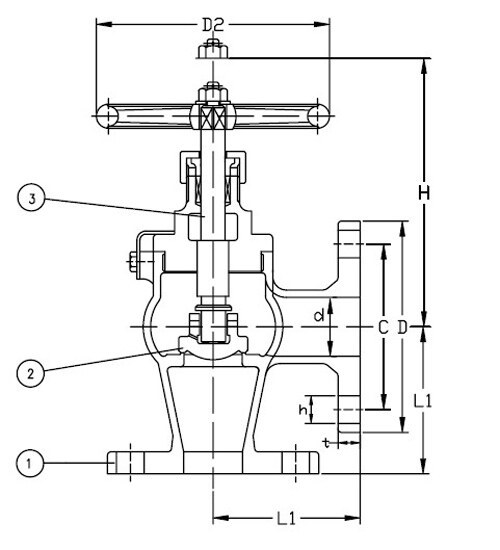

Main Material:
1- Body: Bronze (BC6) /Brass
2- Disc: Bronze (BC6) /Brass
3- Stem: Brass (C3771BD)
4- Bonnet: Bronze (BC6) /Brass
Main Size List(mm):
| IMPA CODE | Size | L | D | C | No. of Bolt | h | t | H | D2 |
| 751081 | 15 | 70 | 95 | 70 | 4 | 15 | 12 | 120 | 80 |
| 751082 | 20 | 75 | 100 | 75 | 4 | 15 | 14 | 125 | 100 |
| 751083 | 25 | 85 | 125 | 90 | 4 | 15 | 14 | 140 | 125 |
| 751084 | 32 | 95 | 135 | 100 | 4 | 15 | 16 | 145 | 125 |
| 751085 | 40 | 100 | 140 | 105 | 4 | 19 | 16 | 160 | 140 |
