Marine Steam Pressure Reducing Valve Group
- Category:CB Marine Pressure Reducing Valve
- Material:Cast Steel, Bronze
- Standards:GB/T1852-1993
- Certificate:CCS, BV, ABS, GL, LR, DNV, NK,RINA, KR,IRS
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

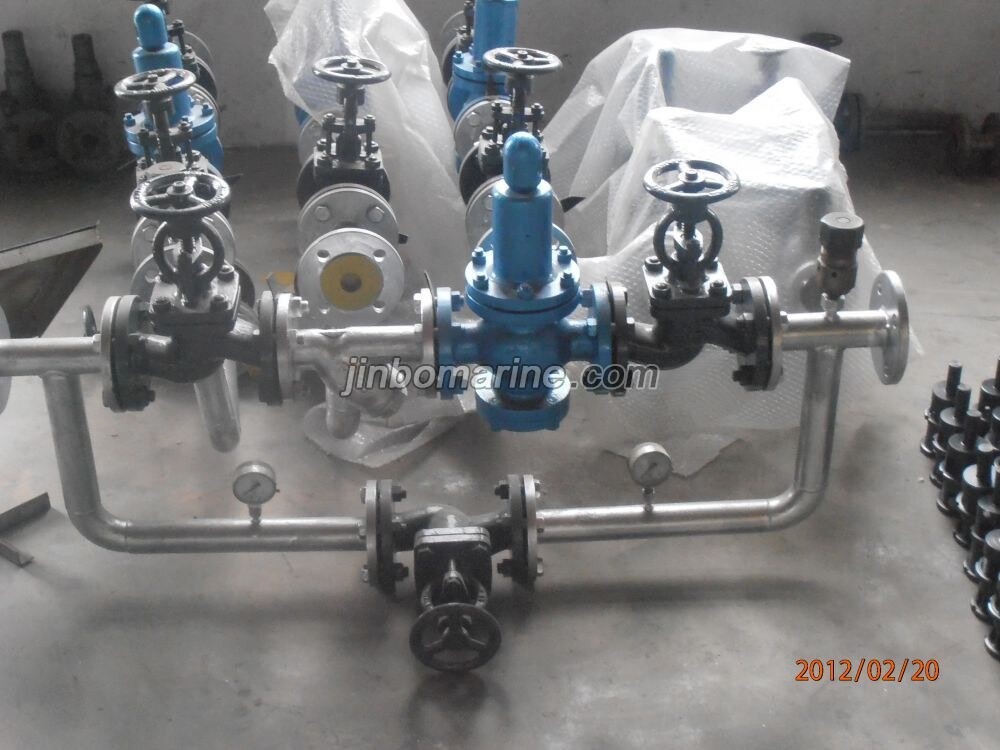

China Marine Steam Pressure Reducing Valve Group:
Marine Steam Pressure Reducing Valve Unit is used for marine steam system.The Max.working pressure is 2.5 MPa. The mating dimensions of the flanges according to ISO2084-1974 or JIS B2220-1990 or GB569-65, or GB2506-89.
Material: Bronze, Cast Steel

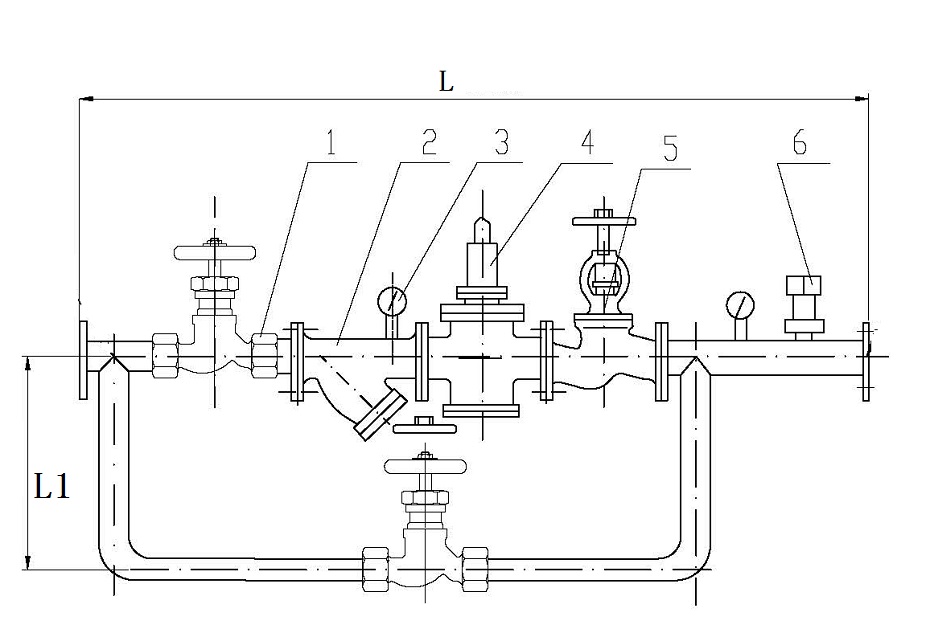

Main Parts:
1-Pressure Gauge
2-Globe Valve
3-Y Strainer
4-Air Pressure Reducing Valve
5-Air Signal Safety Valve
Main Specification:
| Size(mm) | Inlet Pressure(Mpa) | Outlet Pressure(Mpa) | Length(mm) | |
| L | L1 | |||
| DN15 | 3.0-0.4 | 02~0.6,0.6~1.2 | 1040 | 150 |
| DN20 | 1140 | 200 | ||
| DN25 | 1185 | 200 | ||
| DN32 | 1310 | 260 | ||
| DN40 | 1380 | 260 | ||
| DN50 | 1590 | 310 | ||
| DN65 | 1740 | 310 | ||
