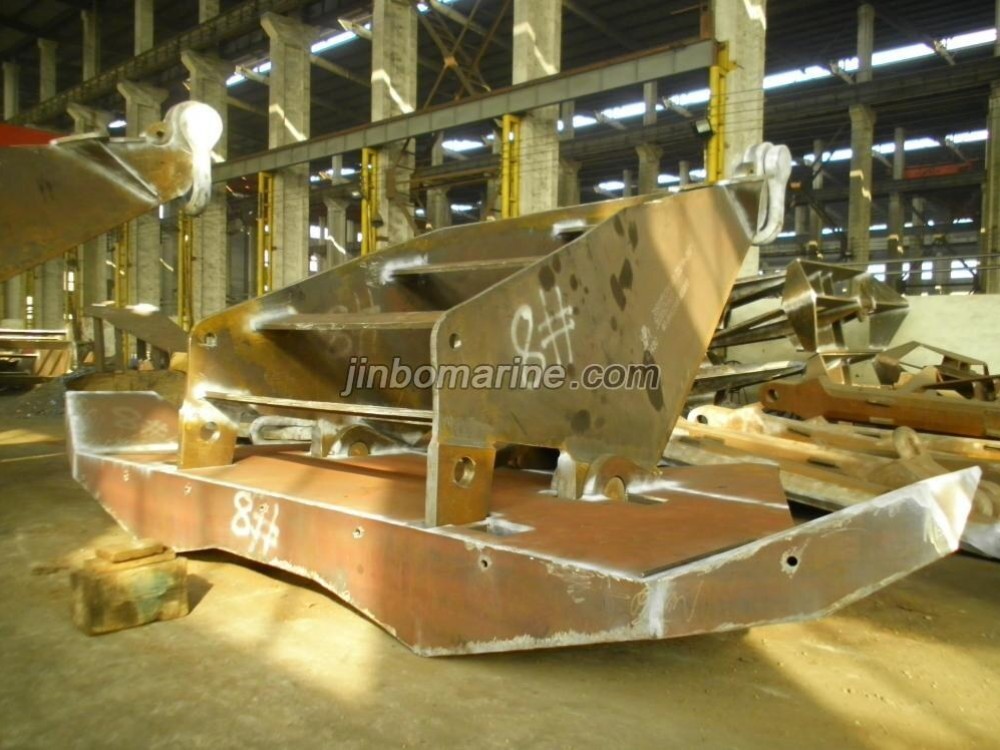

MK5 Anchor
- Category:Drag Anchor
- Material:High Grade Steel Plate, DH36, Q345B, Q345C
- Certificate:LR, ABS,BV, GL, RINA, DNV, NK, KR, CCS
- Fob Price:Get Latest Price Now
- Place of Origin:China
- Attachment:[pdf]Mk5 Anchor Assembly Methods.pdf
Request a Quote
Not what you need, please send your RFQs via Email.
Details

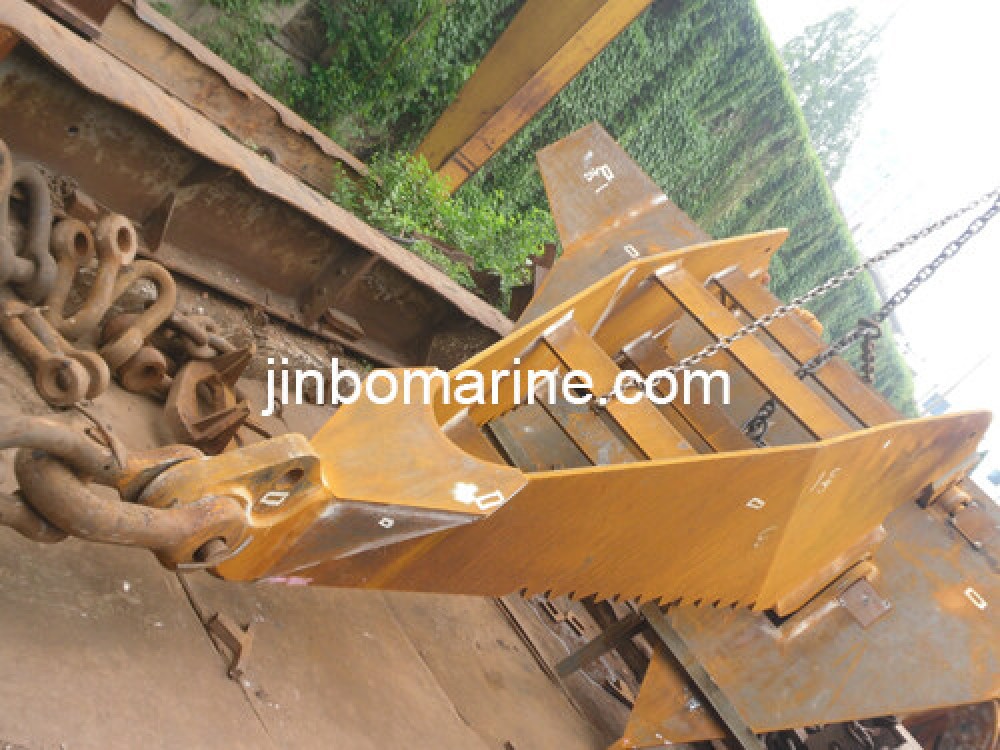

China MK5 Anchor:
MK5 anchor is a deep penetrating anchor with a plough shaped shank, with higher holding capacity and easier handing.
This anchor has a good performance in sand and hard clay, medium clay and very soft clay.
Advantages of WS MK5 Anchor
- Easy handing
- Easy Install
- Easy Retrieve
- Uplift Capacity
- This anchor is used for semi-submersible rigs or permanent installation
Main Specification:
Weight: 1500kgs-65000kgs
Certificate: LR, ABS,BV, GL, RINA, DNV, NK, KR, CCS
High Holding Capacity

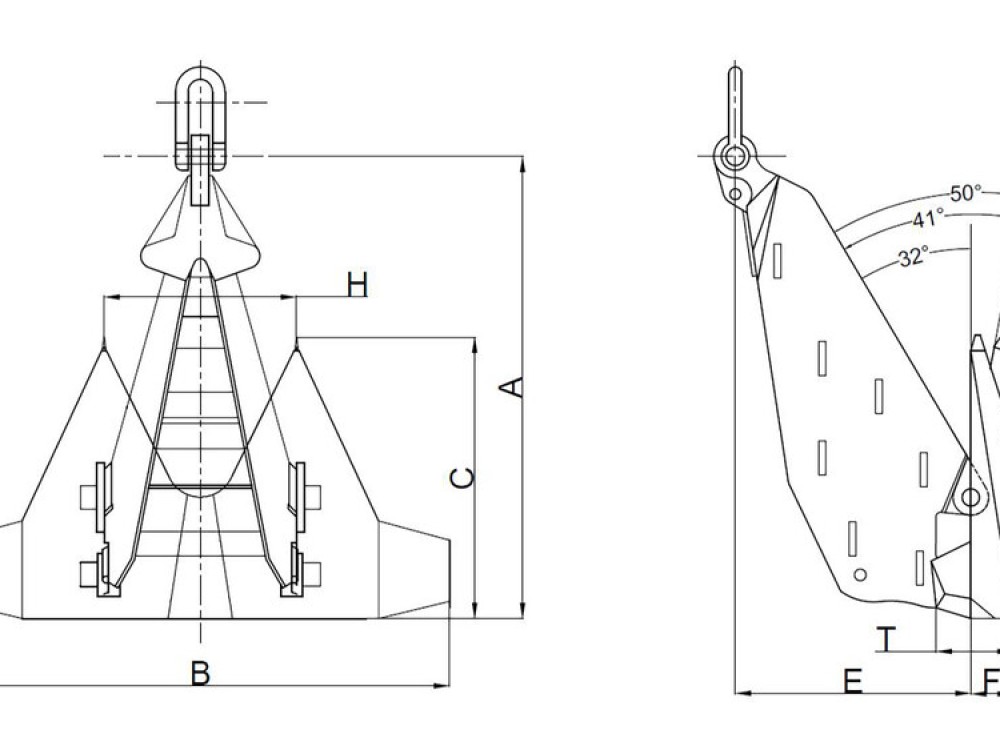

Size Table
Weight | A | B | C | E | F | H | T | S |
1500 | 2954 | 3184 | 1812 | 1505 | 271 | 1230 | 493 | 80 |
3000 | 3721 | 401 | 2283 | 1896 | 342 | 1550 | 622 | 90 |
5000 | 4412 | 4756 | 2707 | 2248 | 406 | 1837 | 738 | 110 |
8000 | 5161 | 5563 | 3166 | 2629 | 474 | 2149 | 862 | 130 |
10000 | 5559 | 5992 | 3410 | 2832 | 511 | 2315 | 929 | 140 |
12000 | 5908 | 636 | 3624 | 3010 | 543 | 2460 | 988 | 150 |
15000 | 6364 | 6860 | 3904 | 3242 | 585 | 2650 | 1064 | 170 |
18000 | 6763 | 7290 | 4149 | 3446 | 622 | 2816 | 1131 | 180 |
20000 | 7004 | 7550 | 4297 | 3569 | 644 | 2917 | 1171 | 190 |
22000 | 7230 | 7794 | 4436 | 3684 | 665 | 3011 | 1209 | 200 |
25000 | 7545 | 8133 | 4629 | 3844 | 694 | 3142 | 1262 | 200 |
30000 | 8018 | 8643 | 4919 | 4085 | 737 | 3339 | 1341 | 220 |
65000 | 10375 | 11184 | 6365 | 5286 | 954 | 4321 | 1736 | 300 |
Transporation Size
Anchor | Fluke | Shank | B | C | D | H | T | U | V | W |
1500 | 600 | 900 | 3184 | 1812 | 2367 | 1232 | 494 | 3294 | 1221 | 984 |
3000 | 1300 | 1700 | 3999 | 2283 | 2969 | 1538 | 623 | 4141 | 1526 | 1240 |
5000 | 2100 | 2900 | 4750 | 2707 | 3529 | 1831 | 739 | 4913 | 1817 | 1470 |
8000 | 3400 | 4600 | 5550 | 3166 | 4122 | 2140 | 864 | 5747 | 2120 | 1719 |
10000 | 4300 | 5700 | 5980 | 3411 | 4442 | 2301 | 930 | 6190 | 2285 | 1852 |
12000 | 5200 | 6800 | 6348 | 3625 | 4714 | 2443 | 989 | 6578 | 2522 | 1968 |
15000 | 6400 | 8600 | 6848 | 3904 | 5087 | 2808 | 1132 | 7533 | 2783 | 2253 |
18000 | 7700 | 10300 | 7278 | 4149 | 5407 | 2808 | 1132 | 7533 | 2783 | 2253 |
20000 | 8600 | 11400 | 7547 | 4297 | 5609 | 2920 | 1172 | 7806 | 2891 | 2334 |
22000 | 9400 | 12600 | 7799 | 4436 | 5799 | 3016 | 1210 | 8060 | 2994 | 2409 |
25000 | 10700 | 14300 | 8123 | 4629 | 6035 | 3135 | 1263 | 8406 | 3108 | 2514 |
30000 | 12900 | 7100 | 8650 | 4919 | 6431 | 3345 | 1342 | 8936 | 3321 | 2671 |
65000 | 27900 | 37100 | 11193 | 6365 | 8322 | 4328 | 1737 | 11563 | 47297 | 3456 |

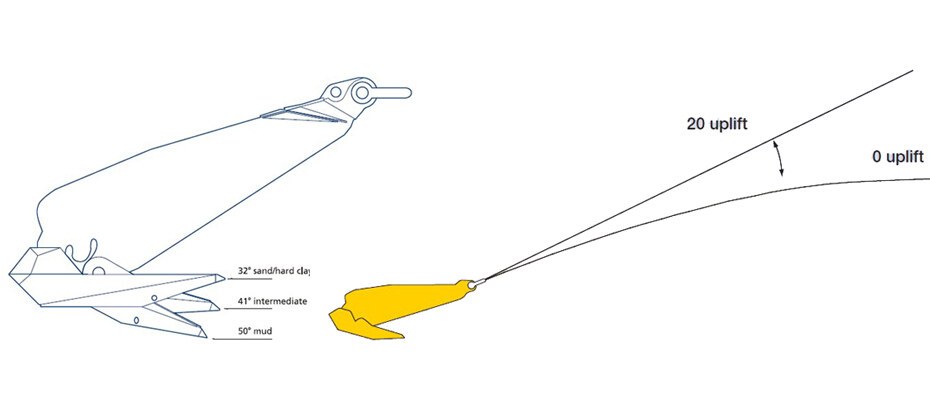

MK5 Anchor Easy Handling

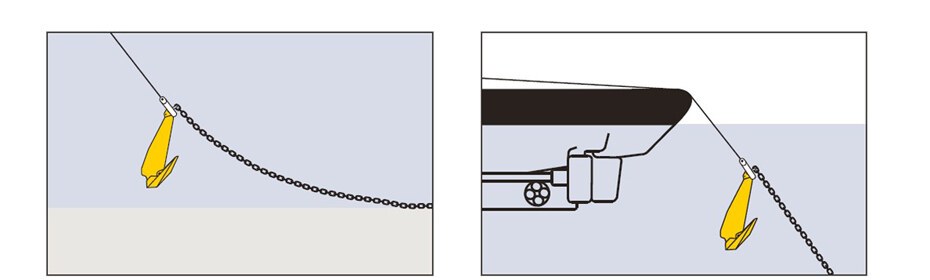

MK5 Anchor Installation

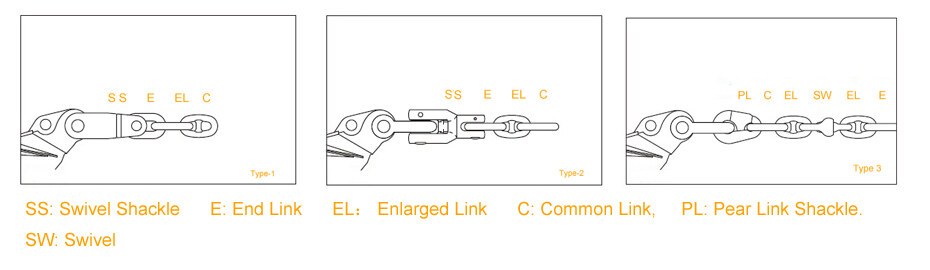

How to connect MK5 Anchor and Chain
