Mobile Pumping Station
- Category:Other Marine Pump
- Material:Cast iron pump cast, Bronze impeller, Stainless steel pump shaft
- Standards:standard
- Packing Details:Standard Packing
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details

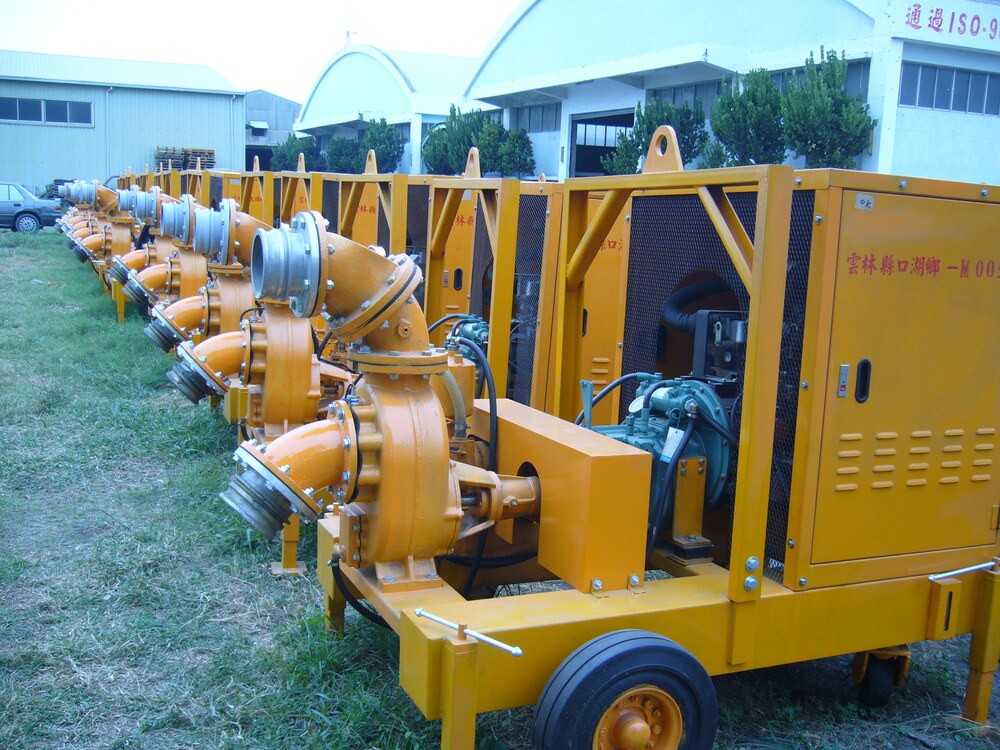

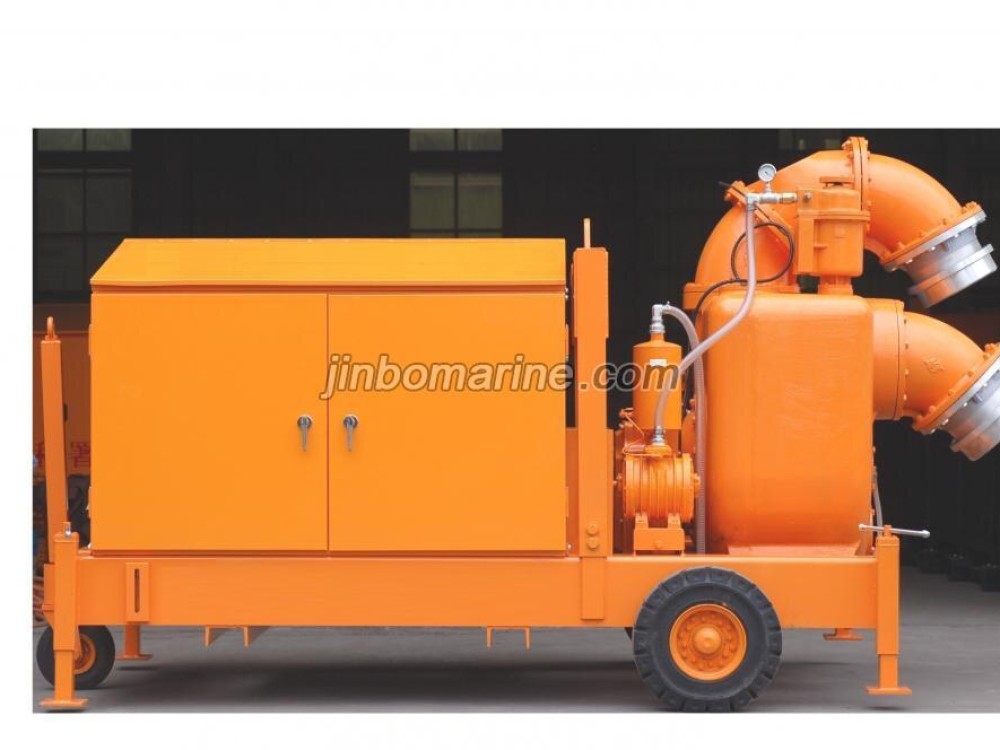

Mobile pumping station
The Mobile pumping station is driven by diesel engine directly through the gear transmission gear to achieve emergency pumping operation. The Non-block type impeller together with the vacuum pump design to form the convenient, self-priming, non-block emergency pumping station. With the help of the vacuum pump to self-priming the water to achieve the rapid and effective water pumping operation.
Usage:
City - the city flood control and waterlogging drainage, emergency repair drainage, water supply and drainage with no power supply.
Water conservancy, flood control and drought relief, emergency rescue.
Industry, feed water system, cooling circulatory system, emergency drainage
Military - field water collection system of water supply and drainage system, island
Agriculture, irrigation and drainage systems, cofferdam pumping, temporary diversion, fixed pump station and power supply and drainage.
Advantage:
Each mobile pumping station is simple installation, high effective, practical.
parameter
|
Model |
YVA-150 |
YVA-200 |
YVA-250 |
YVA-300 |
YVA-400 |
YVA-500 |
|
Dimension mm |
2000*1000*1500 |
2500*1200*1600 |
3000*1300*1800 |
3000*1400*1900 |
3200*1500*2000 |
3400*1500*2000 |
|
Net Weight kg |
800 |
2000 |
2500 |
3000kg |
3500 |
3800 |
|
Production |
45 |
45 |
45 |
45 |
45 |
45 |
|
Motor power |
26.25KW |
41.25KW |
52.5KW |
82.5KW |
100.5KW |
112.5KW |
|
Starting |
Battery |
Battery |
Battery |
Battery |
Battery |
Battery |
|
Tank capacity |
150L |
200L |
200L |
300L |
400L |
500L |
|
Consumption |
8.1L/H |
12L/H |
16.2L/H |
21L/H |
33L/H |
|
|
Pump type |
Self-priming |
Self-priming |
Self-priming |
Self-priming |
Self-priming |
Self-priming |
|
In/out mm |
150 |
200 |
250 |
300 |
400 |
500 |
|
Rated capacity |
252m 3 /h |
504m 3 /h |
792m 3 /h |
1080m 3 /h |
1800m 3 /h |
3600m 3 /h |
|
Rated Head m |
10 |
10 |
11 |
10 |
8 |
8 |
|
Rated speed |
1500RPM |
1500RPM |
1500RPM |
1000RPM |
600RPM |
600RPM |
|
Particle size |
25mm |
45mm |
60mm |
75mm |
80mm |
100mm |
|
Vacuum pump |
SAP-1 |
SAP-1 |
SAP-1 |
SAP-1 |
SAP-2 |
SAP-2 |
|
Displacement |
700 l/m |
700 l/m |
700 l/m |
700 l/m |
1000 l/m |
1000 l/m |
|
Out diam |
1” |
1” |
1” |
1” |
1.5” |
1.5” |
|
Speed |
400RPM |
400RPM |
400RPM |
400RPM |
400RPM |
400RPM |
