MONO Screw Stripping and Bilge Pump
- Category:Screw Pump
- Material:Cast steel pump case, Stainless stain pump shaft
- Standards:standard
- Certificate:CCS，Rina，ABS, BV, GL,
- Packing Details:Standard Packing
- Fob Price:Get Latest Price Now
- Place of Origin:China
- Attachment:[pdf]G Series Mono Screw Pump.pdf
Request a Quote
Not what you need, please send your RFQs via Email.
Details

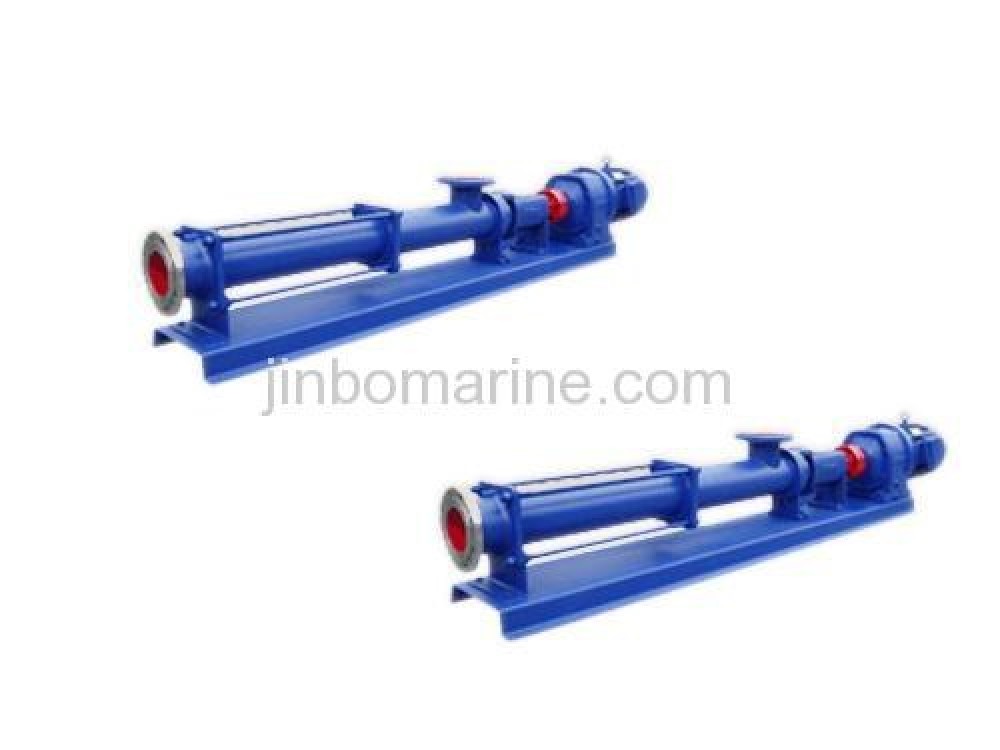

G Series MONO Screw Stripping and Bilge Pump
G type single-screw pump can be used for transmission of neutral or corrosive liquid, clean liquid, contain gas or bubbles in the liquid, high viscosity and low viscosity liquid, including liquid containing fiber content and solid material.
Used for conveying residue, stripping, and sewage, sea water, etc

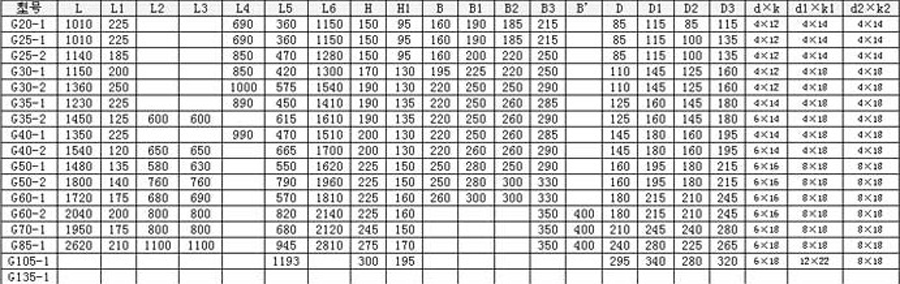

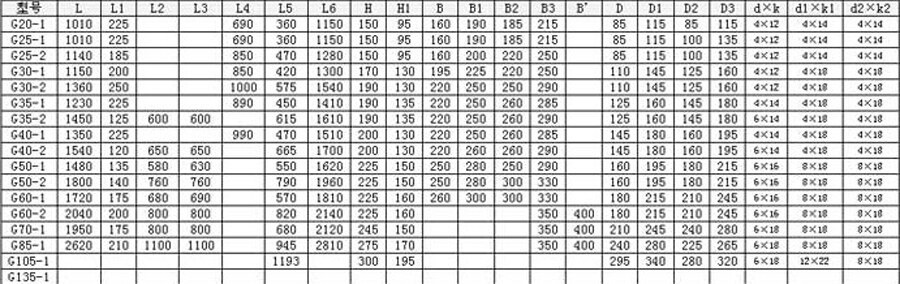

Installation Drawing
Main Specification
| Type | Speed | Capacity | Pressure | Motor Power | Head | Inlet | Outlet |
| (r/min) | (m3/h) | (Mpa) | (Kw) | (m) | (mm) | (mm) | |
| G20-1 | 960 | 0.8 | 0.6 | 0.75 | 60 | Dy25 | Dy25 |
| G25-1 | 960 | 2 | 0.6 | 1.5 | 60 | Dy32 | Dy25 |
| G25-2 | 960 | 2 | 1.2 | 2.2 | 120 | Dy32 | Dy25 |
| G30-1 | 960 | 5 | 0.6 | 2.2 | 60 | Dy50 | Dy40 |
| G30-2 | 960 | 5 | 1.2 | 3 | 120 | Dy50 | Dy40 |
| G35-1 | 960 | 8 | 0.6 | 3 | 60 | Dy65 | Dy50 |
| G35-2 | 960 | 8 | 1.2 | 4 | 120 | Dy65 | Dy50 |
| G40-1 | 960 | 12 | 0.6 | 4 | 60 | Dy80 | Dy65 |
| G40-2 | 960 | 12 | 1.2 | 5.5 | 120 | Dy80 | Dy65 |
| G50-1 | 960 | 20 | 0.6 | 5.5 | 60 | Dy100 | Dy80 |
| G50-2 | 960 | 20 | 1.2 | 7.5 | 120 | Dy100 | Dy80 |
| G60-1 | 960 | 30 | 0.6 | 11 | 60 | Dy125 | Dy100 |
| G60-2 | 960 | 30 | 1.2 | 15 | 120 | Dy125 | Dy100 |
| G70-1 | 720 | 45 | 0.6 | 11 | 60 | Dy150 | Dy125 |
| G70-2 | 720 | 45 | 1.2 | 18.5 | 120 | Dy150 | Dy125 |
| G85-1 | 720 | 65 | 0.6 | 15 | 60 | Dy150 | Dy150 |
| G105-1 | 500 | 100 | 0.6 | 22 | 60 | Dy200 | Dy200 |
| G135-1 | 400 | 150 | 0.6 | 37 | 60 | Dy200 | Dy250 |
