Nodular Iron Gate Valve for Oil Tanker CB/T3591-94

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

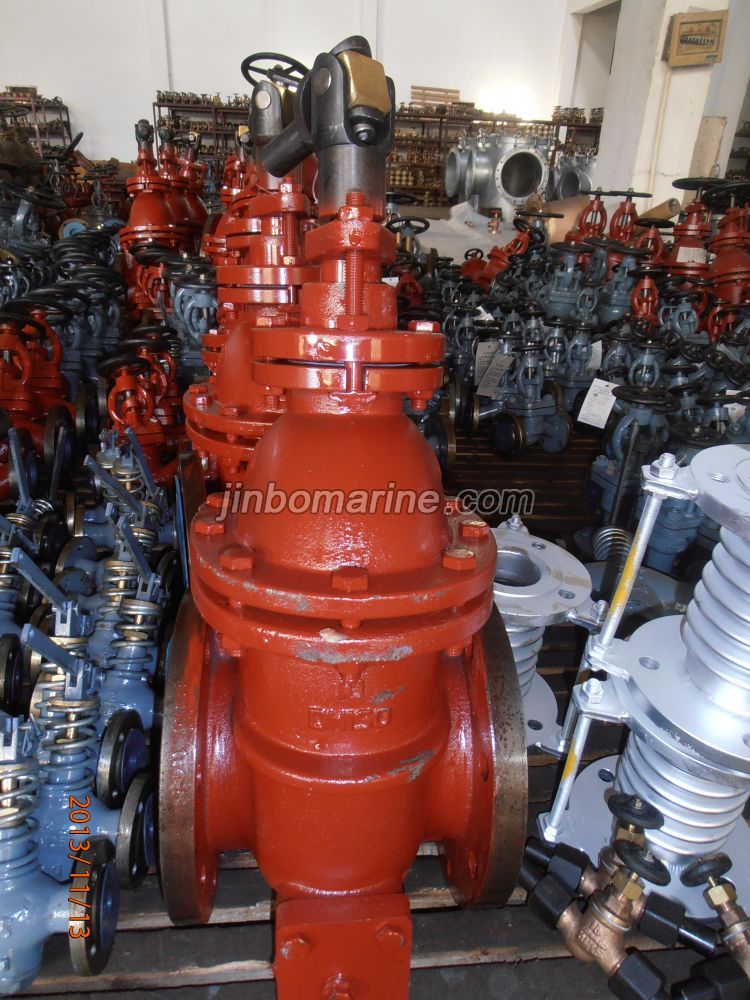

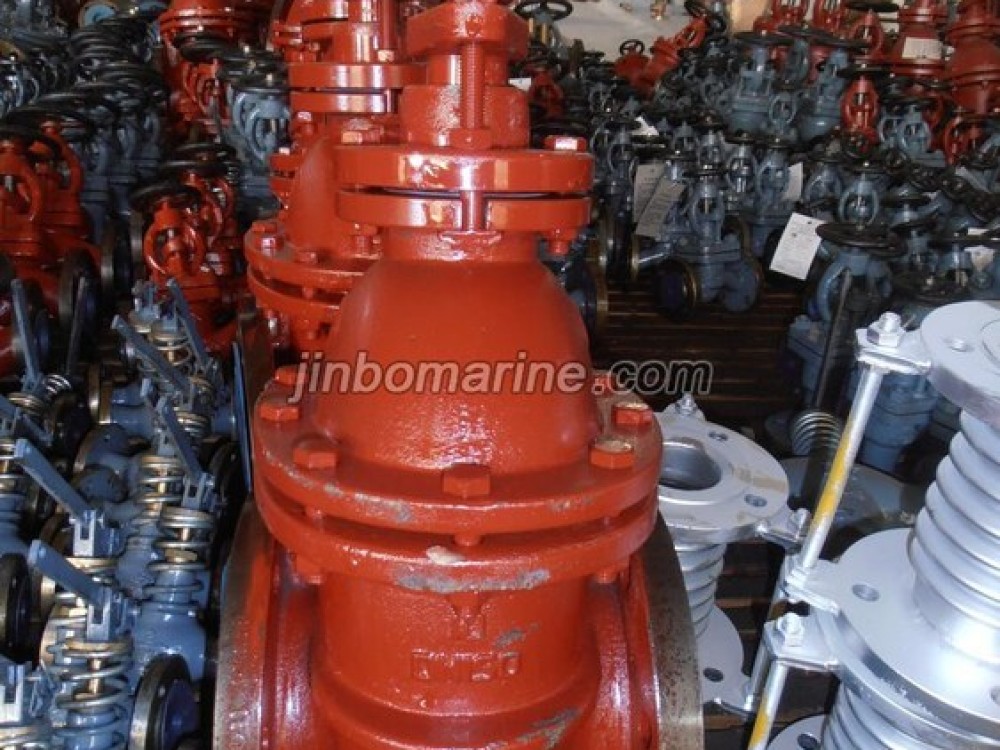

China Nodular Iron Gate Valve for Oil Tanker CB/T3591-94:

Nodular Iron gate valve CB/T3591 is used on the fuel transfer system or stripping system for oil tanker, with the medium crude oil, product oil, sea water & fresh water.

Design Standard:CB/T3591-94

Test Standard: GB600

Flange size as per GB569 or GB2501

Type Nominal pressure (Mpa) Nominal diameter (mm) Applicable medium
A,AS,B,BS 1.0 80~400 crude oil, product oil, sea water & fresh water

A/AS-with hand wheel, suitable for deck and pump room

B/BS-without hand wheel,suitable for oil tank

Main Parts & Material:

Body-Nodular iron

Bonnet-Nodular iron

Disc-Cast steel

Stem-Bronze

Nut-Bronze

Seal Ring-Stainless Steel

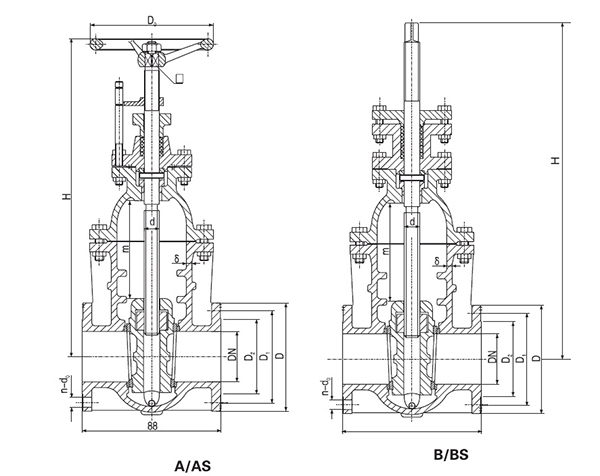

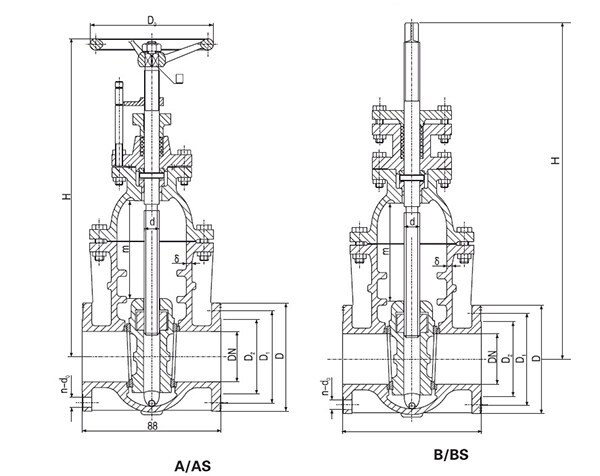

Main Size List(mm):

For Type A,B:

nominal
diameter 		Structure Dimension Thickness
δ 		Flange Bolt stem hand
wheel
D0 		Lift Range m Weight
(kg)
L H
A B D D1 D2 d0 b Th. n个 d1 S A B
80 220 440 375 9 170 138 118 15 16 M14 8 Tr26×10(P5)LH 19 200 92 38.7 36.8
100 230 470 400 10 190 158 138 15 16 M14 8 Tr26×10(P5)LH 19 200 112 44.5 42.6
125 245 515 445 11 215 183 164 15 16 M14 10 Tr28×10(P5)LH 22 225 138 56.5 54.0
150 260 560 470 12 240 208 190 15 16 M14 12 Tr32×12(P6)LH 24 250 165 69.9 66.0
200 290 660 555 14 310 273 250 17 21 M16 12 Tr32×12(P6)LH 24 280 215 110.0 105.0
250 335 780 655 16 380 336 310 22 24 M20 14 Tr36×12(P6)LH 27 360 270 157.0 148.0
300 360 885 745 17 435 391 364 22 26 M20 16 Tr44×16(P8)LH 32 400 320 231.0 222.0
350 400 990 850 18 485 441 414 22 26 M20 18 Tr44×16(P8)LH 32 450 370 318.0 306.0
400 450 1100 960 19 545 496 466 26 28 M24 18 Tr50×16(P8)LH 36 500 420 370.0 355.0

For Type AS,BS:

nominal
diameter 		Structure Dimension Thickness
δ 		Flange Bolt stem hand
wheel
D0 		Lift Range m Weight
(kg)
L H
AS BS D D1 D2 d0 b Th. n个 d1 S AS BS
80 203 440 375 9 200 160 133 18 22 M16 8 Tr26×10(P5)LH 19 200 92 43.2 41.5
100 229 470 400 10 220 180 158 18 24 M16 8 Tr26×10(P5)LH 19 200 112 51.3 49.4
125 254 515 445 11 250 210 184 18 26 M16 10 Tr28×10(P5)LH 22 225 138 63.9 63.7
150 267 560 470 12 285 240 212 22 26 M20 12 Tr32×12(P6)LH 24 250 165 83.3 79.2
200 292 660 555 14 340 295 268 22 26 M20 12 Tr32×12(P6)LH 24 280 215 127.0 122.0
250 330 780 655 16 395 350 320 22 28 M20 14 Tr36×12(P6)LH 27 360 270 174.0 166.0
300 356 885 745 17 445 400 370 22 28 M20 16 Tr44×16(P8)LH 32 400 320 246.0 238.0
350 381 990 850 18 505 460 430 22 30 M20 18 Tr44×16(P8)LH 32 450 370 341.0 329.0
400 406 1100 960 19 565 515 482 26 20 M24 18 Tr50×16(P8)LH 36 500 420 407.0 392.0
