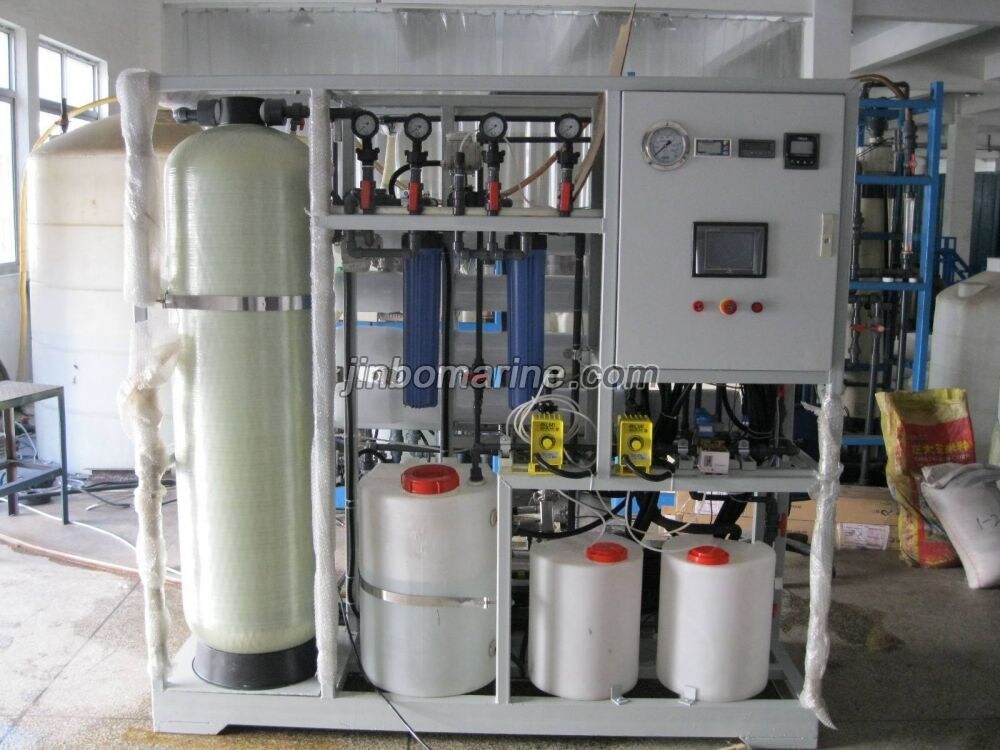

RO Water Purification System Reverse Osmosis System
- Category:Water Treatment Equipment
- Certificate:CCS
- Standards:WHO Fresh water standard
- Packing Details:Standard Export Packaging
- Delivery Time:20 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
Advantages:
1. Effectively remove organic salt,heavy metal ions, organic bacteria,germs and other harmful ingredients in sea water.
2. Use membrane components with world's best quality and stable property,safe and reliable.
3. Use sea water desalination special RO high-pressure pumps and high voltage protection device of international brands to ensure the safe operation of equipments.
4. Use automatic multi-way valves to achieve the automatic large-flow forward and reverse flushing.
5.Low energy consumption and low costs of water production.
6.Small size,light weight, small floor area,suitable for installation in the narrow space on ships.
7.Rack pipeline system is made up of imported stainless steel 316 and corrosion-resistant materials.
8.Simple operation,convenient utilization and maintenance, water supply after starting up.
9.No chemical added,directly for drinking, sweet and mellow.
Available Type:
|
Type |
JBB-FSHB-1.0 |
JBB-FSHB-2.0 |
JBB-FSHB-3.0 |
JBB-FSHB-5.0 |
|
|
Product Water Output (m3/d) |
1~1.5 |
2~3 |
3~4 |
5~6 |
|
|
Product Water Flow (L/h) |
50~60 |
100~130 |
150~180 |
200~250 |
|
|
Stabilize Salt Rejection (%) |
≥98 |
≥98 |
≥98 |
≥98 |
|
|
Product Water Concentration NaCl(mg/L) |
≤700 |
≤700 |
≤700 |
≤700 |
|
|
Operate Pressure (Mpa) |
4~6.5 |
4~6.5 |
4~6.5 |
4~6.5 |
|
|
Recovery (%) |
8~10 |
15~20 |
15~25 |
20~25 |
|
|
Power (kw) |
1.5 |
1.5 |
2.2 |
2.2 |
|
|
Operate Temperature (℃) |
5~40 |
5~40 |
5~40 |
5~40 |
|
|
Feed Water Flow (m3/h) |
1.1 |
1.1 |
0.6~1 |
1.5 |
|
|
Feed Water Pressure (MPa) |
0.1~0.3 |
0.1~0.3 |
0.1~0.3 |
0.1~0.3 |
|
|
Feed Water Temperature (℃) |
5~40 |
5~40 |
5~45 |
5~40 |
|
|
PH range |
Series run |
2~11 |
2~11 |
2~11 |
2~11 |
|
Short-term 30’rinse |
1~12 |
1~12 |
1~12 |
1~12 |
|
|
Rinse Trunk Cubage (L) |
7.5 |
7.5 |
11 |
12 |
|
|
Approx Weight (kg) |
110 |
120 |
140 |
140 |
|
|
Remark |
Product Water Flow is Product Water Output at qualification that is Feed Water Temperature in 25℃, Feed Water concentration NaCl in 35000mg/l, Operate Pressure in 5MPa. |
||||
