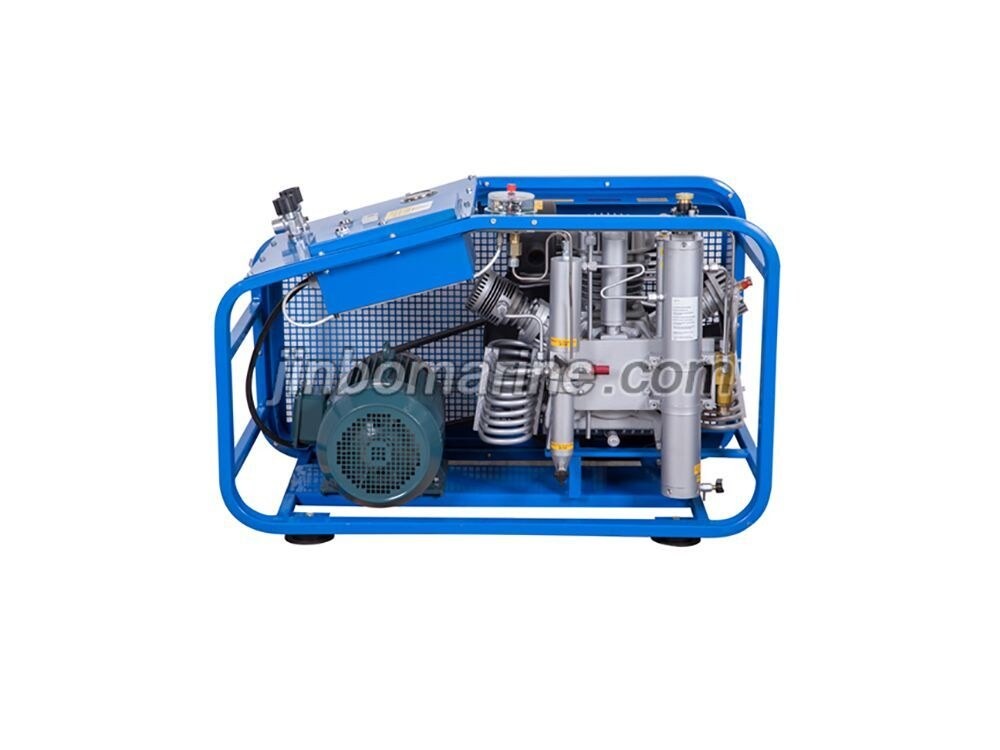

NRW18 High Pressure Air Cooled Diving Air Compressor

Medium: air

Ambient temperature :- 5~+50℃

Safety valve setting: 330 bar

Working Pressure: 330 bar

Capacity: 300 l/min

Number of Compression stages: 3

Number of Cylinders: 3

Drive: V-Belt

High pressure outlet: fitting 8S for pipe 8mm

Breathing air standard: EN12021

Product Certification: Exported EU CE certification, CCS, ISO 9001 quality system

Splash lubrication

Oil sump content: 1.8 L

Intake Filter

Air cooled after each stage

Intermediate oil/water separators after each stage (except 1st stage)

Final Oil/water separator

Safety valves after each stage

Final pressure safety valve

Pressure maintaining and check valve

Final pressure

Auto start

Auto stop
