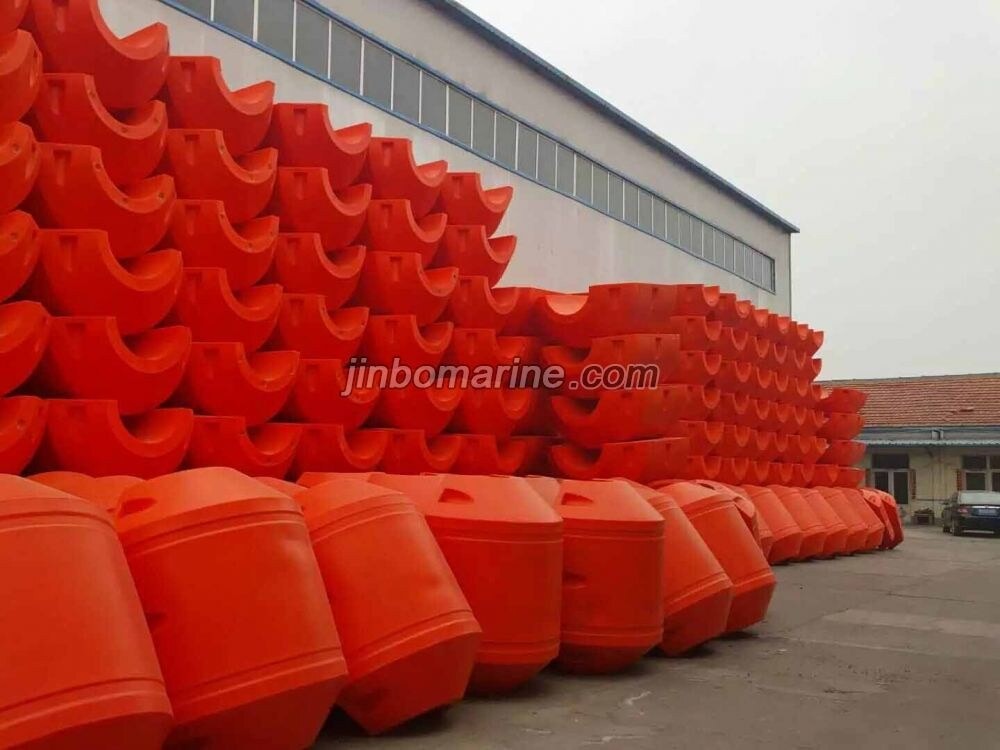

Pipeline Floater
- Category:Pipe Floater
- Material:MDPE
- Delivery Time:20 Days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Pipeline Floater:
Jinbo Marine floaters are made from the rotational molding by one time. Strong MDPE shell with the special foam filling inside and never absorb the sea water.
Advantage
JINBO Marine Floaters are very light and easy to be installed;
Flexible and difficult to be broke.
High buoyancy
Specification and size can be customized.
Flexible and difficult to be broke.
High buoyancy
Specification and size can be customized.
Dredging Floaters Specification:
| Pipe OD(mm) | Pipe ID(mm) | Floater OD(mm) | Floater Length(mm) | Thickless(mm) | Net Buoyance(kg) | Weight(kg) |
| 159 | 220 | 500 | 800 | 7 | 200 | 16 |
| 205 | 220 | 500 | 800 | 7 | 200 | 16 |
| 219 | 220 | 500 | 800 | 7 | 200 | 16 |
| 273 | 300 | 700 | 1100 | 7 | 420 | 43 |
| 300 | 300 | 700 | 1100 | 7 | 420 | 43 |
| 325 | 375 | 1100 | 8850 | 7 | 850 | 65 |
| 325 | 375 | 1100 | 1100 | 7 | 920 | 72 |
| 350 | 375 | 1100 | 1100 | 7 | 920 | 72 |
| 400 | 414 | 1100 | 1200 | 8 | 1020 | 76 |
| 426 | 430 | 1200 | 1200 | 8 | 1200 | 93 |
| 450 | 480 | 1300 | 1300 | 8 | 1500 | 116 |
| 500 | 580 | 1400 | 1500 | 9 | 2219 | 170 |
| 536 | 580 | 1400 | 1500 | 9 | 2219 | 170 |
| 60 | 630 | 1400 | 1700 | 11 | 2400 | 182 |
| 630 | 630 | 1400 | 1700 | 11 | 2400 | 182 |
| 650 | 680 | 1480 | 1800 | 11.5 | 2930 | 210 |
| 700 | 730 | 1600 | 1900 | 12 | 3593 | 230 |
| 750 | 780 | 1600 | 2000 | 13 | 3700 | 245 |
| 800 | 830 | 1800 | 2000 | 14 | 4800 | 310 |
| 850 | 880 | 1800 | 2200 | 15 | 5140 | 380 |
| 900 | 940 | 2200 | 2500 | 16 | 8180 | 420 |
Floater Structure
| No. | Name | Material |
| 1 | Polyethylene Shell | Polyethylene |
| 2 | Hard Polyurethane Foam Inner Core | Closed-cell Hard Polyureshane Foam |
| 3 | Connection Bolat | Steel |
Floater Performance
| Item | Shell Technical Index | Item | Inside Technical Index |
| Tensile Strength | >=13.1Mpa | Water Absorption | 1-2g/100cm2 |
| Break Elingation | >=11.1% | Breaking Strength | 0..08-0.1Mpa |
| Impact Strength | >=32.4KJ/m2 | Breaking Elingation | 0.1-0.24Mpa |
| Bending Strength | >=15.7Mpa | Compressive Strength | 10 |
|
Weather Resisatnce Floater allowable>=3.5GJ/m2 after aging engery |
Breaking Elongation %>= | 10 | |
| Oxidative Induction Time 200℃Cmm | 10 | ||
