Plug Type Anchor Releaser JIS F2025-1992
- Category:Anchor Releaser
- Material:Cast Steel
- Standards:JIS F2025-1992
- Certificate:mill certificate etc.
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

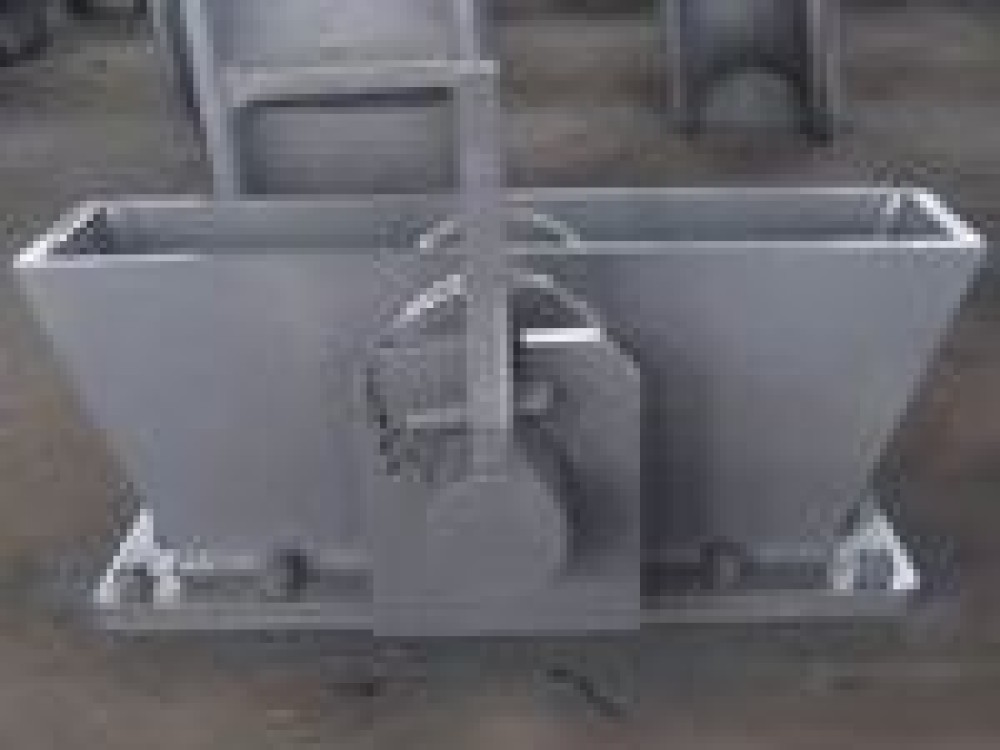

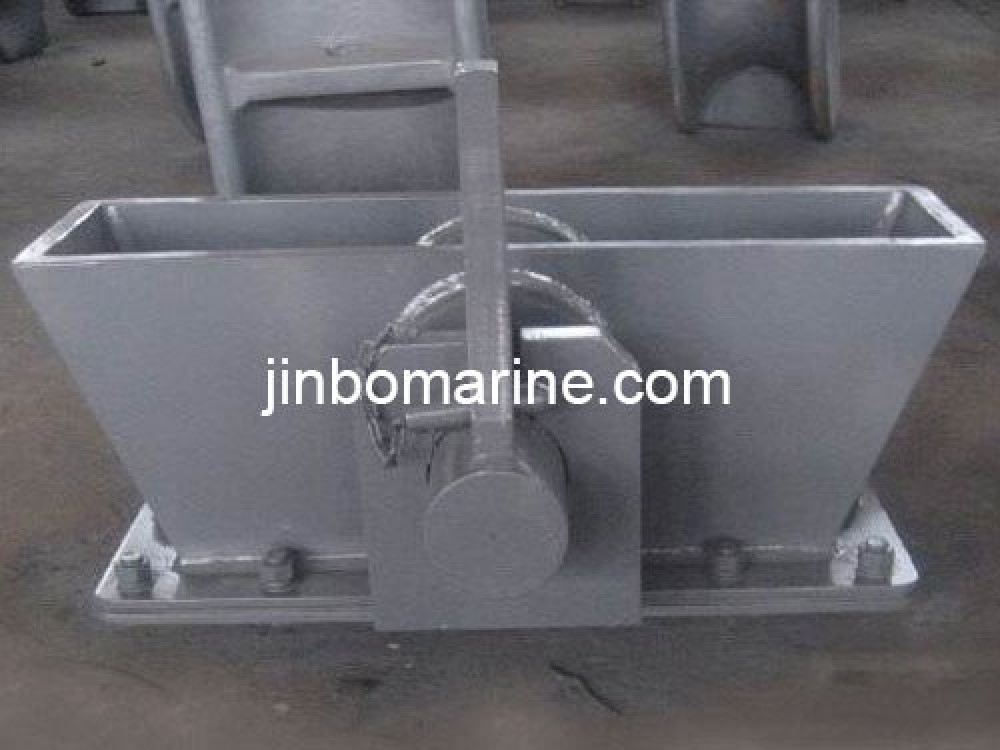

China Plug Type Anchor Releaser JIS F2025-1992:
Material:Casting Steel
Surface: polish
Smooth surface, elegant design, durable
Supply CCS,DNV,ABS,LR,GL,KR,BV,RINA certificate
1.can be made by stainless steel,steel or as requested.
2.short manufacturing term and prompt delivery.
3.good quality and competitive price.
4.machining facilities:CNC center,CNC lathes,ultrasonic wave cleaning,etc.
5.Certification:CCS/BV/LR/ABS
We can supply Simple machine for releasing anchor,screw type cable releaser,dog type cable clench . We can also make these products according to buyer's drawings.If you want more detailed information,please feel free to contact us

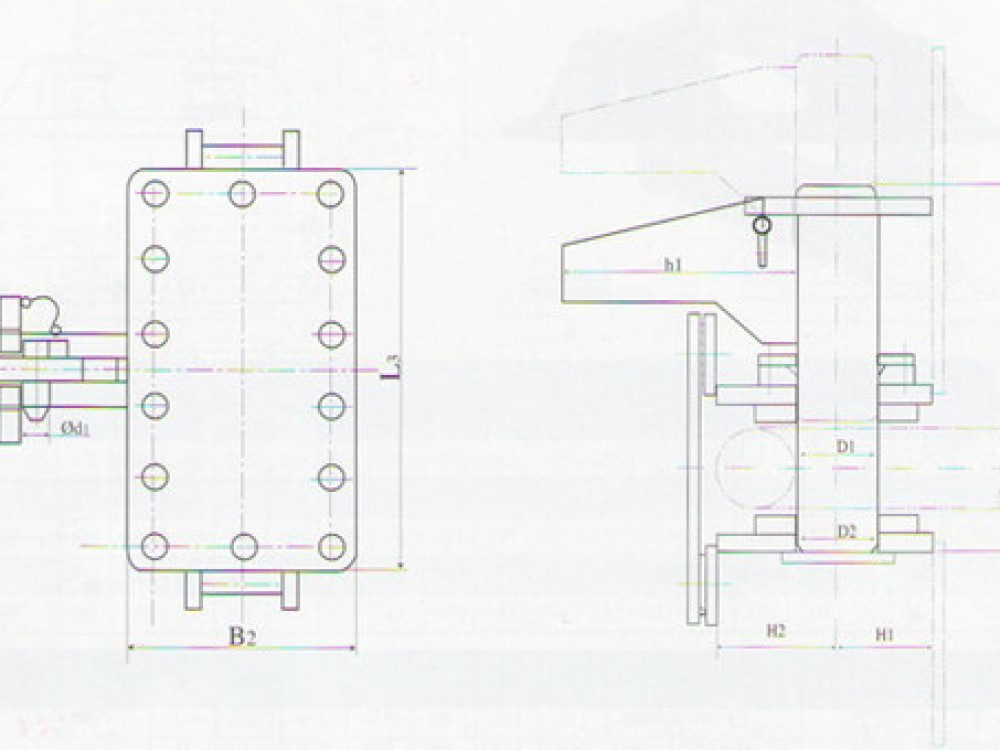

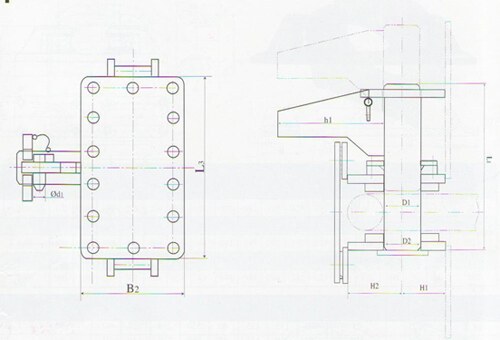

Plug Type Anchor Released JIS F2025-1992 | ||||||||||||
Product No. | Model number | Anchor chain diameter | L1 | L3 | B2 | H1 | H2 | D1 | D2 | h1 | d1 | Weight(kg) |
LCA-001 | 52 | 50-52 | 384 | 460 | 238 | 63 | 82 | 54 | 57 | 190 | 16 | 40.5 |
LCA-002 | 56 | 54-56 | 420 | 486 | 246 | 69 | 88 | 58 | 61 | 194 | 16 | 48 |
LCA-003 | 60 | 58-60 | 448 | 504 | 254 | 74 | 94 | 62 | 65 | 198 | 16 | 53.9 |
LCA-004 | 64 | 62-64 | 478 | 524 | 264 | 80 | 100 | 66 | 69 | 202 | 16 | 60 |
LCA-005 | 68 | 66-68 | 504 | 542 | 272 | 84 | 107 | 70 | 73 | 207 | 16 | 70.8 |
LCA-006 | 73 | 70-73 | 540 | 570 | 282 | 87 | 114 | 75 | 78 | 212 | 19 | 81.4 |
LCA-007 | 78 | 76-78 | 576 | 594 | 292 | 95 | 122 | 80 | 83 | 217 | 19 | 92.8 |
LCA-008 | 84 | 81-84 | 624 | 628 | 302 | 102 | 131 | 85 | 88 | 223 | 19 | 106 |
LCA-009 | 90 | 87-90 | 670 | 660 | 316 | 110 | 140 | 90 | 93 | 230 | 19 | 128 |
LCA-010 | 95 | 92-95 | 708 | 686 | 330 | 118 | 148 | 95 | 98 | 235 | 22 | 146 |
LCA-011 | 102 | 98-102 | 762 | 724 | 346 | 128 | 158 | 100 | 103 | 242 | 22 | 188 |
LCA-012 | 111 | 105-111 | 828 | 770 | 364 | 139 | 171 | 110 | 110 | 251 | 22 | 231 |
LCA-013 | 120 | 114-120 | 892 | 810 | 386 | 150 | 184 | 120 | 123 | 260 | 22 | 274 |
