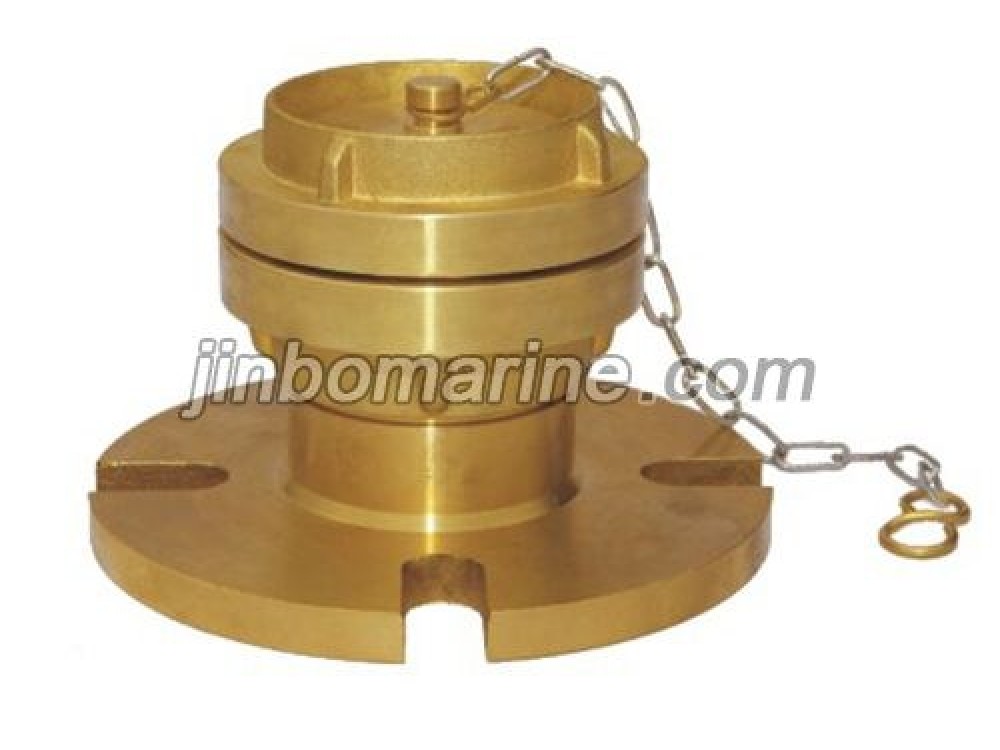

PN16 International Shore Connection

PN16 International Shore Connection

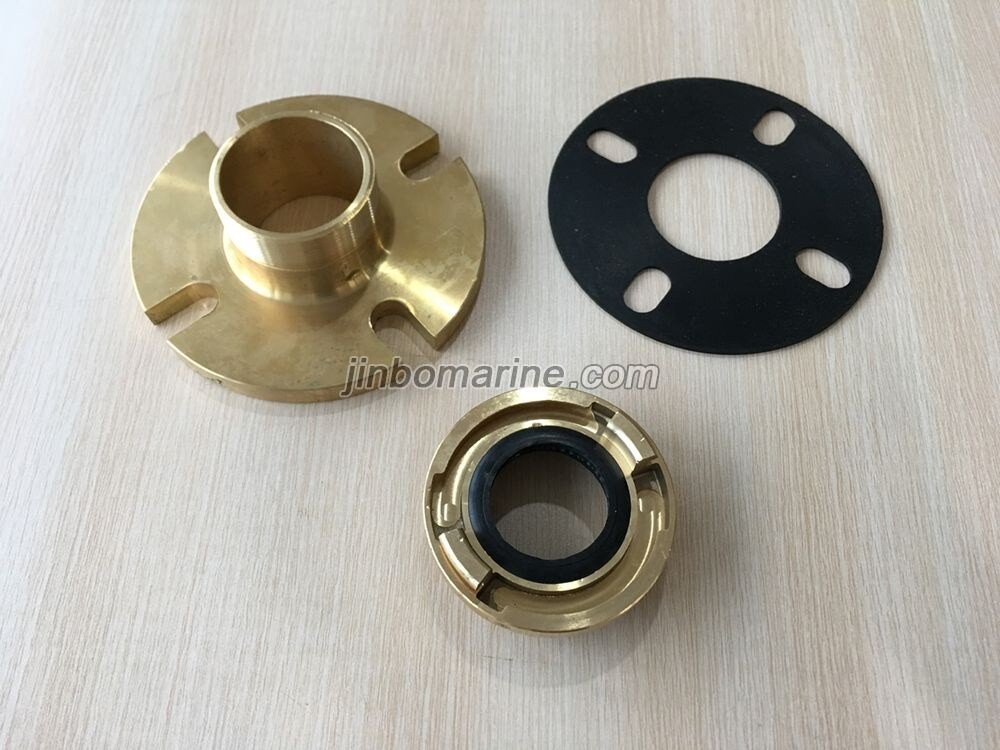

The connection is fitted with a coupling to match the hose couplings on the ship.

Outside diameter:178mm

Inside diameter:64mm

P.C.D:132mm

Flange thickness:14.5mm

Slots in flange: 19mm diameter x 4 holes.

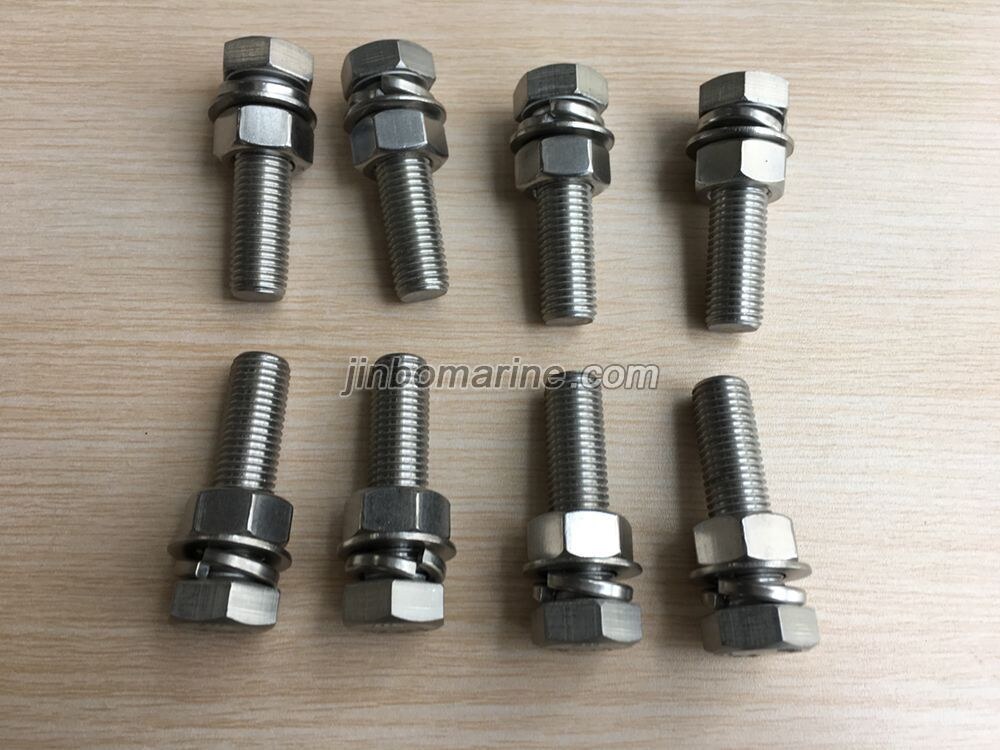

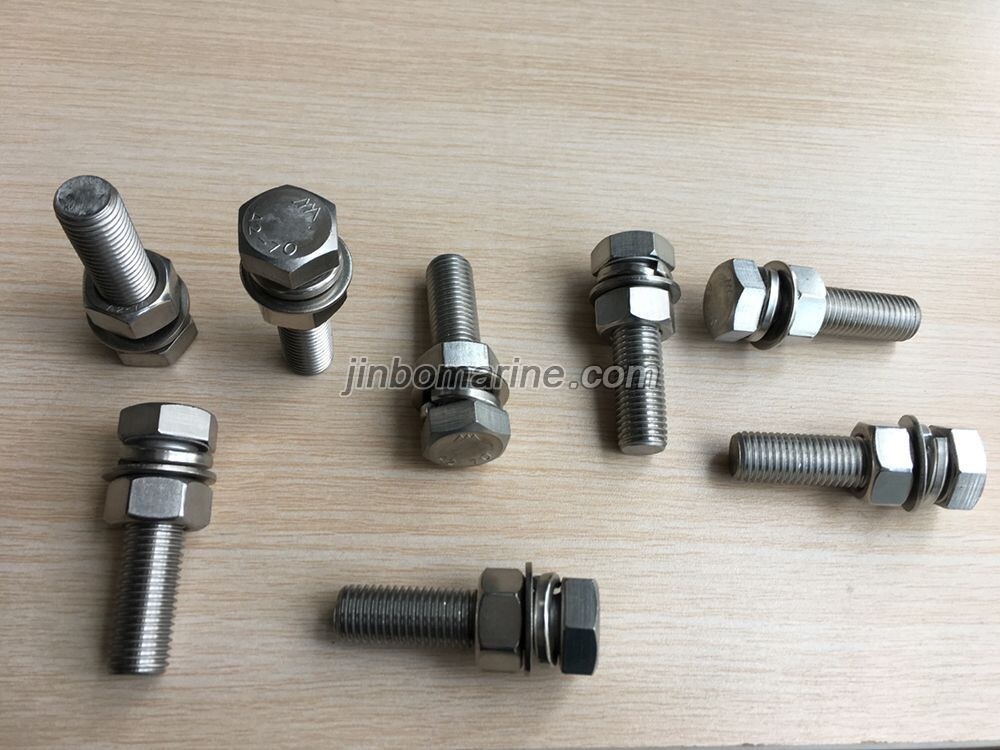

Bolts and nuts:16mm diameter x 50mm lengthx 4pcs.

IMPA code: 330841
