Type TW Anchor

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Type TW Anchor:

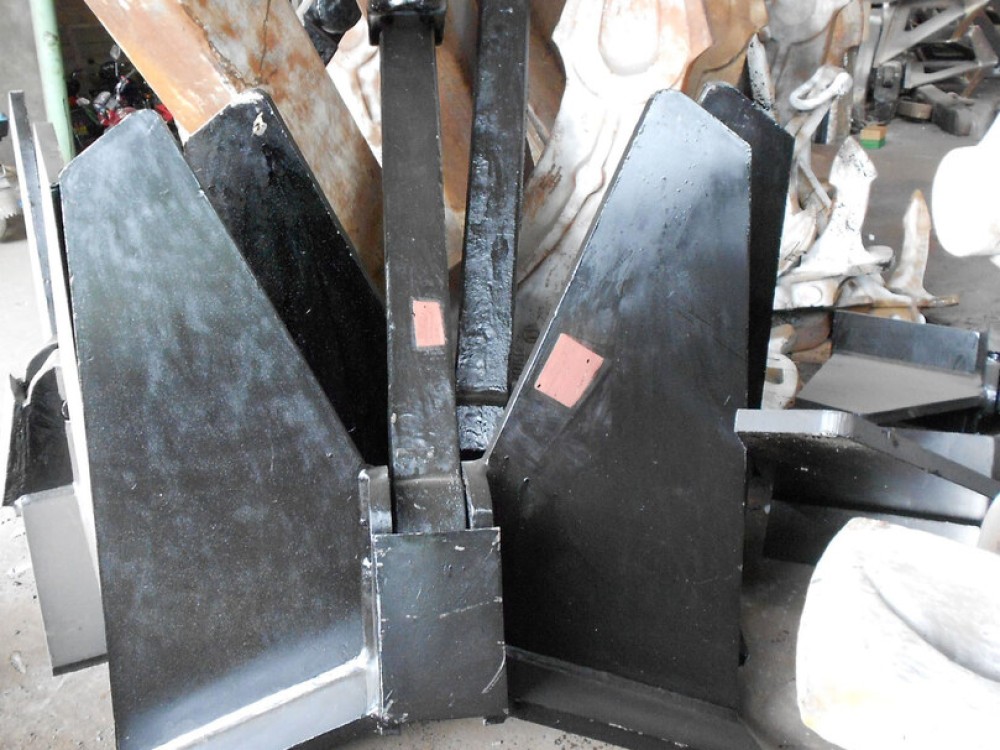

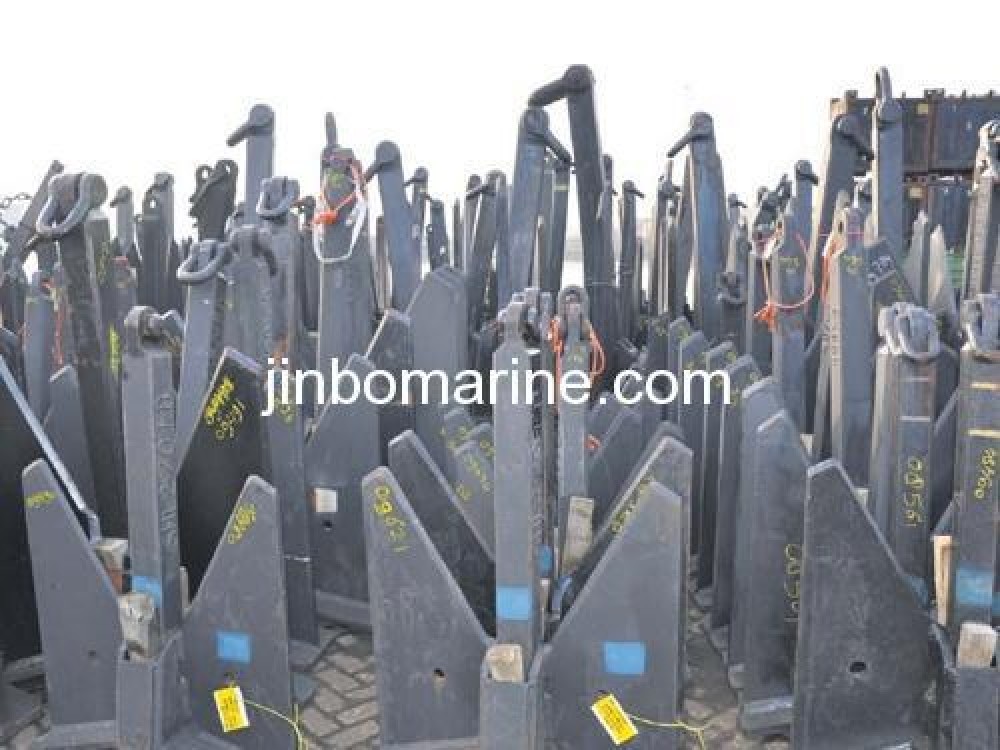

Type TW Anchor (Type Anchor, TW Anchor)

TW Anchor(Anchor, TW Type) is also an High Holding Power Anchor, holding-power-to-weight is about 6, anchor flukes are smooth and sharp, suitable for all soil conditions, drop and weigh anchor is convenient, commonly used as Bow Anchor or Offdrill Anchor.

All anchors could be supplied with Classification Certificate, LR, ABS, BV, GL, DNV, KR, NK, IRS and CCS Certificate.

Technical Spec:

Material: Casting Steel

Weight: 20KGS to 30000KGS

Class Certificate: LR, ABS, BV, GL, DNV, KR, NK, IRS and CCS

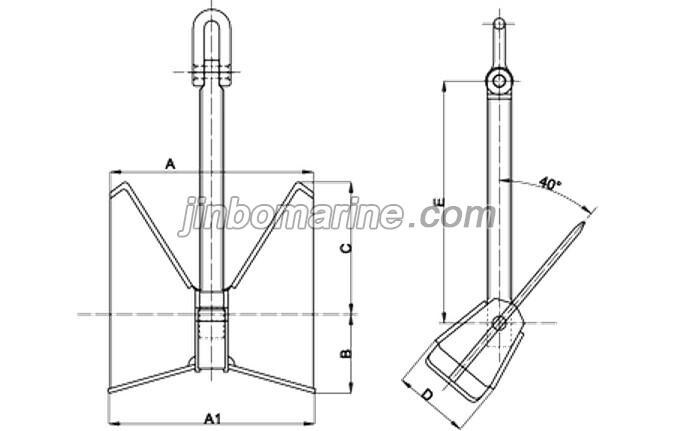

Dimension Table:


Nominal Weight
(KG) 		Size(mm)
A B C D E F
20 369 374 144 240 136 402
32 435 437 168 280 158 469
40 469 476 183 305 172 510
60 536 544 210 349 197 585
75 578 587 225 376 212 630
80 600 610 225 400 222 685
90 615 624 240 400 226 670
105 648 658 252 422 240 710
125 686 694 267 447 254 750
135 705 716 274 459 261 773
145 720 730 280 470 266 788
160 746 758 290 486 276 818
180 776 787 301 505 287 850
225 836 848 325 544 309 915
270 888 902 342 573 326 965
300 920 933 357 598 340 1008
360 978 993 380 637 362 1072
400 996 1010 386 648 374 1090
450 1038 1053 403 675 390 1137
490 1086 1103 422 707 402 1190
565 1136 1153 425 740 420 1245
582 1160 1180 450 755 428 1270
675 1205 1224 468 785 446 1322
765 1257 1276 488 818 465 1378
855 1286 1306 500 841 480 1411
1000 1360 1380 528 885 503 1480
1080 1400 1420 542 915 520 1530
1130 1410 1430 547 917 521 1544
1195 1458 1479 566 949 540 1597
1305 1486 1509 579 973 556 1634
1440 1535 1560 596 1001 578 1683
1575 1584 1608 615 1032 596 1735
1710 1628 1651 632 1060 612 1782
1845 1670 1695 648 1084 628 1828
1980 1704 1731 667 1119 638 1880
2140 1754 1768 676 1135 655 1908
2295 1795 1822 697 1169 675 1966
2475 1741 1868 715 1199 692 2016
2665 1886 1912 732 1228 708 22064
2750 1907 1930 738 1238 715 2082
2835 1926 1955 748 1255 725 2110
3000 1972 2002 765 1285 742 2160
3240 2014 2044 782 1311 757 2205
3445 2056 2087 798 1340 774 2258
3690 2100 2130 815 1367 790 2298
3940 2150 2182 834 1400 808 2354
4210 2198 2230 853 1431 826 2406
4500 2236 2271 870 1462 836 2454
4840 2302 2336 894 1499 865 2520
5175 2318 2355 914 1555 868 2596
5250 2366 2400 918 1540 890 2590
5515 2405 2440 933 1566 905 2634
5850 2453 2489 952 1598 922 2685
6225 2504 2542 972 1632 942 2743
6525 2550 2580 987 1658 956 2807
6975 2600 2640 1010 1695 978 2849
7875 2695 2735 1050 1773 1012 2980
8325 2757 2784 1070 1806 1041 3035
8775 2797 2825 1089 1830 1056 3074
9225 2865 2894 1108 1858 1073 3121
9675 2905 2934 1126 1888 1090 2172
10125 2491 2970 1143 1918 1108 3223
10575 2979 3009 1160 1946 1124 3270
11025 3027 3057 1176 1974 1140 3317
12075 3121 3152 1212 2034 1175 3418
12675 3160 3192 1230 2064 1192 3468
13350 3221 3253 1254 2104 1215 3535
14100 3295 3328 1276 2142 1237 3600
15000 3357 3380 1294 2166 1262 3640
16125 3443 3470 1326 2219 1293 3728
20000 3690 3727 1429 2399 1385 4030
25000 3986 4026 1544 2590 1496 4354
30000 4237 4270 1640 2754 1590 4626

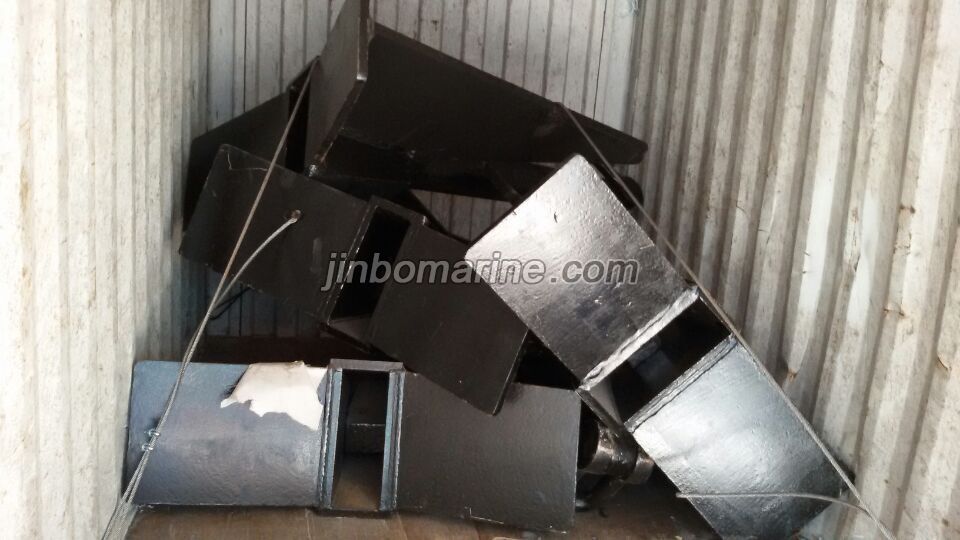

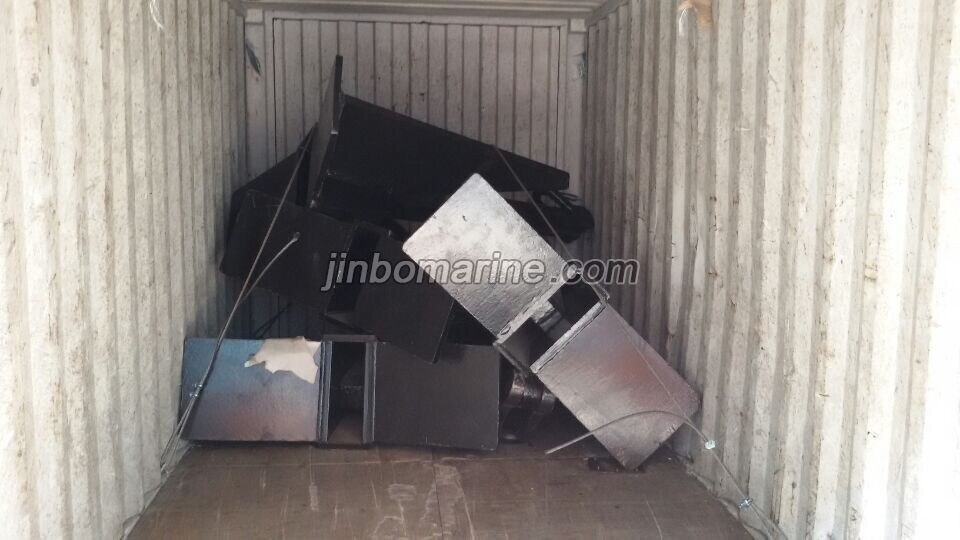

TW Anchor Sea Shipment

All anchor lashed and fixed in the container in order to avoid to make damage on the container.

Fast Delivery(Incoterms 2010)

Please feel free to contact us if you have inquiry or RFQ.
