QHZ50-2 Marine Fuel Oil Vaporization Stove

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

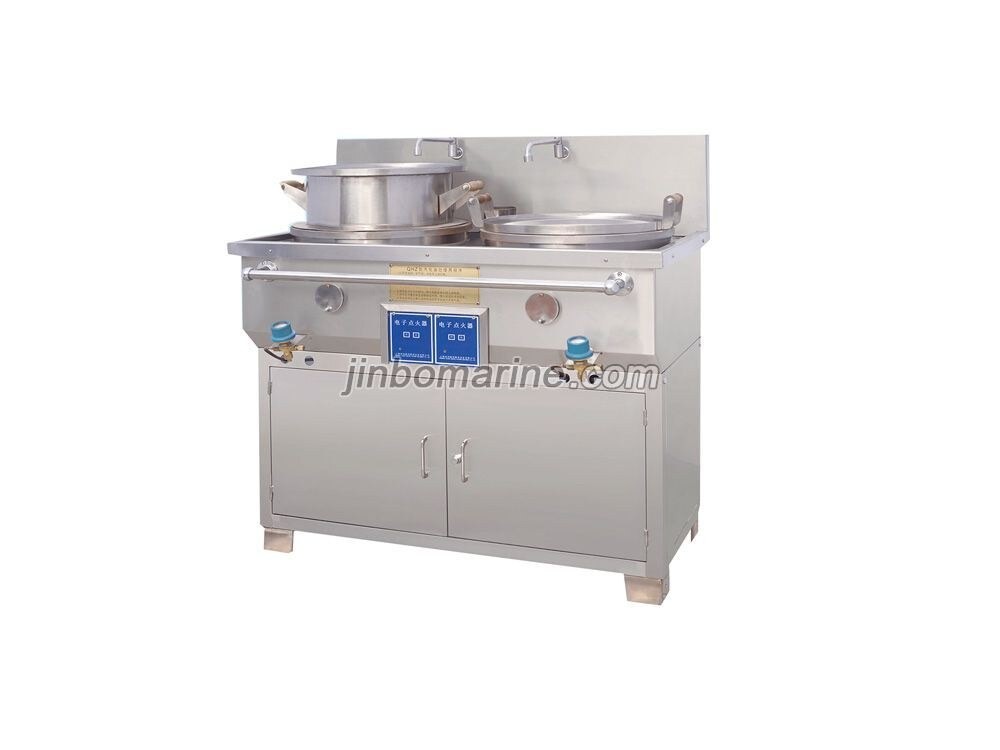

QHZ50-2 Marine Fuel Oil Vaporization Stove

1. All stainless steel structure
2. Adopt safe electronic igniter for easy operation
3. The body has a pressure tank
4. Set up handrails for wave protection
5. The base form is suitable for installation and fixing on ships

QHZ50-2 Marine Fuel Oil Vaporization Stove Parameters

Model QHZ50-2 QH100-2 QHZ200-2
Fuel Consumption 2.5-2.8kh/h 2.5-2.8kg/h 4-4.6kg/h
Voltage 220v-1PH-50Hz
Power(kw) 0.3 0.3 0.3
Size(mm) 1245x645x850 1650x850x850 1840x940x850
Weight(kg) 100 130 150

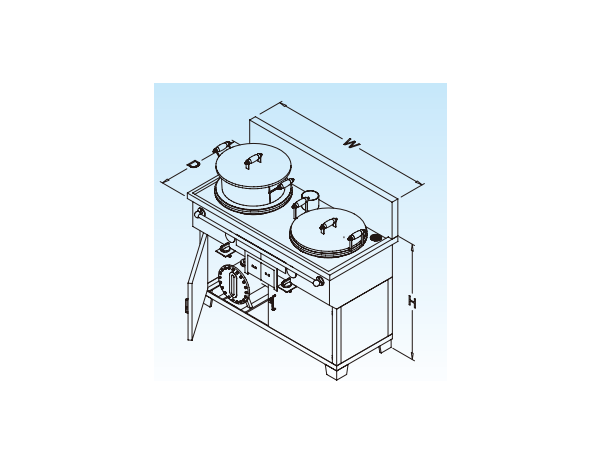

QHZ50-2 Marine Fuel Oil Vaporization Stove Drawing
