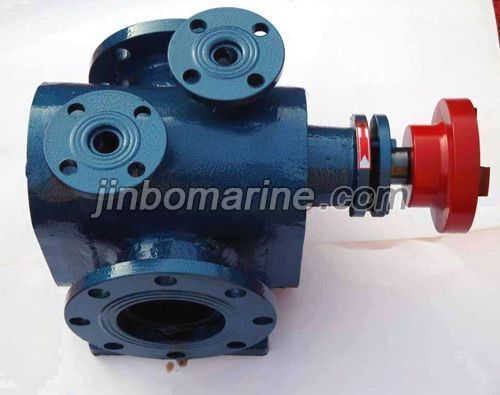

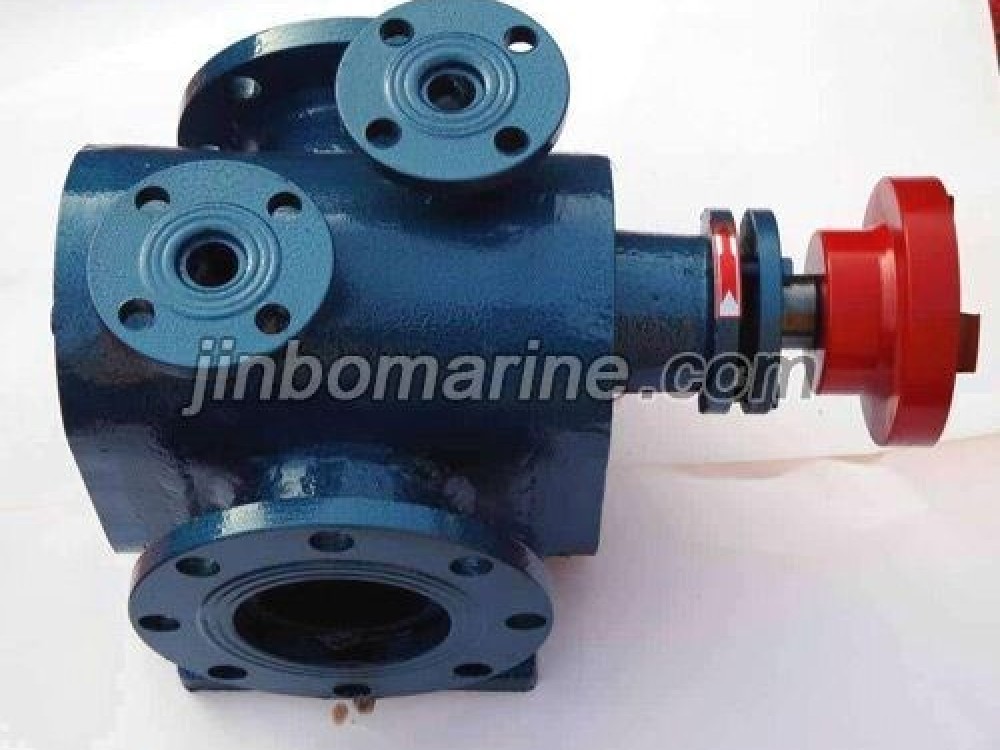

RCB Series Heat Gear Pump
- Category:Gear Pump
- Material:Carbon Steel, Alloy steel
- Standards:standard
- Certificate:CCS
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
General description
The RCB series heat gear pump can transfer the medium which are solidification and crystallization under normal condition. It can heat the transport medium by filling heat conduction oil or steam into the hollow interlayer.RCB Series Heat Gear Pump is suitable for non-corrosive and non-solid material.
Technical Parameter
| Yype | diamter | Capacity | Pressure | Suction head | Motor | |
| mm | m3/h | Mpa | m | Power(kw) | Model | |
| RCB-1/0.36 | 16 | 1 | 0.36 | 5 | 1.1 | Y90S-4 |
| RCB-1/0.8 | 0.8 | 5 | 1.5 | Y90L-4 | ||
| RCB-2/0.36 | 25 | 2 | 0.36 | 5 | 1.5 | Y90L-4 |
| RCB-2/0.8 | 0.8 | 5 | 2.2 | Y100L1-4 | ||
| RCB-3/0.36 | 25 | 3 | 0.36 | 5 | 1.5 | Y100L-6 |
| RCB-3/0.8 | 0.8 | 5 | 2.2 | Y112M-6 | ||
| RCB-5/0.36 | 40 | 5 | 0.36 | 5 | 2.2 | Y112M-9 |
| RCB-5/0.8 | 0.8 | 5 | 3 | Y132S-6 | ||
| RCB-6/0.36 | 40 | 6 | 0.36 | 5 | 2.2 | Y112M-6 |
| RCB-6/0.8 | 0.8 | 5 | 3 | Y123S-6 | ||
| RCB-8/0.36 | 50 | 8 | 0.36 | 5 | 3 | Y132S-6 |
| RCB-8/0.8 | 0.8 | 5 | 4 | Y132M-6 | ||
| RCB-10/0.36 | 50 | 10 | 0.36 | 5 | 4 | Y132M1-6 |
| RCB-10/0.8 | 0.8 | 5 | 5.5 | Y132M2-6 | ||
| RCB-12/0.36 | 50 | 12 | 0.36 | 5 | 4 | Y132M1-6 |
| RCB-12/0.8 | 0.8 | 5 | 5.5 | Y132M2-6 | ||
| RCB-18/0.36 | 70 | 18 | 0.36 | 5 | 5.5 | Y132M2-6 |
| RCB-18/0.8 | 0.8 | 5 | 7.5 | Y160M-6 | ||
| RCB-29/0.36 | 70 | 29 | 0.36 | 5 | 5.5 | Y132S-4 |
| RCB-29/0.8 | 0.8 | 5 | 7.5 | Y132M-4 | ||
| RCB-32/0.36 | 100 | 32 | 0.36 | 5 | 11 | Y160L-6 |
| RCB-32/0.8 | 0.8 | 5 | 15 | Y180L-6 | ||
| RCB-38/0.28 | 100 | 38 | 0.36 | 5 | 11 | Y160L-6 |
| RCB-38/0.8 | 0.8 | 5 | 15 | Y180L-6 | ||
| RCB-58/0.28 | 100 | 58 | 0.36 | 5 | 18.5 | Y180M-4 |
| RCB-58/0.8 | 0.8 | 5 | 22 | Y180L-4 | ||
