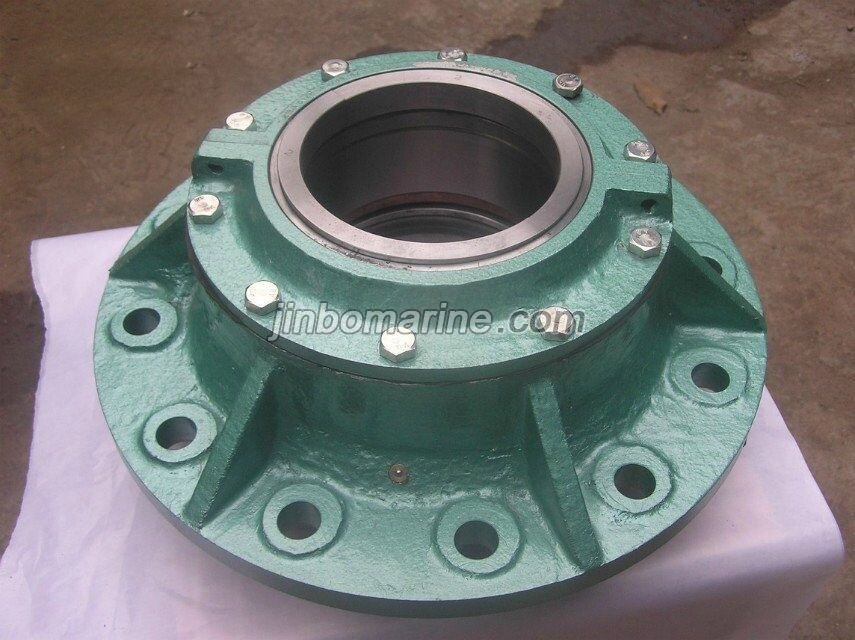

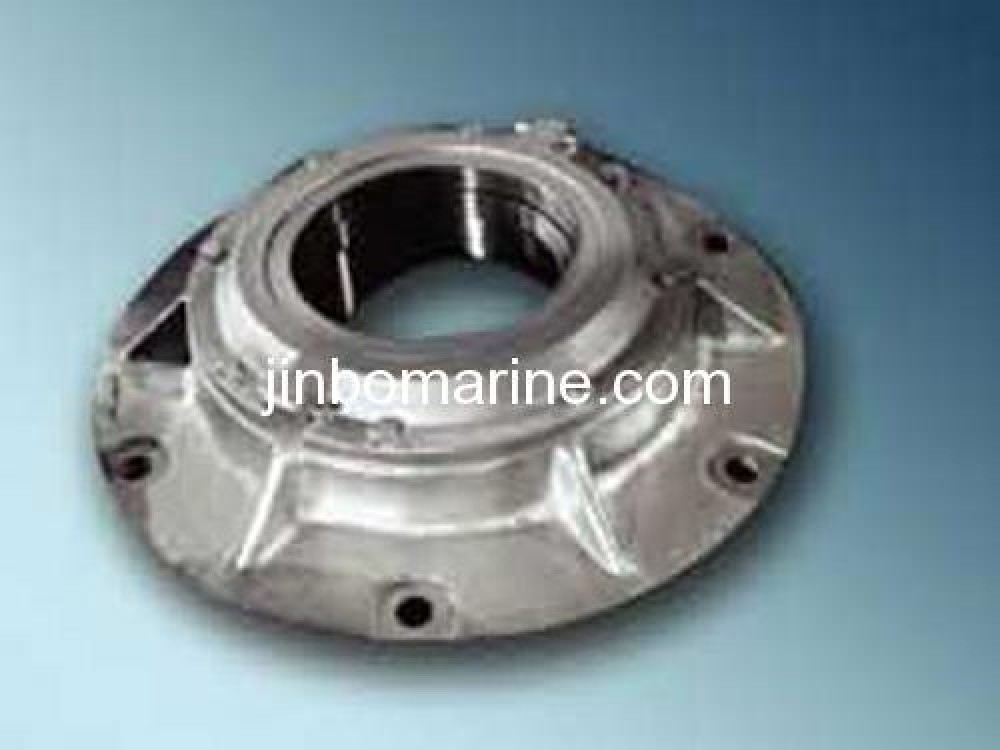

Roller upper rudder carrier CB 789-87
- Category:Rudder Stock Seal
- Delivery Time:15 Days
- Certificate:CCS,BV
- Packing Details:Wooden Case
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Product Advantage
It is suitable for small and nedium vessels with upper and lower rudder constructions.
Type | Name | Rudder Pintle Diameter | Application |
A | Light Roller Upper Rudder Carrier | Dia.40-Dia.150 | Used to rudders with small loads and pintles of small flexility |
B | Heavy Roller Upper Rudder Carrier | Dia. 120- Dia.340 | Automatic self-aligning ability and suitale for hinged rudder with heavy loads under bad situation |
C | Watertight Roller Upper Rudder Carrier | Dia.120mm- Dia. 400 | It has the advantages of type B and Sealing Features |

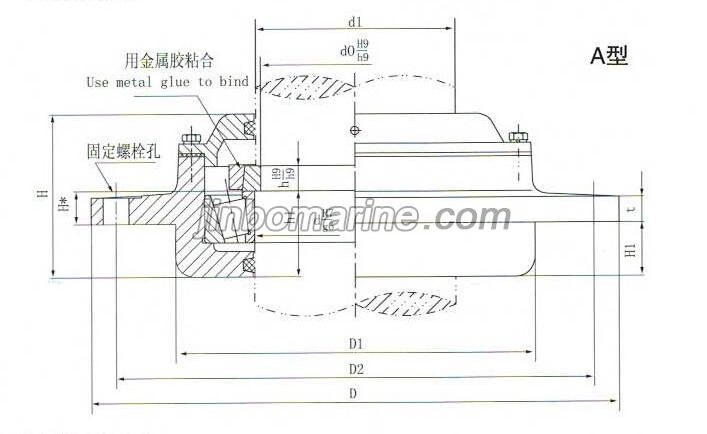

Roller upper rudder carrier CB 789-87 Type A
Type | Dimensions (mm) |
Bearing Designation GB286-84 |
Fixing Bolt | Weight (kg) | ||||||||||||
d | d0 | d1 | d3 | D1 | D2 | t | h | h1 | H | H1 | Quantity | Diameter | ||||
A | 40 | 40 | 34 | 39 | 200 | 108 | 170 | 14 | 10 | 36 | 60 | 22 | 7208 | 6 | M12 | 6.1 |
50 | 50 | 44 | 49 | 210 | 120 | 180 | 14 | 10 | 40 | 66 | 22 | 7210 | 6 | M12 | 6.7 | |
60 | 60 | 54 | 59 | 230 | 140 | 200 | 15 | 10 | 44 | 70 | 25 | 7212 | 6 | M12 | 8.2 | |
70 | 70 | 60 | 69 | 260 | 155 | 220 | 15 | 10 | 46 | 72 | 25 | 7214 | 6 | M16 | 10.7 | |
80 | 80 | 70 | 79 | 290 | 180 | 250 | 18 | 12 | 49 | 79 | 25 | 7216 | 6 | M12 | 15.7 | |
90 | 90 | 80 | 89 | 320 | 200 | 280 | 20 | 12 | 58 | 91 | 30 | 7218 | 6 | M16 | 22.8 | |
100 | 100 | 90 | 98 | 340 | 220 | 300 | 20 | 12 | 65 | 94 | 34 | 7220 | 6 | M16 | 25.3 | |
110 | 110 | 100 | 108 | 360 | 240 | 320 | 20 | 12 | 69 | 98 | 34 | 7222 | 6 | M16 | 30.2 | |
120 | 120 | 114 | 118 | 380 | 260 | 340 | 20 | 14 | 72 | 102 | 34 | 7224 | 6 | M18 | 35.4 | |
130 | 130 | 114 | 128 | 410 | 290 | 370 | 22 | 14 | 74 | 112 | 36 | 7226 | 6 | M18 | 50.1 | |
140 | 140 | 124 | 138 | 440 | 310 | 395 | 25 | 14 | 77 | 113 | 36 | 7228 | 6 | M20 | 58.6 | |
150 | 150 | 134 | 148 | 460 | 330 | 415 | 25 | 14 | 79 | 117 | 36 | 7230 | 6 | M20 | 68.7 |

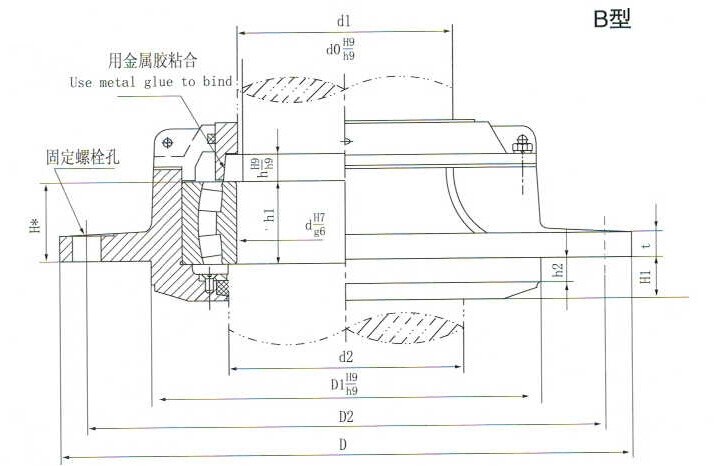

Roller upper rudder carrier CB 789-87 Type B
Type | Dimensions (mm) |
Bearing Designation GB286-84 |
Fixing Bolt | Weight (kg) | ||||||||||||||
d | d0 | d1 | d2 | d3 | D1 | D2 | t | h | h1 | h2 | H | H1 | Quantity | Diameter | ||||
B | 120 | 120 | 110 | 119 | 130 | 350 | 220 | 310 | 16 | 20 | 46 | 15 | 106 | 30 | 3003124 | 6 | M18 | 25.2 |
130 | 130 | 120 | 128 | 140 | 370 | 240 | 330 | 16 | 20 | 52 | 15 | 114 | 30 | 3003126 | 6 | M18 | 31.3 | |
140 | 140 | 130 | 138 | 150 | 390 | 250 | 650 | 16 | 20 | 53 | 15 | 120 | 30 | 3001228 | 6 | M20 | 35 | |
150 | 150 | 140 | 148 | 160 | 400 | 265 | 360 | 16 | 20 | 56 | 15 | 125 | 30 | 3003130 | 6 | M20 | 40 | |
160 | 160 | 150 | 158 | 172 | 420 | 286 | 380 | 18 | 20 | 60 | 18 | 127 | 30 | 3003132 | 6 | M20 | 49.7 | |
170 | 170 | 160 | 168 | 182 | 435 | 300 | 395 | 18 | 20 | 67 | 18 | 134 | 35 | 3003134 | 6 | M20 | 59.6 | |
180 | 180 | 168 | 178 | 192 | 460 | 315 | 450 | 18 | 22 | 74 | 18 | 143 | 38 | 3003136 | 6 | M20 | 62 | |
190 | 190 | 178 | 188 | 202 | 490 | 330 | 440 | 18 | 24 | 75 | 18 | 158 | 38 | 3003138 | 6 | M20 | 72 | |
200 | 200 | 188 | 198 | 212 | 520 | 362 | 470 | 20 | 25 | 82 | 18 | 163 | 40 | 3003140 | 6 | M20 | 94.8 | |
220 | 220 | 208 | 218 | 234 | 550 | 392 | 500 | 20 | 25 | 90 | 20 | 171 | 40 | 3003144 | 6 | M24 | 107.5 | |
240 | 240 | 228 | 238 | 254 | 570 | 410 | 520 | 20 | 25 | 92 | 20 | 173 | 40 | 3003148 | 6 | M24 | 118 | |
260 | 260 | 245 | 258 | 278 | 650 | 460 | 585 | 25 | 28 | 104 | 20 | 192 | 42 | 3003052 | 6 | M24 | 176.5 | |
280 | 280 | 265 | 278 | 298 | 670 | 480 | 605 | 25 | 28 | 106 | 20 | 201 | 42 | 3003156 | 6 | M27 | 192 | |
300 | 300 | 285 | 298 | 320 | 720 | 520 | 650 | 30 | 30 | 118 | 24 | 210 | 50 | 3003160 | 6 | M30 | 210 | |
320 | 320 | 305 | 318 | 340 | 750 | 550 | 680 | 30 | 30 | 121 | 24 | 215 | 60 | 3003164 | 6 | M30 | 233 | |
340 | 340 | 325 | 338 | 360 | 780 | 580 | 710 | 30 | 32 | 133 | 24 | 230 | 60 | 3003168 | 6 | M30 | 272 |

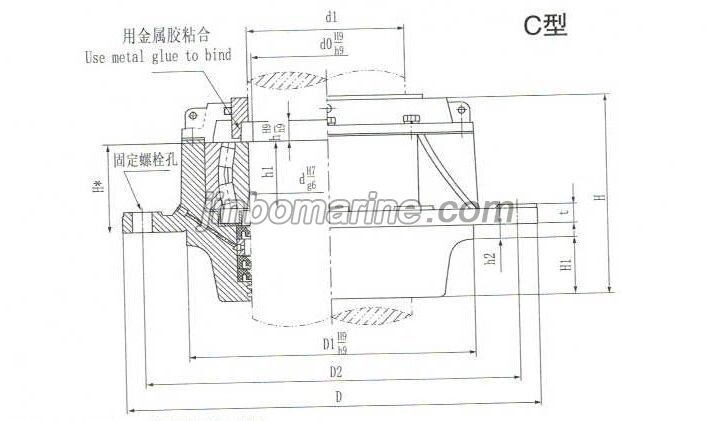

Roller upper rudder carrier CB 789-87 Type C
Type | Dimensions (mm) |
Bearing Designatio n GB286-84 |
Fixing Bolt | Weight (kg) | |||||||||||||
d | d0 | d1 | d3 | D1 | D2 | t | h | h1 | h2 | H | H1 | Quantity | Diameter | ||||
C | 120 | 120 | 110 | 119 | 370 | 220 | 320 | 22 | 20 | 46 | 15 | 179 | 50 | 3003124 | 12 | M20 | 37.1 |
130 | 130 | 120 | 128 | 390 | 240 | 340 | 22 | 20 | 52 | 15 | 188 | 50 | 3003126 | 12 | M20 | 44.3 | |
140 | 140 | 130 | 138 | 390 | 240 | 340 | 22 | 20 | 53 | 15 | 190 | 50 | 3003128 | 12 | M20 | 45.4 | |
150 | 150 | 140 | 148 | 410 | 260 | 350 | 22 | 20 | 56 | 15 | 192 | 50 | 3003130 | 12 | M20 | 53.3 | |
160 | 160 | 150 | 158 | 435 | 280 | 385 | 24 | 20 | 60 | 18 | 198 | 60 | 3003132 | 12 | M22 | 64.2 | |
170 | 170 | 160 | 168 | 455 | 300 | 405 | 24 | 20 | 67 | 18 | 211 | 60 | 3003134 | 12 | M22 | 86.6 | |
180 | 180 | 168 | 178 | 470 | 315 | 420 | 24 | 22 | 74 | 18 | 229 | 65 | 3003136 | 12 | M22 | 90.3 | |
190 | 190 | 178 | 188 | 490 | 330 | 440 | 25 | 24 | 75 | 18 | 245 | 65 | 3003138 | 12 | M24 | 96.4 | |
200 | 200 | 188 | 198 | 520 | 360 | 470 | 25 | 25 | 82 | 18 | 248 | 70 | 3003140 | 12 | M24 | 107 | |
220 | 220 | 208 | 218 | 540 | 370 | 485 | 25 | 25 | 90 | 20 | 256 | 70 | 3003144 | 12 | M24 | 113.5 | |
240 | 240 | 228 | 238 | 550 | 380 | 495 | 25 | 25 | 92 | 20 | 258 | 70 | 3003148 | 12 | M24 | 128.3 | |
260 | 260 | 245 | 258 | 600 | 420 | 540 | 28 | 28 | 104 | 20 | 280 | 70 | 3003152 | 12 | M24 | 170 | |
280 | 280 | 265 | 278 | 640 | 440 | 575 | 28 | 28 | 128 | 20 | 287 | 80 | 3003156 | 12 | M27 | 202 | |
300 | 300 | 285 | 298 | 700 | 510 | 630 | 28 | 30 | 118 | 24 | 308 | 80 | 3003160 | 12 | M27 | 259 | |
320 | 320 | 305 | 318 | 720 | 520 | 650 | 32 | 30 | 121 | 24 | 313 | 80 | 3003164 | 12 | M30 | 286.5 | |
340 | 340 | 325 | 338 | 760 | 560 | 690 | 32 | 32 | 133 | 24 | 323 | 80 | 3003168 | 12 | M30 | 336 | |
360 | 360 | 345 | 358 | 790 | 580 | 720 | 32 | 32 | 134 | 24 | 324 | 80 | 3003172 | 12 | M30 | 367.5 |
Upper Rudder Carrier
