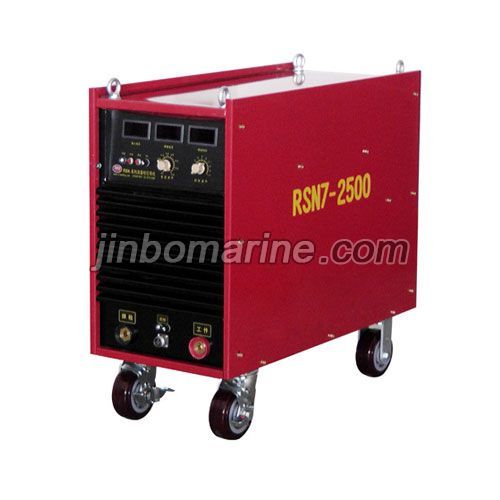

RSN7-2500 Inverter Welding Machine for M4-M28 Weld Studs
- Category:Welding Equipment
- Certificate:CE
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
Feature:
1.IGBT Inverter technology.
2.Less weight, power efficient, safe and reliable.
3.Easy control and digital display of welding voltage, current and time.
4.Special torch with extending cables, large lfiting force, low heat and durable.
5.Inner circuit board is under waterproof, anticorrosion, dampproof and dustproof treatment.
6.Compensatory capabilities of power voltage. When the voltage decreases, this machine can automatically stabilize welding parameters, when the voltage is extremely low, the machine still can work normally(only the max welding current is a little lower), the welding strength is much higher than ordinary welding machine. This feature applies to: electricity shortage and multiple equipments operating simutaneously in construction sites such as projects powered by generators, shipbuilding, steel construction etc.
Technical Parameters:
Item | RSN7-1600 | RSN7-2000 | RSN7-2500 | RSN7-3150 |
welding range | Φ4mm—Φ20mm | Φ4mm—Φ24mm | Φ4mm—Φ28mm | Φ4mm-Φ36mm |
welding current | 200A—1600A | 200A—2000A | 200A—2500A | 300A—3150A |
welding time | 0.1S—3S | 0.1S—3S | 0.1S—3S | 0.1S—3S |
welding speed | Φ20 10pcs/minute |
Φ2410pcs/minute |
Φ2810pcs/minute |
Φ368pcs/minute |
input power | AC 3˜280V—440V | AC 3˜280V—440V | AC 3˜280V—440V | AC 3˜280V—440V |
rated input power | 50KW | 60KW | 80KW | 100KW |
power switch | 100A | 125A | 160A | 225A |
protect grade | Ip23 | Ip23 | Ip23 | IP23 |
cooling way | F | F | F | F |
dimension(L/W/H) | 890x368x560mm | 890x398x680mm | 890x398x680mm | 890x398x800mm |
weight | 98KG | 126KG |
135KG |
168 |
