S4 BFOU(c) 250V Halogen-free Fire Resistant Communication Cable NEK606

  • Category:NEK606 Cable
  • Material:Tinned Copper/Mica Tape+EPR insulation/Twisted+SHF2 sheath/Tinned Copperl Wire Braided/SHF2 Sheath or SHF Mud
  • Standards:NEK 606-2004
  • Certificate:LR, ABS,BV, GL, RINA, DNV, NK, KR, CCS
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

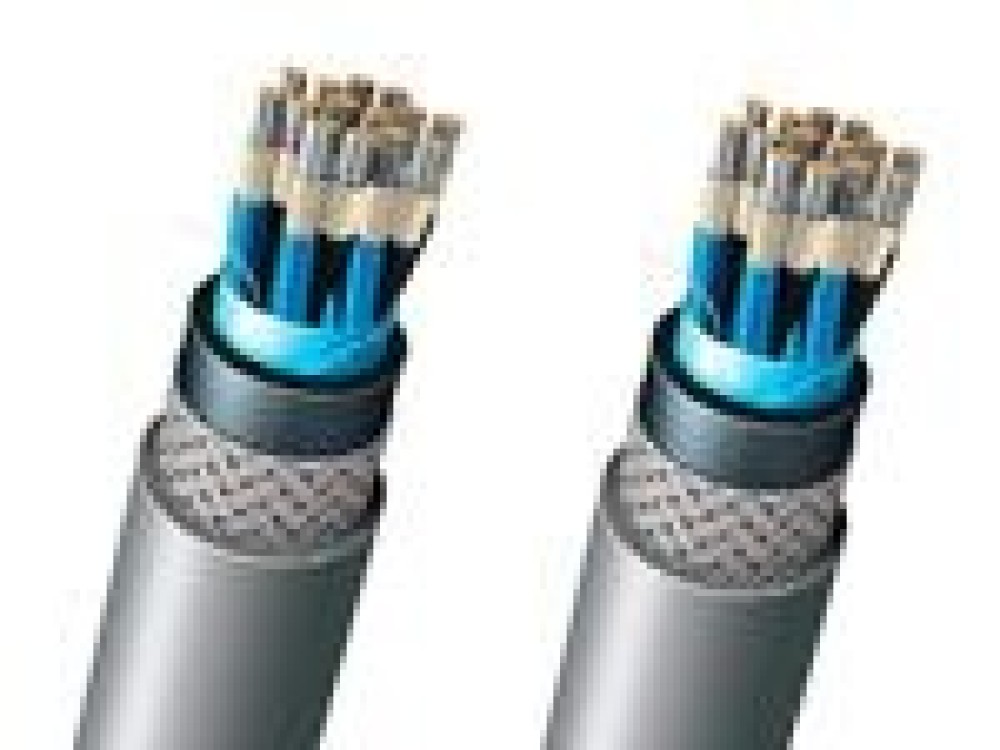

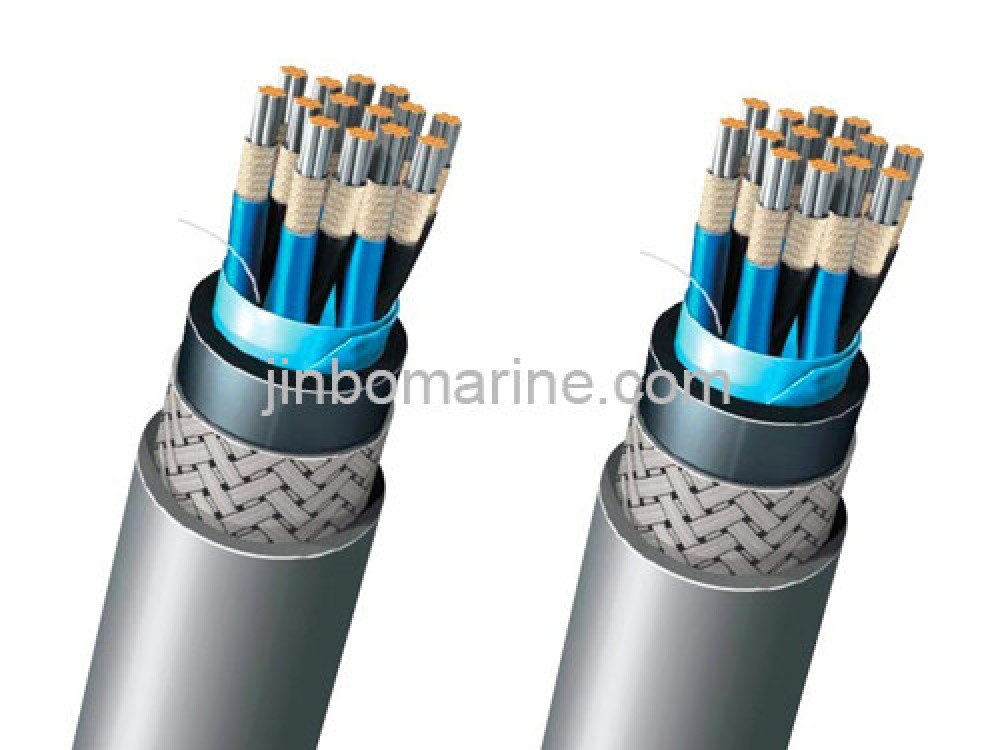

China S4 BFOU(c) 250V Halogen-free Fire Resistant Communication Cable NEK606:

S4 BFOU(c) 250V Halogen-free Fire Resistant Offshore Instrumentation & Communication Cable with collective screened.

S4/S8 BFOU(c) 250V Halogen-free Mud Resistant Offshore Instrumentation & Communication Cable with collective screened.

Cable Construction

Classification

Code

Construction details

Conductor

Tinned Annealed Stranded Copper Wire

Insulation

R

Mica Tape + EP Rubber

Twisting

Color coded cores twisted together for pair or triple

Collective Screen

(c)

Pair/Triple are collective screened by aluminum polyester with copper wire

Bedding/Inner Covering

Halogen-free compound SHF1

Armor

O

Tinned Copper wire braided

Outer Sheath

U

Halogen-free Thermoset compound SHF2

Halogen-free mud resistant thermoset compound, SHF Mud

Colour

Grey or Blue

SHF Mud comply with the requirements in IEC60092-359 for SHF2.

Standards

Design : IEC 60092-376

NEK 606-2004

IEC60331 Fire Resistant

IEC 60332-3 Flame Retardant Category A

IEC60754-1 Halogen-free

IEC 61034-1 Low Smoke

Cores & Size

Cores: 1P 2P 3P 4P 7P 8P 10P 12P 14P 16P 18P 19P 24P 32P

1T 2T 3T 4T 7T 8T 10T 12T 14T 16T 18T 19T 24T 32T

Size (sqmm): 0.75 1 1.5

Feature

Halogen-free, Low Smoke, Flame retardant, Mud Resistant

Application:

The cable is fixed installation for Instrumentation, Communication, Control and Alarm system in both explosion risk and safe area; SHF Mud for Installation in areas expose to Mud and Drilling or Cleaning fluids
