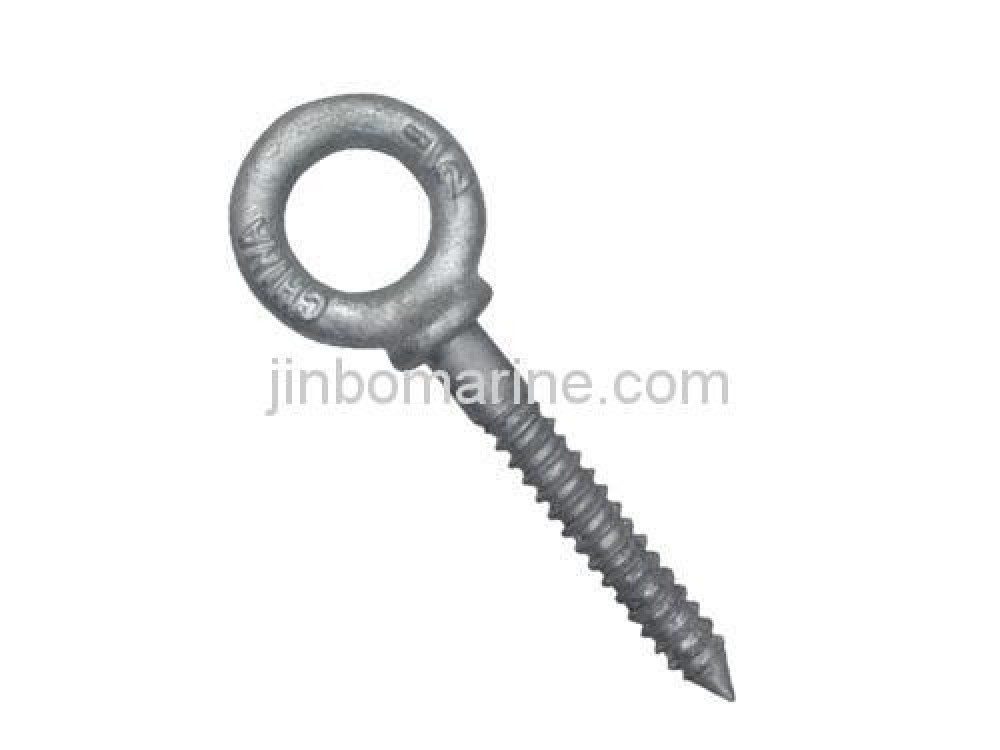

Screw Eye Bolts G275

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

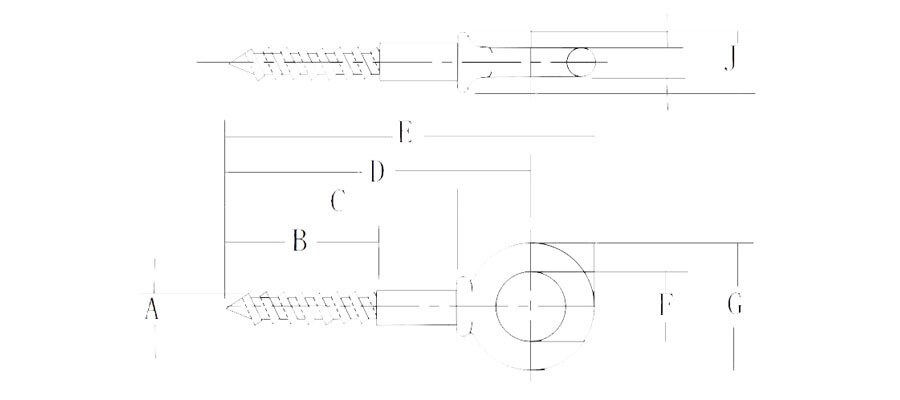

Size Table

Shank Diameter &Length (in.) Weight per 100 (1bs) Dimensions (in.)
A B C D E F G H J
1/4×2 4.25 0.25 1.5 2 2.5 2.94 0.5 0.88 0.19 0.47
5/16×2-1/4 6.25 0.31 1.69 2.25 2.94 3.5 0.63 1.13 0.25 0.56
3/8×2-1/2 18.75 0.38 1.88 2.5 3.28 3.97 0.75 1.38 0.31 0.66
1/2×3-1/4 37.5 0.5 2.44 3.25 4.25 5.12 1 1.75 0.38 0.91
5/8×4 68.75 0.63 3 4 5.31 6.44 1.25 2.25 0.5 1.12
