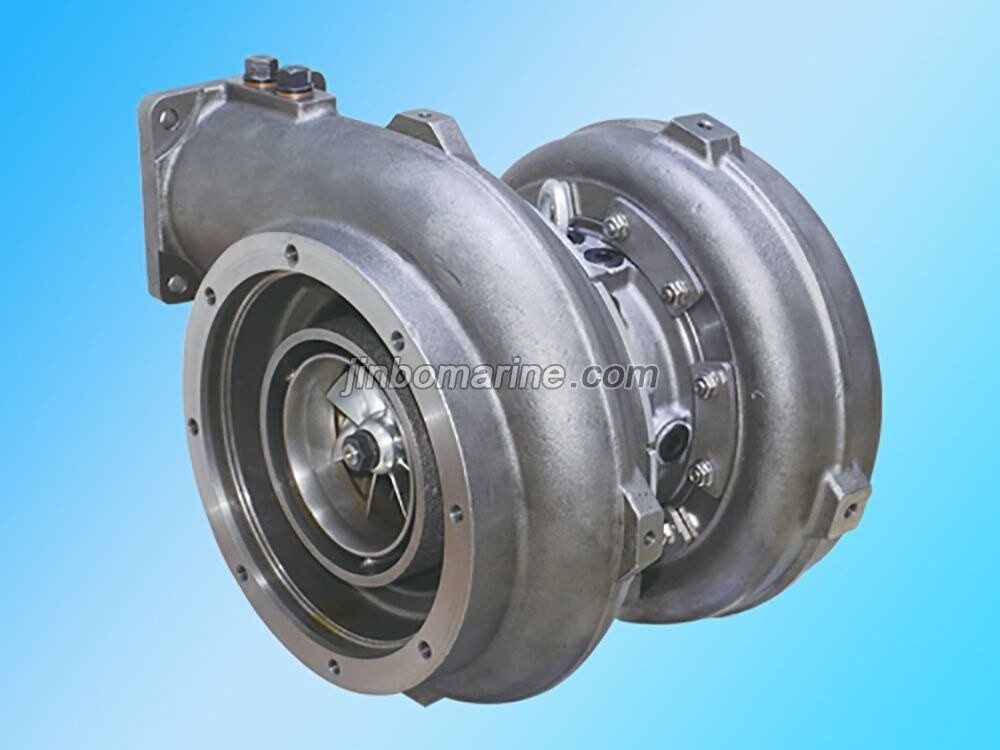

SH148 Series Marine Turbocharger

Request a Quote Not what you need, please send your RFQs via Email.

Details

China SH148 Series Marine Turbocharger:

With compact structure, SH148 series is a newly developed high pressure ratio turbocharger especially for small-sized mid-speed diesel engine and large-size high-speed diesel and gas engine whose single unit output power is from 650 kw to 1200 kw. The pressure ratio of this series at full load can reach 4.5, 4.6 and 5.0.

Product features

1. Three kinds of high pressure ratio and high efficiency centrifugal compressor have broaden the compressor feature map and improved the matching adaptability.

2. Milled impeller with pressure ratio up to 5.0 at full load, which improves the reliability of compressor impeller.

3. High efficiency and mixed flow turbine, completely suitable for pulse turbocharging system.

4. Extremely compact design, more convenient for turbocharger installation and replacement.

5. Water-cooled central housing structure, applicable to all applications.

6. Optional air inlet and exhaust outlet components, variable housing and positioning flange.

7. Comprehensive testing item including containment test guarantee the highest security.

SH148 Series Marine Turbocharger Technical Specifications

Turbo models SH148A SH148B SH148C
Rate speed r/min 68000 67000 67000
Max speed r/min 70000 72000 72000
Pressure ratio 4.6 5.0 4.5
Air flow kg/s 0.3~0.8 0.4~1.1 0.4~1.4
Turbine inlet Temperature 650
Applied engine Diesel engine,Gas engine,Dual full engine
Displacement L 20~30
Engine power KW 400~850
Application Marine,Generator,Engineering machinery
