SICI/SIOI Fire Resistant Ship Power & Control Cable 0.6/1KV(Armoured)

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

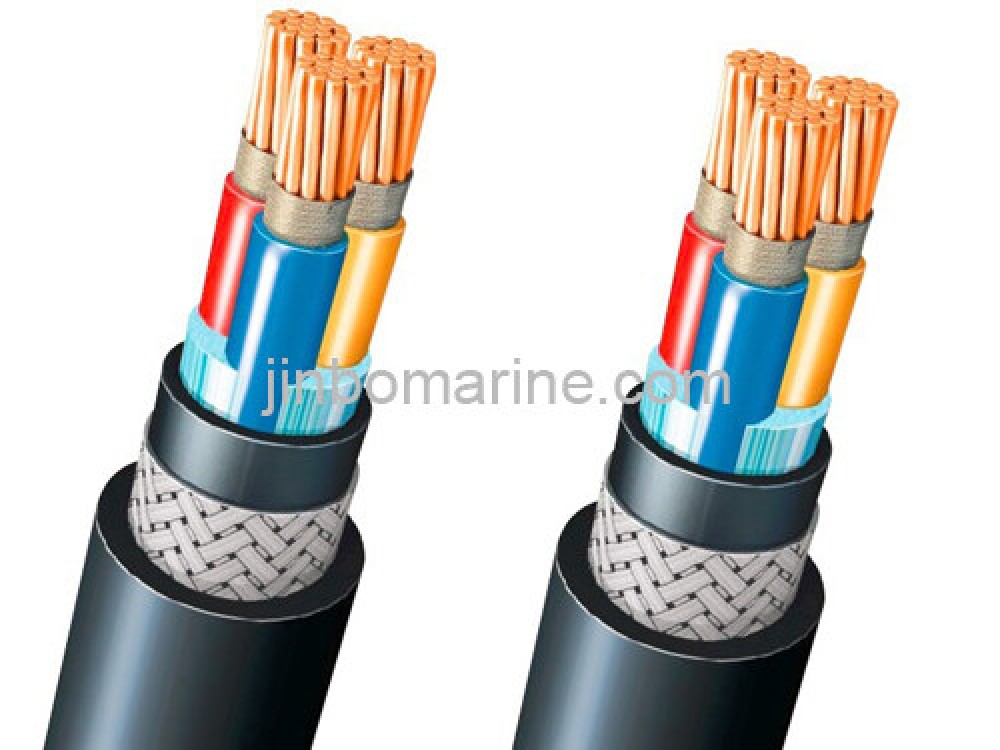

China SICI/SIOI Fire Resistant Ship Power & Control Cable 0.6/1KV(Armoured):

SICI and SIOI Cable are Armoured Cable, Galvanized Steel Wire Braided and Tinned Copper Wire Braided respectively, both are Fire-resistant Marine Power & Control Cable, the voltage is 0.6/1KV.

Technical Specification:

Cable Construction

Conductor: Tinned Copper. IEC 60228 Class 2

Mica Tape

Insulation : XLPE Insulation

Inner Sheath : Halogen-free Thermoplastic Polyolefin(SHF1)

Armour : Galvanized Wire Braided/Tinned Copper Wire Braied

Outer Sheath : Halogen-free Thermoplastic Polyolefin(SHF1), Black

Standards

Design : IEC 60092-350, 353

Insulation Material : IEC 60092 -351

Sheath Material : IEC 60092-359

Flammability: IEC 60332-1 & IEC 60332-3 Category A

Fire-resistant: IEC 60331

Halogen--free: IEC60754-1, IEC60754-2

Smoke Emission: IEC 61034-1, IEC61034-2

Feature

Halogen-free, Low Smoke, Flame retardant, Fire resistant

Application

The cable is fixed installation on ships and offshore units, used for power, lighting and control.
