Single Hook DIN15401

  • Category:Hook
  • Material:High Tensile Steel
  • Standards:DIN15401
  • Packing Details:Wooden Box
  • Delivery Time:20 days
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Single Hook DIN15401:

Single Hook is a type of lifting hook for lifting applicance. Drop Forged with hose, please contact us for inquiry.

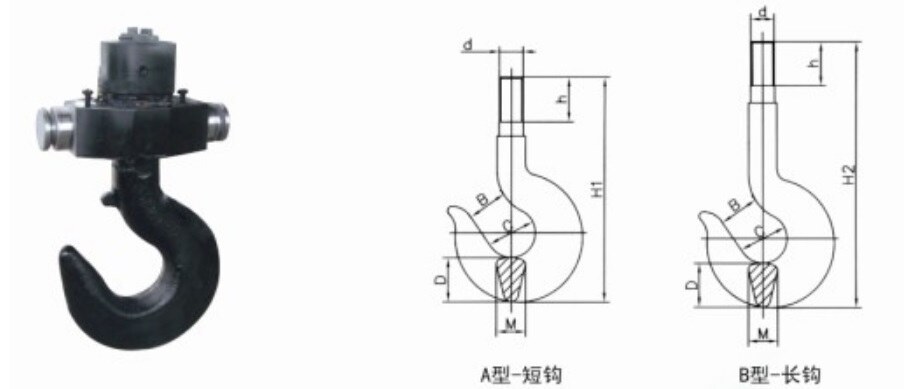

Single Hooks Specification

Sr. No. SWL Size(mm)
H1 H2 h d c B D M
JB4701 3.2t 313 473 55 M36 65 50 65 40
JB4702 5t 400 560 70 M48 85 65 82 54
JB4703 8t 515 655 80 M56 110 85 100 65
JB4704 10t 575 775 90 M64 120 90 115 75
JB4705 12.5t 610 835 95 T70*10 130 100 130 80
JB4706 16t 665 100 T80*10 150 120 150 90
JB4707 20t 764 115 T90*12 170 130 164 102
JB4708 25t 804 130 T100*12 190 145 184 115
JB4709 32t 940 140 T110*12 210 160 205 130
JB4710 40t 1020 150 T120*12 240 180 240 150
JB4711 50t 1190 175 T140*16 270 205 260 165
JB4712 75(80)t 1490 205 T170*16 320 250 320 200
