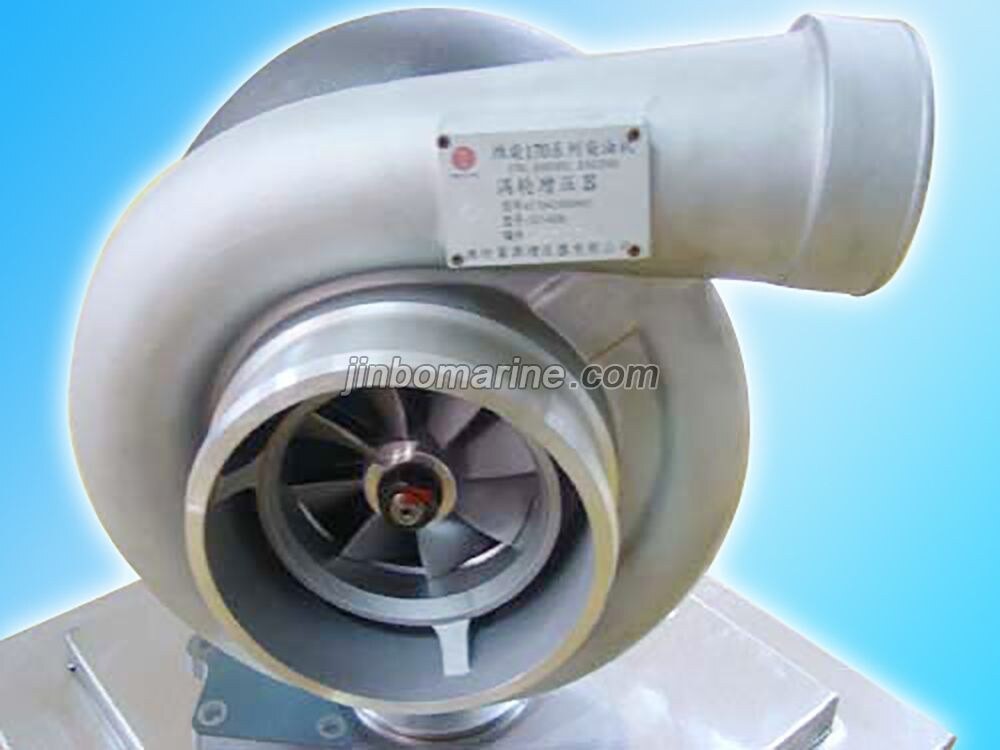

SJ140 Series Marine Turbocharger

Request a Quote Not what you need, please send your RFQs via Email.

Details

China SJ140 Series Marine Turbocharger:

SJ140 series turbocharger suits for 20-24L motor.

Its standard characteristics include:
Centrifugal compressor with wide flow area
Centripetal turbine
Dual floating bearing system
Dual runner symmetry turbine housing
Without by-pass valve
Optional characteristics include: Fixed section turbine housing of 18-40㎡,Compressor housing and turbine housing inclination can be chosen from 0 from 360°.

SJ140 Series Marine Turbocharger Technical Specifications

Pressure Ratio 2.7
Flow Area 0.45-0.95kg/s
Max Rotation Speed 60000r/min
Power Area 300-400kw
Horsepower 402-536kw
Diesel Litres 24L
Compressor inlet Dia 89mm
Compressor ourlet Dia 140mm
Turbine Dia 130mm
