Skylight
- Category:Marine Window
- Material:Carbon Steel
- Standards:CB/T487-1999
- Certificate:CCS, BV, ABS, GL, LR, DNV, NK,RINA, KR,IRS
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

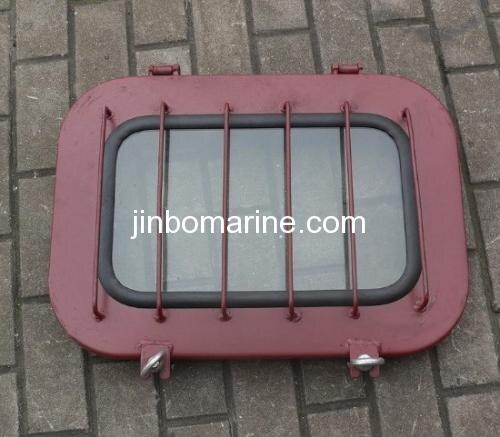

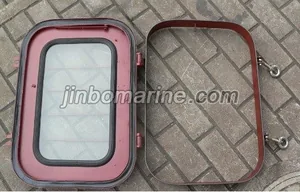

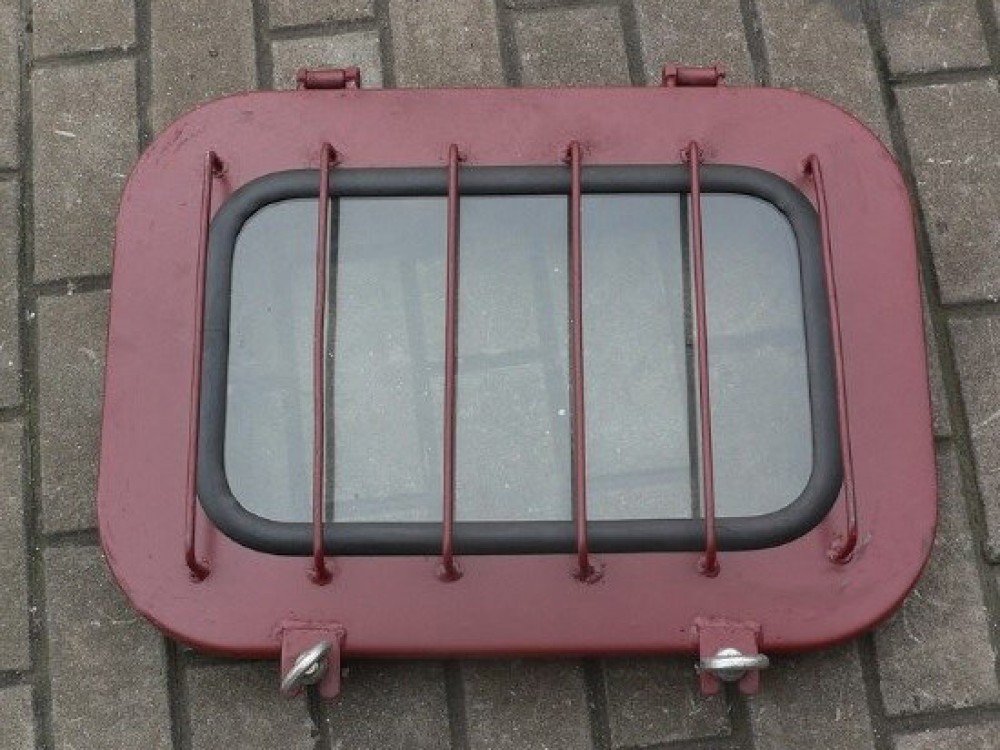

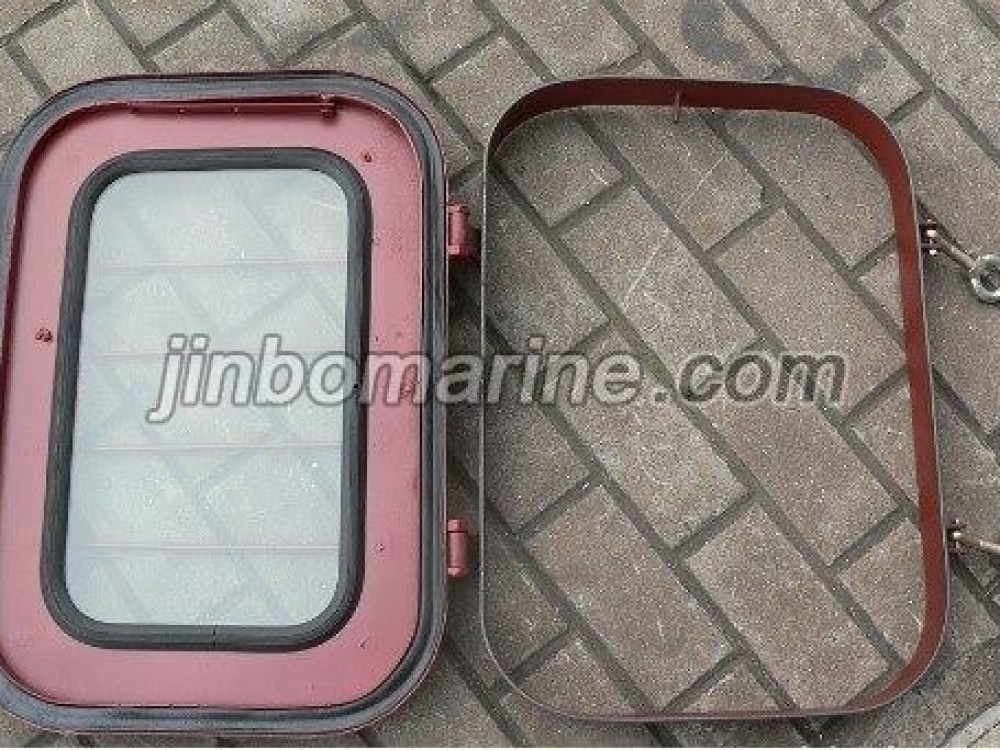

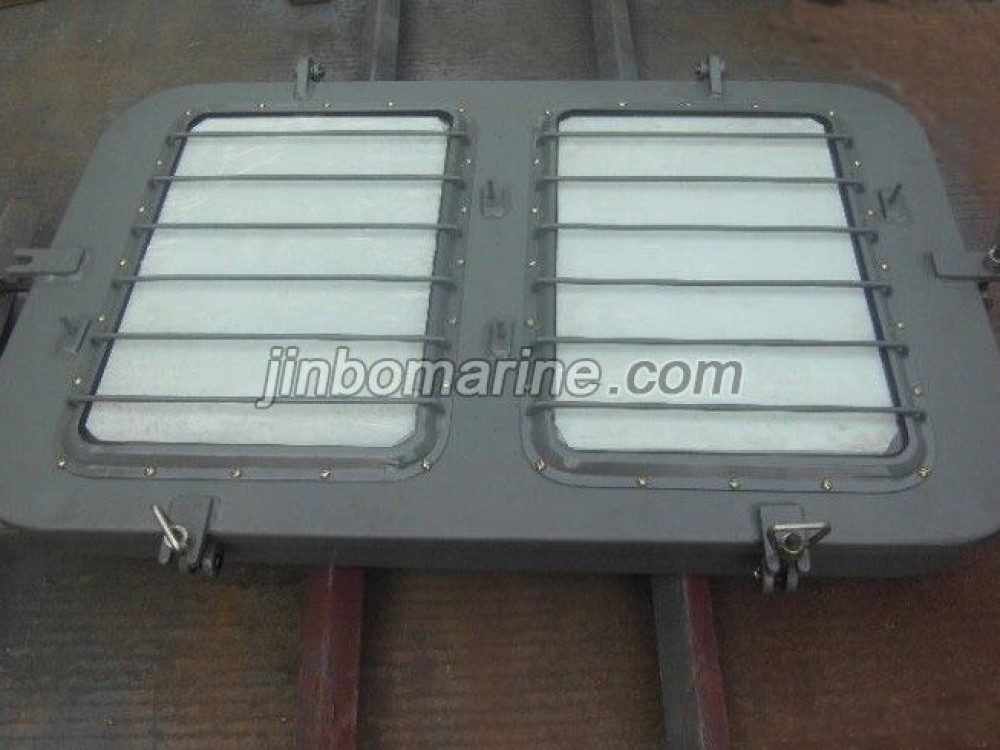

China Skylight:
Standard: CB/T487-1999
It is used on the exposed deck of superstructure or deck house.
Material: Caron Steel

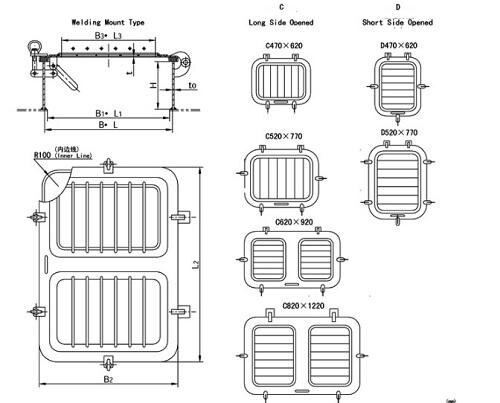

Type:
C type-Hinge on the long side(long side opened/closed)
D type-Hinge on the short side(short side opened/closed)
Main Size List(mm):
| TYPE | NOMINAL SIZE | OPENING SIZE | COVER SIZE | COAMING | CLEAR SIZE | SCREW CLIP | WEIGHT(kgs) | ||||
| BxL | B1xL1 | R | B2xL2 | Thick(t) | Thick(to) | H | B3xL3 | Diameter | Qty | ||
| C | 470x620 | 450x600 | 90 | 520x670 | 3 | 4 | 120 | 300x425 | M12 | 2 | 18.4 |
| 6 | 7 | 26.01 | |||||||||
| 520x770 | 500x750 | 90 | 570x820 | 3 | 4 | 120 | 355x500 | M12 | 4 | 23.83 | |
| 6 | 7 | 33.43 | |||||||||
| 620x920 | 600x900 | 90 | 670x970 | 6 | 7 | 120 | 2(300x425) | M16 | 4 | 48.78 | |
| 820x1220 | 800x1200 | 90 | 870x1270 | 6 | 7 | 120 | 2(400x560) | M16 | 5 | 70.46 | |
| D | 470x620 | 450x600 | 90 | 520x670 | 3 | 4 | 120 | 300x425 | M12 | 3 | 19.04 |
| 6 | 7 | 26.64 | |||||||||
| 520x770 | 500x750 | 90 | 570x820 | 3 | 4 | 120 | 355x500 | M12 | 5 | 25.03 | |
| 6 | 7 | 34.7 | |||||||||
