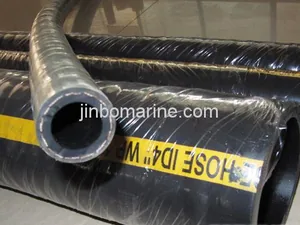

Steam Hose
- Category:Air and General Purpose Hose
- Material:EPDM
- Delivery Time:30 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Steam Hose:
- Used steam, saturated water
- High Temperature, Aging, Weather Resistance
- Working Temperature: -20 TO 150 ℃
- Safety Factory: 1:3
- Hose Lineing: EPDM
- Reinforcement Layer: Tire Cord with Helix Wire
- Cover Rubber Layer: EPDM
Main Specification
| ID | OD | WP | BP | Bending Radius | Plies | Weight | Length | ||||
| mm | inch | mm | inch | Mpa | bar | Mpa | bar | mm | B | kg/m | m |
| 12.5 | 1/2" | 25 | 1" | 1 | 10 | 3 | 30 | 180 | 2 | 0.8 | 20-50 |
| 16 | 5/8" | 29 | 1-1/4" | 1 | 10 | 3 | 30 | 210 | 2 | 1 | 20-50 |
| 19 | 3/4" | 32 | 1-1/4" | 1 | 10 | 3 | 30 | 240 | 2 | 1.1 | 20-50 |
| 22 | 7/8" | 34 | 1-2/5" | 1 | 10 | 3 | 30 | 280 | 2 | 1.2 | 20-50 |
| 25 | 1" | 38 | 1-1/2" | 1 | 10 | 3 | 30 | 375 | 2 | 1.5 | 20-50 |
| 31.5 | 1-1/4" | 46 | 2" | 0.8 | 8 | 2.4 | 24 | 420 | 3 | 1.8 | 20-50 |
| 38 | 1-3/5" | 52 | 2" | 0.8 | 8 | 2.4 | 24 | 500 | 3 | 2 | 20-50 |
| 45 | 1-3/4" | 60 | 2-1/2" | 0.8 | 8 | 2.4 | 24 | 610 | 3 | 2.2 | 20-50 |
| 51 | 2" | 65 | 2-1/2" | 0.8 | 8 | 2.4 | 24 | 630 | 3 | 2.5 | 20-50 |
| 57 | 2-1/4" | 72 | 2-4/5" | 0.8 | 8 | 2.4 | 24 | 850 | 3 | 2.8 | 20-50 |
