Superior Delta Anchor

  • Category:Offshore Anchor
  • Material:Casting Steel and High Quality Steel Plate
  • Certificate:ABS, LR, BV, DNV, GL, RINA, NK, KR, RS, IRS, CCS
  • Supply Ability:600Ton each Month
  • Delivery Time:30 days
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Superior Delta Anchor:

We supply the marine anchor for more than 7 years, including stockless anchor, offshore anchor, HHP anchor and other anchors.

High Force Triangle Anchors is one type of offshore anchor, the open construction of Delta Anchor offers for a smooth and excellent penetration in a variety of soils. The HHP anchor offers excellent efficiency (weight/ holding power) and easy dismantling for transport purposes. This anchor will hold true in the toughest conditions and will not rotate once it is set, which results in no decrease of holding capacity.

Superior Delta Anchor Specification:

Material: Steel Plate and Casting Steel.

Weight of âncora : 300kgs to 25000kgs

Class Certificate: ABS, LR, BV, DNV, GL, NK, CCS.

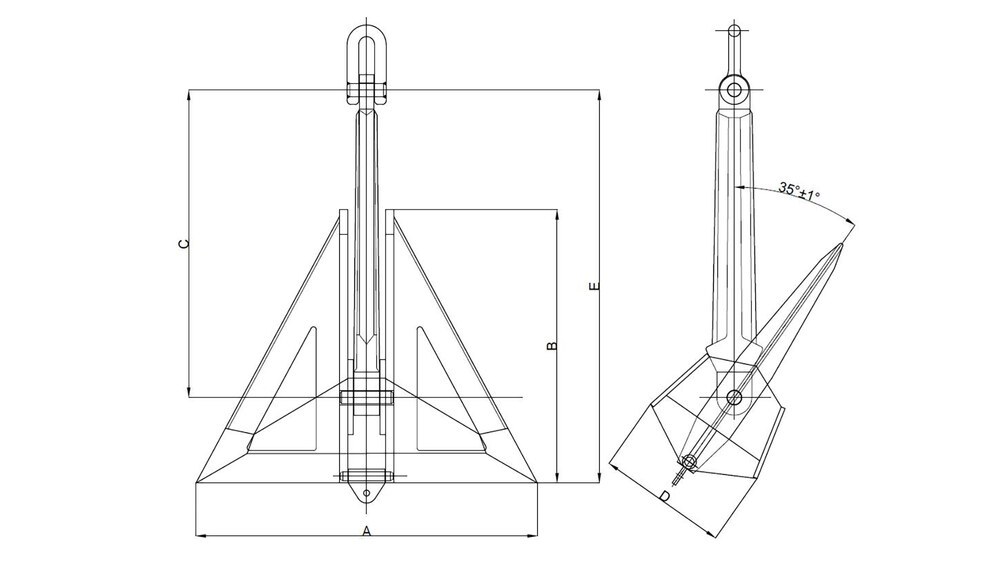

Superior Delta Anchor Dimension:

Weight/Mass
(KG) 		Size(mm)
A B C D E F
300KGS 1200 960 1080 457 1380 45
500KGS 1500 1200 1350 571 1725 50
1000KGS 1875 1500 1686 714 2155 62
1080KGS 1915 1530 1686 722 2200 62
2000KGS 2363 1890 2124 900 2715 82
3000KGS 2700 2160 2430 1028 3105 90
4000KGS 2975 2380 2676 1133 3420 100
5000KGS 3250 2600 2922 1238 3735 110
7000KGS 3575 2860 3216 1361 4100 117
7500KGS 3650 2925 3290 1390 4210 117
8000KGS 3730 2900 3360 1420 43000 130
9000KGS 3950 3160 3555 1504 4543 135
10000KGS 4100 3280 3690 1561 4715 140
12000KGS 4490 3575 4030 1695 5320 145
13500KGS 4670 3720 4195 1765 5535 150
15000KGS 4845 3875 4355 1830 5735 150
18000KGS 5140 4080 4610 1940 6080 160
20000KGS 5330 4260 4790 2010 6310 170
22500KGS 5490 4360 4905 2060 6470 180
25000KGS 5740 4590 5160 2165 6795 195

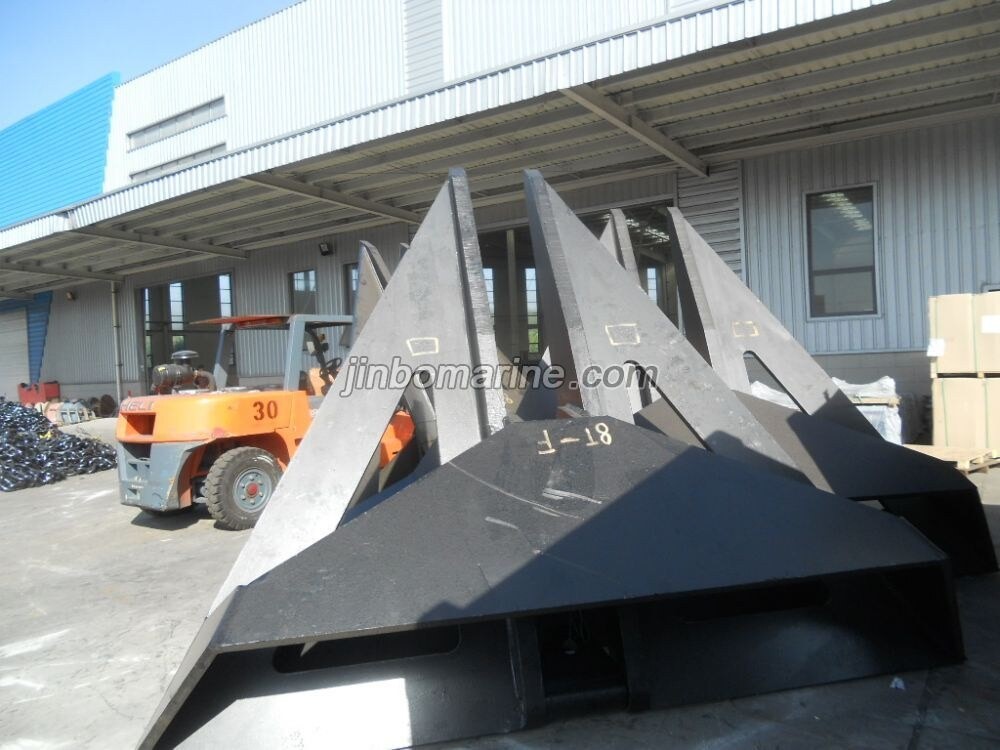

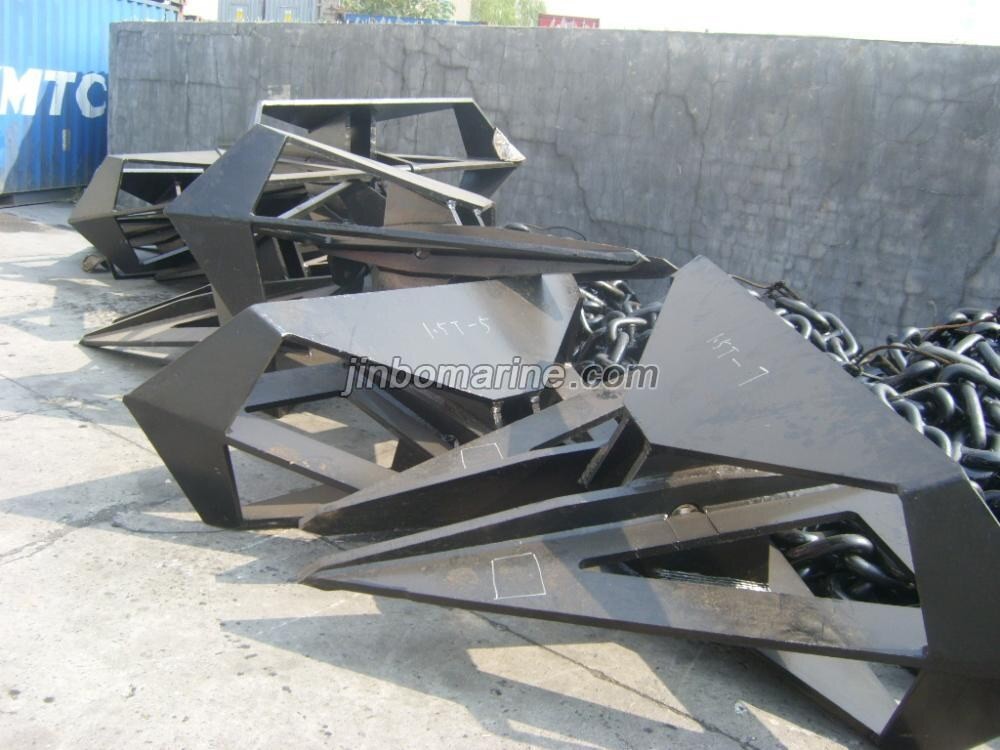

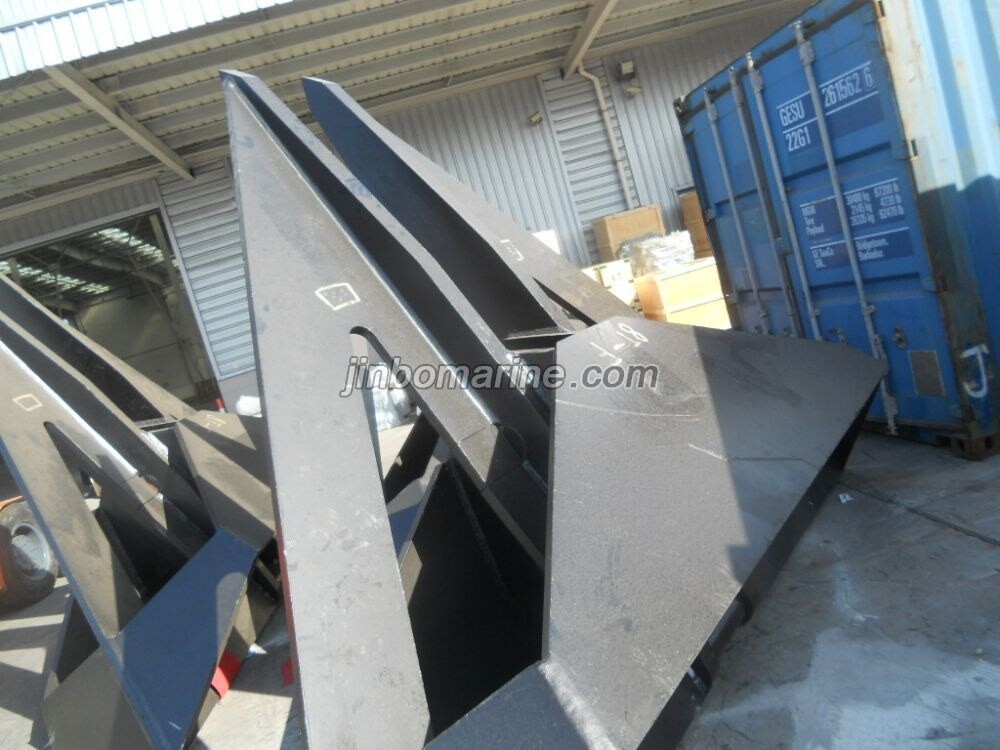

JB HHP Anchor Photo

8000KGS HHP Anchor

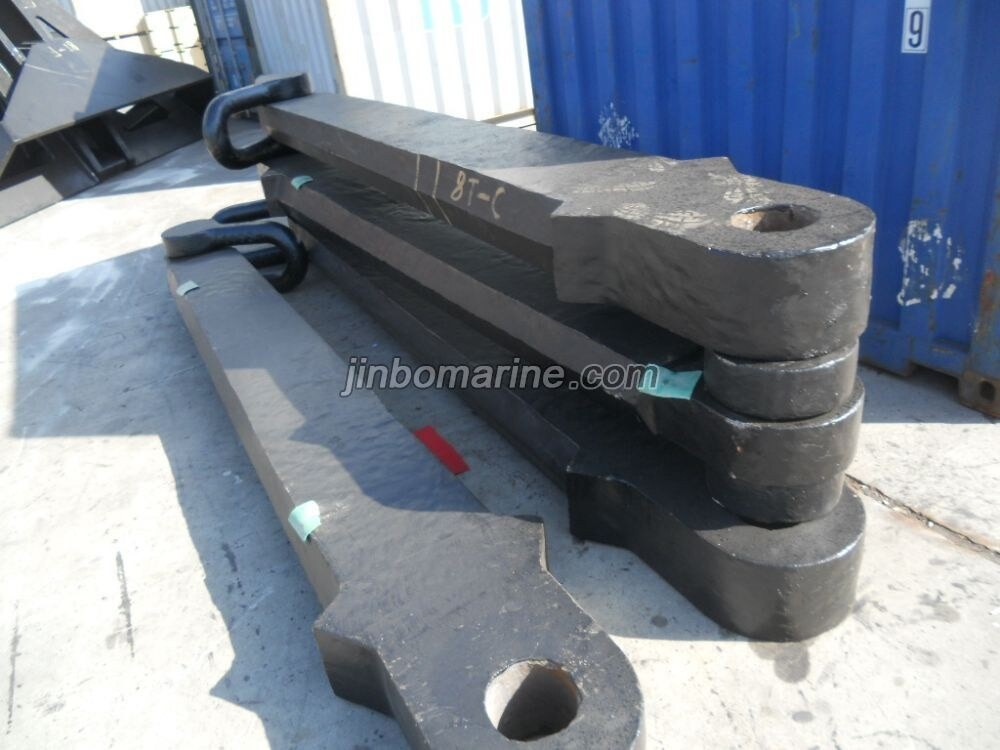

8000kgs HHP Anchor Shank

Proof Load for HHP(High Holding Power) âncora

Mass of anchor Proof test load Mass of anchor Proof test load Mass of achor Proof test load Mass of anchor Proof test load Mass of anchor Proof test load Mass of anchor Proof test load
Kg kN Kg kN Kg kN Kg kN Kg kN Kg kN
38 23.2 413 125 1650 376 3600 645 5850 861 13125 1390
41 25.2 450 132 1725 388 3675 653 6000 877 13500 1410
45 27.1 488 140 1800 401 3750 661 6150 892 13875 1440
49 28.9 525 149 1875 414 3825 669 6300 908 14250 1470
53 30.7 563 158 1950 427 3900 677 6450 922 14625 1490
56 32.4 600 166 2025 438 3975 685 6600 936 15000 1520
60 33.9 638 175 2100 450 4050 691 6750 949 15750 1570
68 36.3 675 182 2175 462 4125 699 6900 961 16500 1620
75 39.1 713 191 2250 474 4200 706 7050 975 17250 1670
90 44.3 750 199 2325 484 4275 713 7200 987 18000 1720
105 49.1 788 208 2400 495 4350 721 7350 999 18750 1770
120 53.3 825 216 2475 506 4425 728 7500 1010 19500 1800
135 57.4 863 224 2550 517 4500 735 7875 1040 20250 1850
150 61.3 900 231 2625 528 4575 740 8250 1070 21000 1900
169 66.8 938 239 2700 537 4650 747 8625 1090 21750 1940
188 70.4 975 247 2775 547 4725 754 9000 1110 22500 1990
206 74.9 1013 255 2850 557 4800 760 9375 1130 23250 2030
225 79.6 1050 262 2925 567 4875 767 9750 1160 24000 2070
244 84.2 1088 270 3000 577 4950 773 10125 1180 25500 2160
263 88.8 1125 278 3075 586 5025 779 10500 1210 27000 2250
281 93.4 1200 292 3150 595 5100 786 10875 1230 28500 2330
300 97.9 1275 307 3225 604 5175 795 11250 1260 30000 2410
319 103 1350 321 3300 613 5250 804 11625 1270 31500 2490
338 107 1425 335 3375 622 5400 818 12000 1300 33000 2570
356 112 1500 349 3450 631 5550 832 12375 1330 34500 2650
375 116 1575 362 3525 638 5700 845 12750 1360 36000 2730
