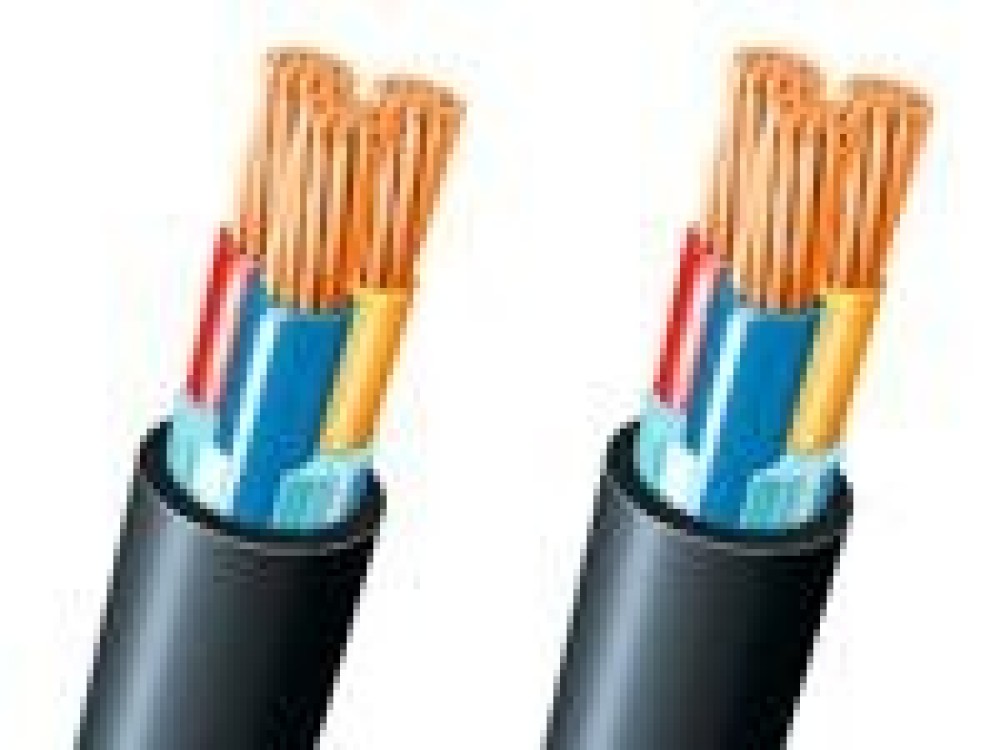

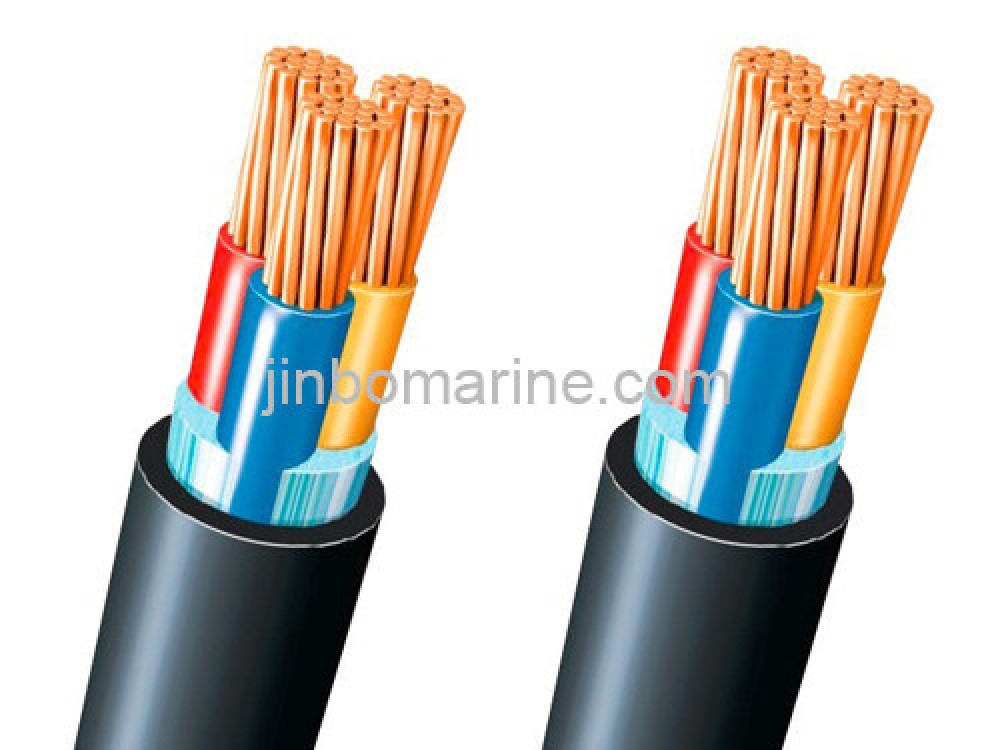

TXXI Fire Resistant Marine Power & Control Unarmoured Cable 0.6/1KV (Light Weig

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China TXXI Fire Resistant Marine Power & Control Unarmoured Cable 0.6/1KV (Light Weig:

TXXI Flame Retardant Power & Control is un-armoured cableļ¼ˆ Light Weight Type).One-Stop Service, High quality, Professional and Fast Delivery, we would be your reliable partner.

Cable Construction

Conductor: Tinned Copper. IEC 60228 Class 2

Insulation : XLPE Insulation

Inner Covering: None

Armour : None

Outer Sheath : Halogen-free Thermoplastic Polyolefin(SHF1)

Standards

Design : IEC 60092-350, 353

Insulation Material : IEC 60092 -351

Sheath Material : IEC 60092-359

Flammability: IEC 60332-1 & IEC 60332-3 Category A

Halogen--free: IEC60754-1, IEC60754-2

Smoke Emission: IEC 61034-1, IEC61034-2

Cores & Size

Cores: 1, 2,3,4,5,7,10,12,14,16,19,24

Size (sqmm): 1.5, 2.5. 4, 6, 10, 16, 25, 35, 50, 70, 95, 120, 150, 180, 240, 300

Feature

Halogen-free, Low Smoke, Flame retadant

Application

The cable is fixed installation on ships and offshore units, used for power, lighting and control.
