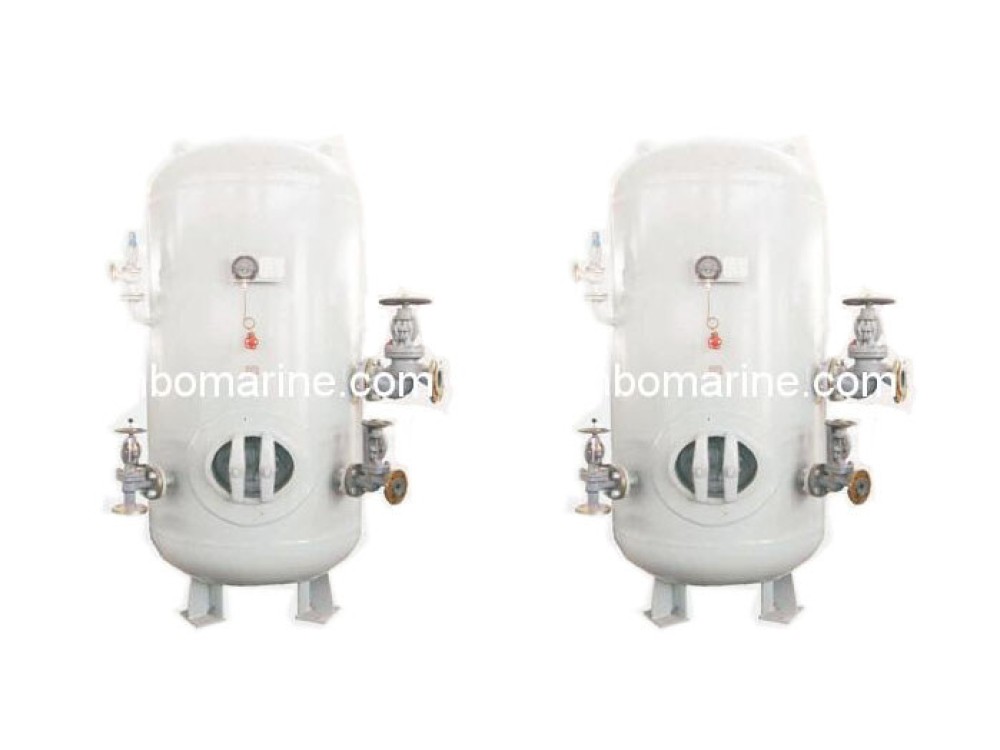

Type A Vertical Marine Air Receiver
- Category:Marine Air Receiver
- Material:Steel
- Standards:CB/T493-1996
- Packing Details:Standard Export Packaging
- Delivery Time:15-20days
- Supply Ability:15 sets/month
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Type A Vertical Marine Air Receiver:
Type A Vertical Marine Air Receiver is made up of bottle valve and steel body. Body has handhole(or manhole) for easy wash and examination.
And bottle valve set up inlet/outlet valve, safety valve, pressure gauge and pressure guage valve, drain valve, etc.
Main Specification
| Style | Type | Capacity(m3) | W.P. Mpa | Inner Dia mm | Height mm | Weight kg |
| A | A0.05-1.0 | 0.05 | 1 | 300 | 1050 | 70 |
| A0.10-1.0 | 0.1 | 400 | 1270 | 125 | ||
| A0.16-1.0 | 0.16 | 400 | 1750 | 155 | ||
| A0.25-1.0 | 0.25 | 500 | 1760 | 180 | ||
| A0.32-1.0 | 0.32 | 500 | 2170 | 248 | ||
| A0.40-1.0 | 0.4 | 600 | 1865 | 260 | ||
| A0.05-3.0 | 0.05 | 3 | 300 | 1050 | 100 | |
| A0.08-3.0 | 0.08 | 300 | 1360 | 120 | ||
| A0.10-3.0 | 0.1 | 400 | 1270 | 165 | ||
| A0.16-3.0 | 0.16 | 400 | 1750 | 215 | ||
| A0.25-3.0 | 0.25 | 500 | 1760 | 195 | ||
| A0.32-3.0 | 0.32 | 500 | 2100 | 345 | ||
| A0.40-3.0 | 0.4 | 600 | 1865 | 410 | ||
| A0.50-3.0 | 0.5 | 600 | 2270 | 450 |
