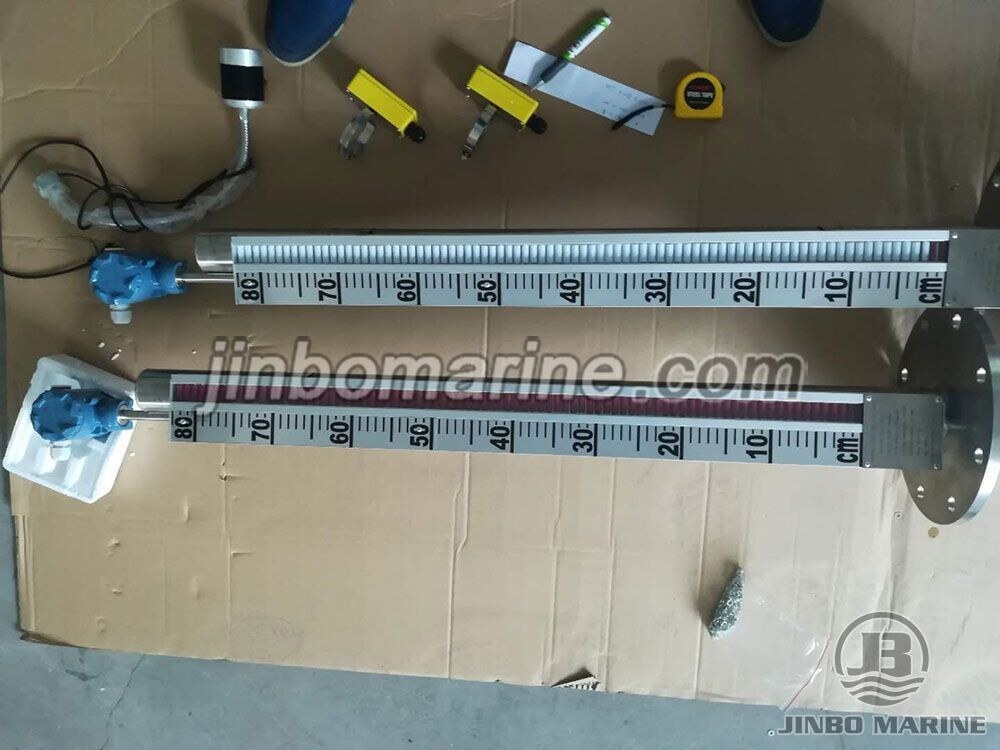

UHZ-515 Type Marine Magnetic Float Type Level Gauge
- Category:Marine Level Gauge
- Certificate:CCS,GL,LR,BV,ABS,DNV GL,RINA,NK,KR ETC.
- Packing Details:Carton packaging.
- Delivery Time:about 7 to 10 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Product Description:
UHZ-515(top mounting type) magnetic float type level gauge are used to measure and control liquid level of liquid medium in underground tank.
Main Technical Specification:
Indication accuracy: ±20mm
Nonimal length: 0.5 meter to 3 meter
Medium gravity: equal or greater than 0.8
Working temperature 1.6MPa
Medium temperature: equal or less than 150 centigrade
Medium viscosity:equal or less than 0.01pa.S
Connection flange:CBM1012-81 DN125 PN5
Alarm switch: AC220V 1.0A retaining type(optional)
Output signal :DC24V 4~20mA (optional)

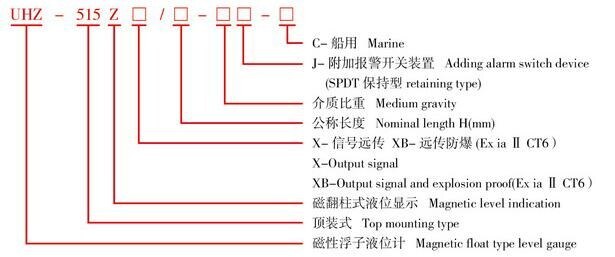

Model Sign:

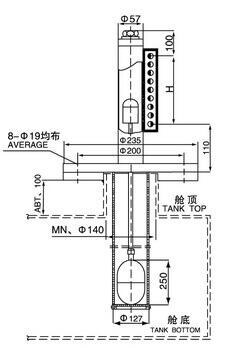

Overall Dimension:
