UHZ Marine Magnetic Float Type Level Gauge

  • Category:Marine Level Switch
  • Certificate:CCS,GL,LR,BV,ABS,DNV GL,RINA,NK,KR ETC.
  • Delivery Time:About 7 to 10 days
  • Packing Details:Carton packaging.
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.

Details

Product Description:

It can be used to measure and control the liquid level of tank in ship or other industrial equipment.

It is use for measure the normal temperature liquid.

Main Technical Specification:

Indication accuracy: ±20mm

Nonimal length: 0.5 meter to 6 meter

Medium gravity: equal or greater than 0.5
Working temperature 1.0(1.6,2.5)MPa

Medium temperature: equal or less than 120 centigrade

Connection flange:GB2506-2005 DN20 PN16

Alarm switch: AC220V 1.0A retaining type(optional)

Output signal :DC24V 4~20mA (optional)

Matched valve:shut-off valve ,self-close valve,ball valve(optional)

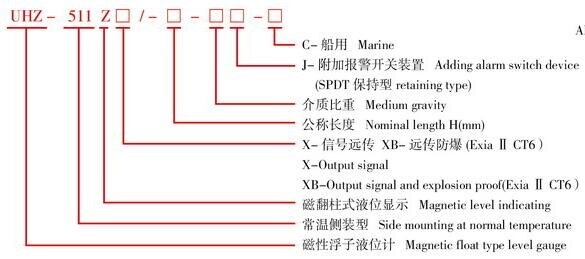

Model Sign:

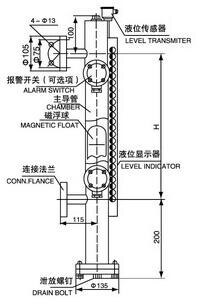

Overall Length:
