UQK-03-C Top Mounted Marine Float Level Controller Picture

UQK-03-C Top Mounted Marine Float Level Controller

Category:Marine Level Switch
Certificate:CCS,GL,LR,BV,ABS,DNV GL,RINA,NK,KR ETC.

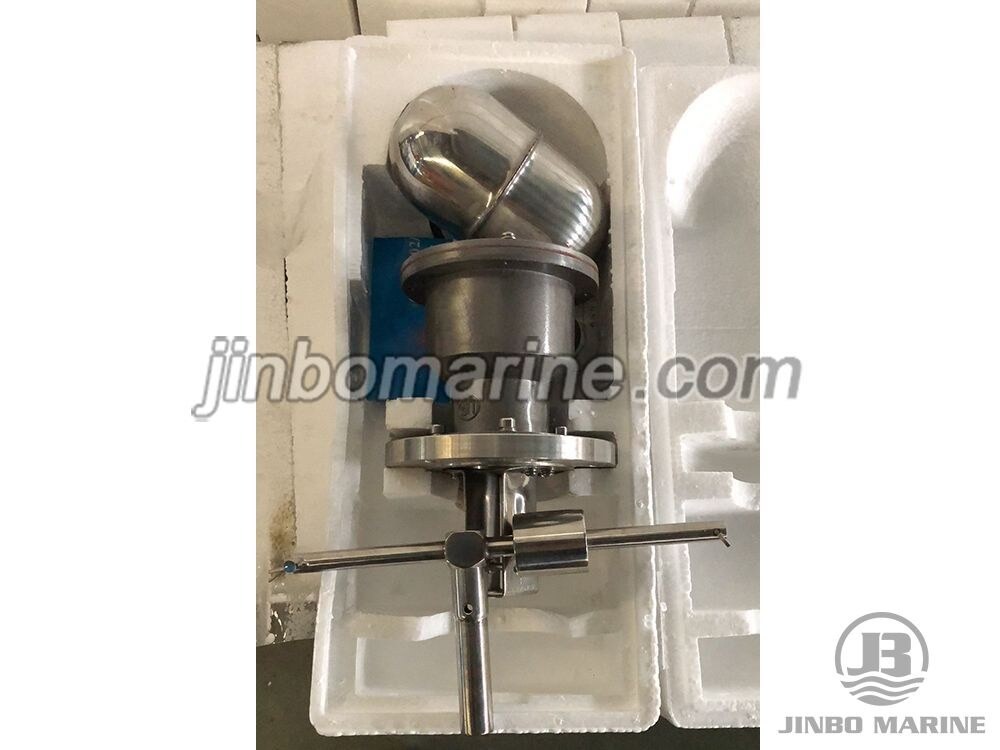

Packing Details:Carton packaging.
Delivery Time:about 7 to 10 days
Fob Price:Get Latest Price Now
Place of Origin:China

Request a Quote Not what you need, please send your RFQs via Email.

Details

Product Specification:

Marine Float Level Controller UQK-03-C is widely used in the ship chemical industry and other industrial instrument to carry two place controlling and alarm to the level in liquid tank.

It is Top mounted type.

If client need,it can be equip with self test device,and it can be explosion proof type.

Control range: 8 to 1000mm.

Nominal pressure: ≤1Mpa

Medium temperature: ≤120℃

Explosion proof type: Ex d II CT3~T6, Ex ia II CT3~T5.

Protection: IP66 or IP68

Model	Control range	Regulated type	Mounting position	Contact capacity	Float diameter(mm)
UQK-01-C	15~30	Fixed value Unadjustable	Horizontal mounting	SPDT AC 220V 1.5A suit for 250VAC 10A DC125V 0.6A 2 x SPDT(optional	50 60 76
UQK-01-C-B
UQK-01-C	25~550	Can be adjust by step	Top mounting
UQK-02-C			Horizontal mounting		50 60 76
UQK-02-C-B

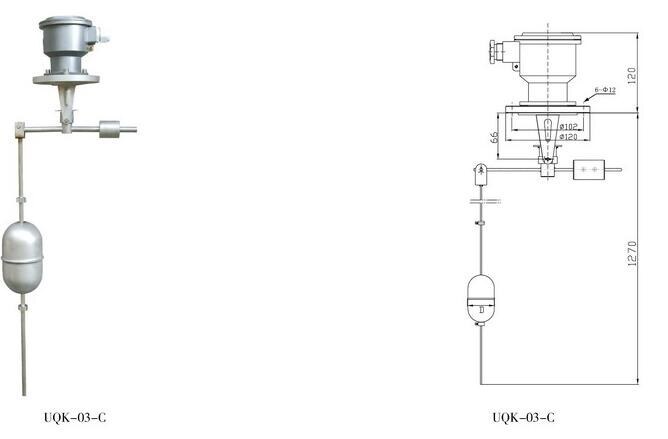

UQK-03-C	8~1000	Stepless,adjustable	Top mounting		76

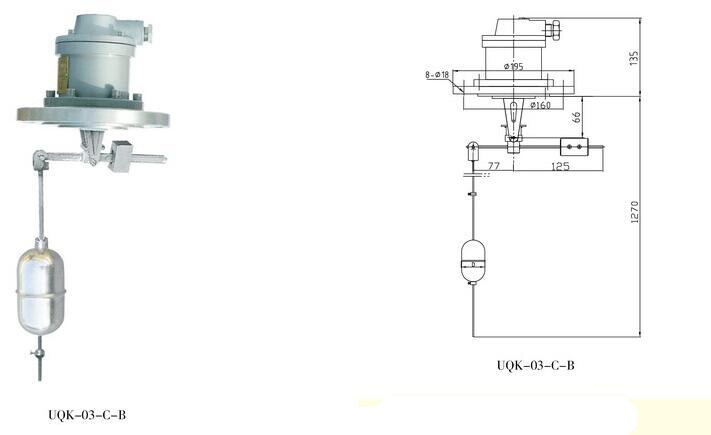

UQK-03-C-B
