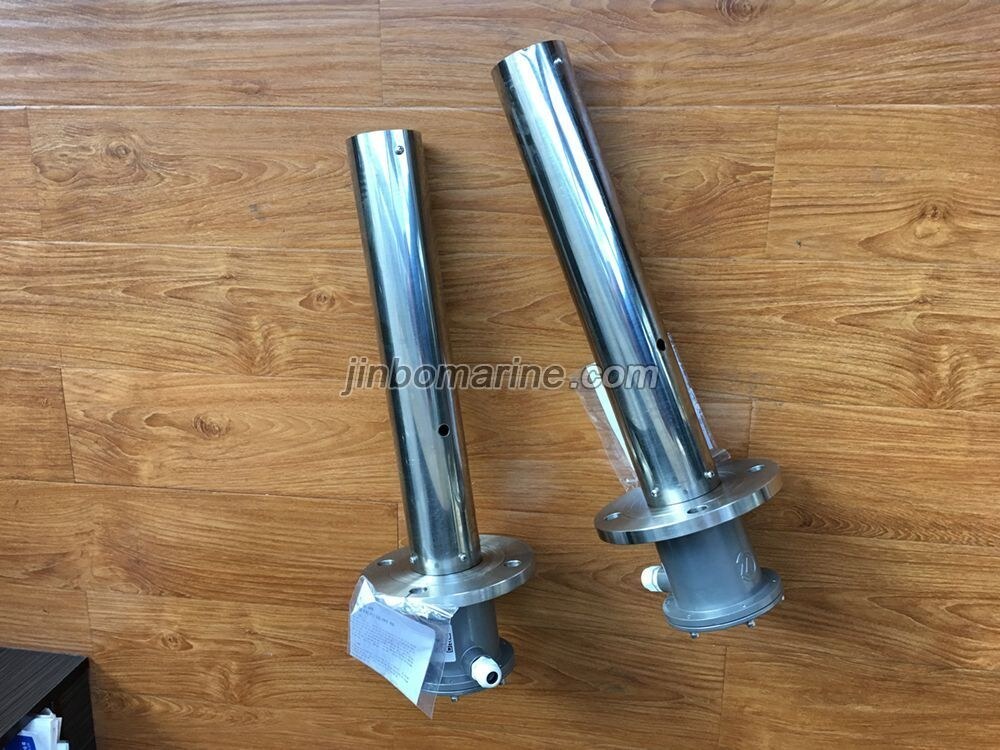

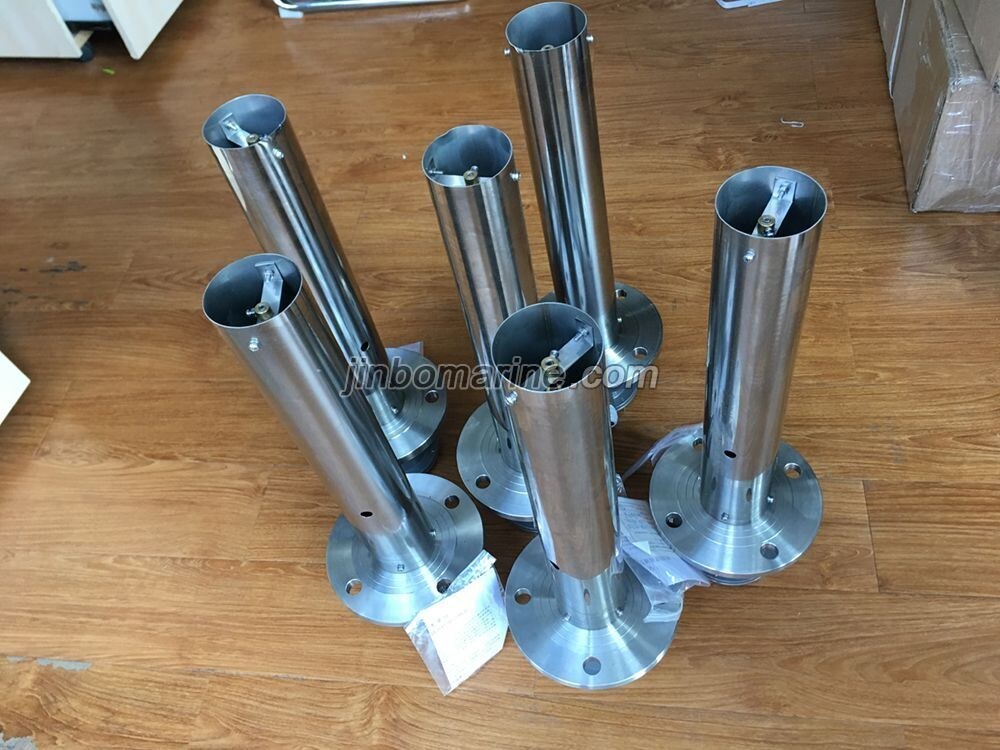

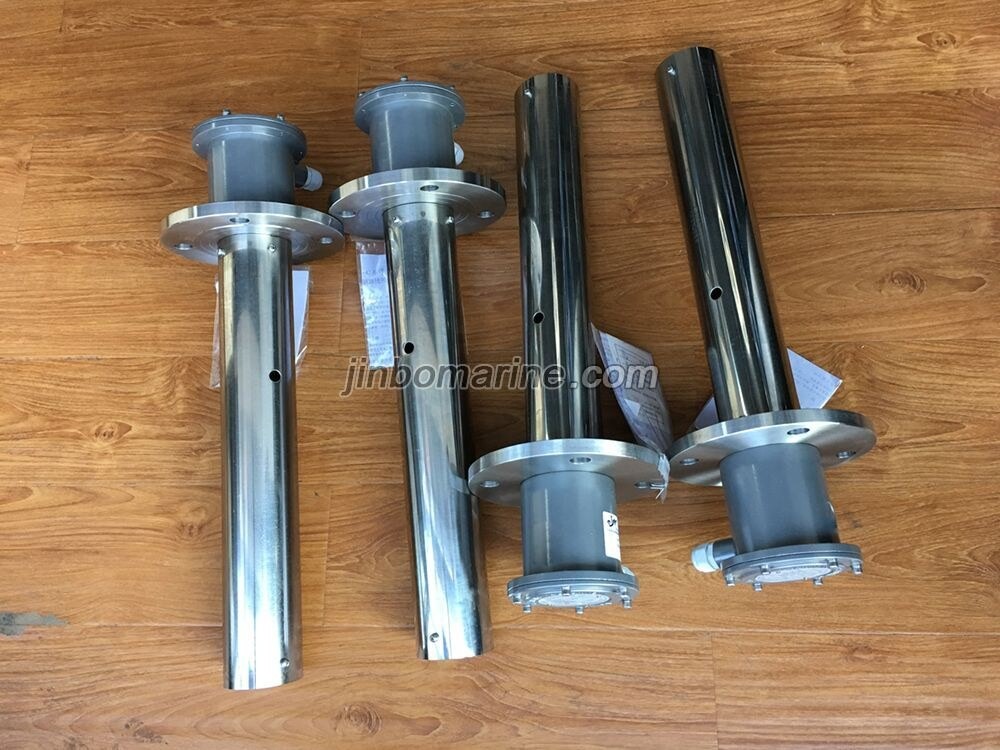

UQK-652-C Type Float Level Controller
- Category:Marine Level Switch
- Delivery Time:About 7 to 10 days
- Certificate:CCS,GL,LR,BV,ABS,DNV GL,RINA,NK,KR ETC.
- Packing Details:Carton packaging.
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Product Description:
It is widely used in ship,chemcial industry and other equipment to control and alarm the level in tank by two position type.
Main Technical Specification:
Top mounting.
Accuracy: <20mm
Switch TYpe :SPDT
Medium temperature: ≤ 150 ℃
Working pressure:1.0MPa
Protection:IP66 /IP68
| Model | Mounting type | Switch type | Switching error(mm) | Dead zone | Medium Gravity | Protective tube diameter(mm) | Float diameter(mm) | |
| Upper part | Lower part | |||||||
|
UQK-651-C UQK-651-C-B |
Horizontal mounting | SPDT | 20~70 | --- | --- | 0.8~1.2 | --- | 60 |
|
UQK-652-C UQK-652-C-B |
Top mounting | 10~40 | <150 | <150 | 76mm | 60 | ||
|
UQK-651-C UQK-651-C-B |
Flange standard |
GB 2506-2005 GB/T 46-2007 651-C PN0.6 DN65 652-C PN0.6 DN80 652-B PN1.0 DN125 |

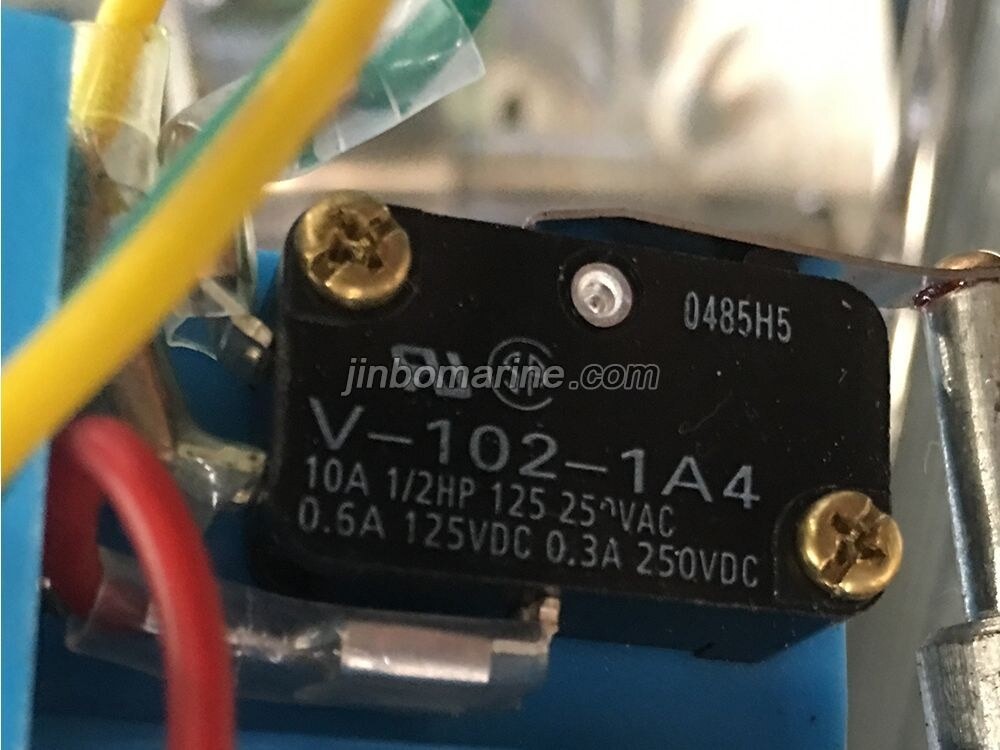

Contact capacity:SPDT AC250V 10A DC125V 0.6A 2xSPDT (optional) |
Exd II CT3~T6 Ex ia II CT3-T6 | --- | 60 | ||
|
UQK-652-C UQK-652-C-B |
Range (mm) L0 |
300~2500mm | 76mm | 60 | ||||

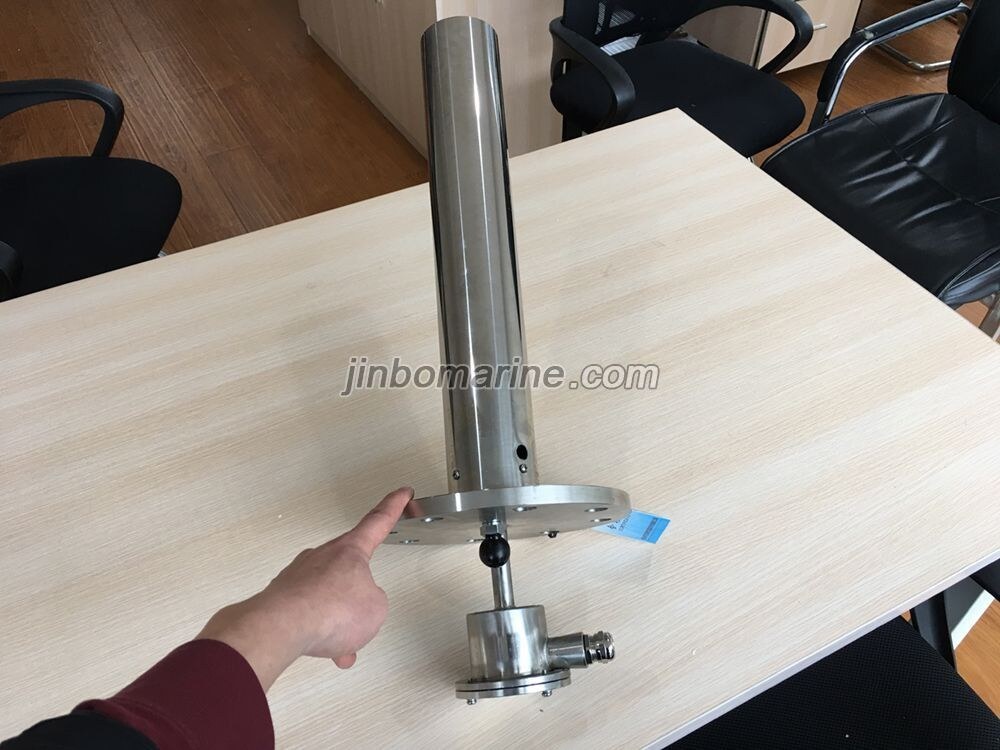

UQK-652-C Type Float Level Controller With Self Test Device
