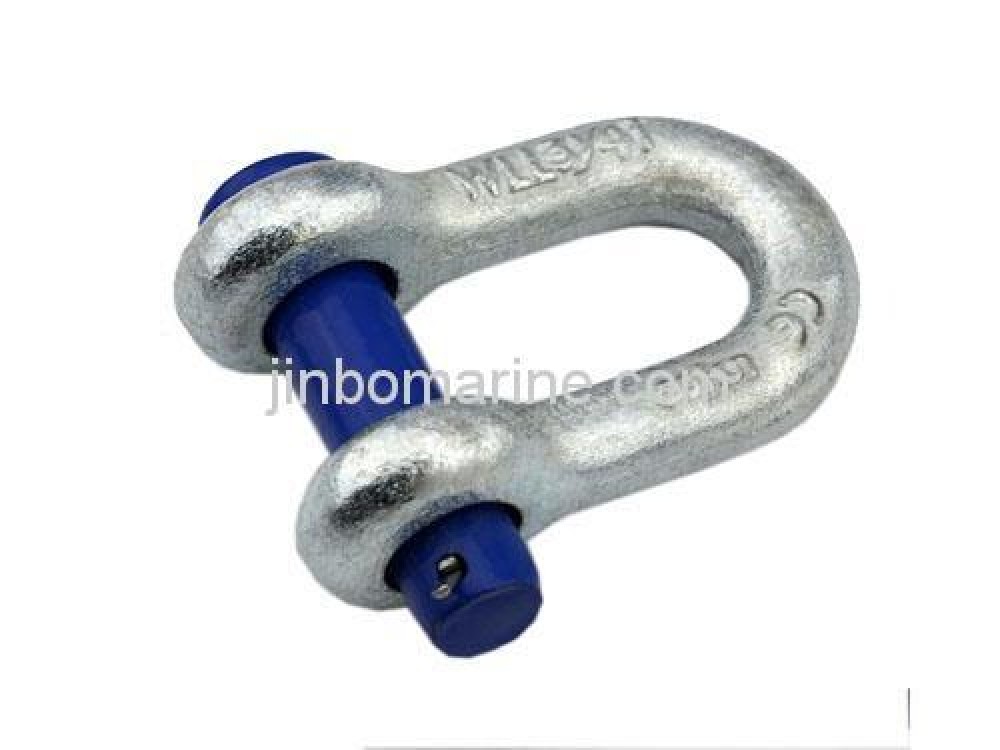

US Type Bolt Anchor Shackle G215
- Category:Shackle
- Material:45# Steel and 40Cr Steel
- Packing Details:Wooden Box
- Delivery Time:20 Days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Similar Name
US Type Screw Pin Chain Shackles G-215
US Type Bolt Chain Shackle G-215
US Type Straight Shackle G-215
US Type High Strength Shackle G-215
US Type Alloy Steel Shackle G-215
Main Specification
- U type body and a lateral pin.
- Drop Forged
- 45# Steel and 40Cr Steel
- Used in lifting or fasten cargo or machinery purpose.

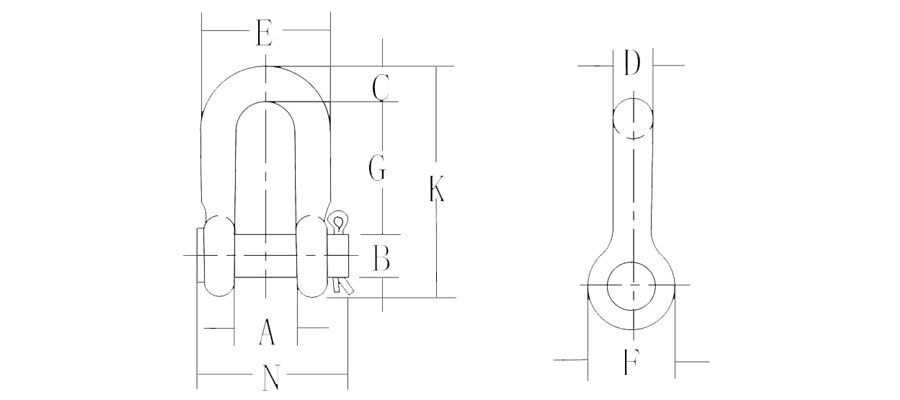

Size Table
| Nominal Size(in) |
WLL (Tons) |
Dimension(in) | Weight(lbs) | ||||||||
| A | B | C | D | E | F | G | K | N | G215/S215 | ||
| 1/4 | 1/2 | 0.47 | 0.31 | 0.25 | 0.25 | 0.97 | 0.62 | 0.91 | 1.59 | 1.34 | 0.13 |
| 5/16 | 3/4 | 0.53 | 0.38 | 0.31 | 0.31 | 1.15 | 0.75 | 1.07 | 1.91 | 1.63 | 0.18 |
| 3/8 | 1 | 0.66 | 0.44 | 0.38 | 0.38 | 1.42 | 0.92 | 1.28 | 2.31 | 1.86 | 0.29 |
| 7/16 | 1 1/2 | 0.75 | 0.5 | 0.44 | 0.44 | 1.63 | 1.06 | 1.48 | 2.67 | 2.13 | 0.38 |
| 1/2 | 2 | 0.81 | 0.63 | 0.5 | 0.5 | 1.81 | 1.18 | 1.66 | 3.03 | 2.38 | 0.71 |
| 5/8 | 3 1/4 | 1.06 | 0.75 | 0.63 | 0.63 | 2.32 | 1.5 | 2.04 | 3.76 | 2.91 | 1.5 |
| 3/4 | 4 3/4 | 1.25 | 0.88 | 0.81 | 0.75 | 2.75 | 1.81 | 2.4 | 4.53 | 3.44 | 2.32 |
| 7/8 | 6 1/2 | 1.44 | 1 | 0.97 | 0.88 | 3.2 | 2.1 | 2.86 | 5.33 | 3.81 | 3.49 |
| 1 | 8 1/2 | 1.69 | 1.13 | 1 | 1 | 3.69 | 2.38 | 3.24 | 5.94 | 4.53 | 5 |
| 1 1/8 | 9 1/2 | 1.81 | 1.25 | 1.25 | 1.13 | 4.07 | 2.68 | 3.61 | 6.78 | 5.13 | 6.97 |
| 1 1/4 | 12 | 2.03 | 1.38 | 1.38 | 1.25 | 4.53 | 3 | 3.97 | 7.5 | 5.5 | 9.75 |
| 1 3/8 | 13 1/2 | 2.25 | 1.5 | 1.5 | 1.38 | 5.01 | 3.31 | 4.43 | 8.28 | 6.13 | 13.25 |
| 1 1/2 | 17 | 2.38 | 1.63 | 1.62 | 1.5 | 5.38 | 3.62 | 4.87 | 9.05 | 6.5 | 17.25 |
| 1 3/4 | 25 | 2.88 | 2 | 2.12 | 1.75 | 6.38 | 4.19 | 5.82 | 10.97 | 7.75 | 29.46 |
| 2 | 35 | 3.25 | 2.25 | 2.36 | 2.1 | 7.25 | 5 | 6.82 | 12.74 | 8.75 | 45.75 |
