W11S Series Upper-roller Universal Plate Rolling Machine For Shipyard
- Category:Shipbuilding Steel
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

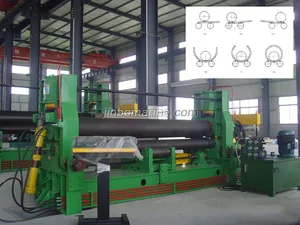

W11S Series Upper-roller Universal Plate Rolling Machine
It is a hydraulic 3-roller rolling machine. It is used at room temperature and with this machine you can finish all the processes including pre-bending(end-bending), rolling a plate and setting it round at one time without turning back after feeding the plate.
W11S Series Upper-roller Universal Plate Rolling Machine Technical Specifications
| Model | Pressure | Max bending thickness | Max rolling | Upper roller | Down roller | Rollers | Motor kw | |||
| (mm) | length | diameter | diameter | distance | ||||||
| Pre-bending | Max bending | Driving | Hydraulic | Moving | ||||||
| (Ton) | mm | mm | mm | mm | mm | mm | ||||
| W11S-6x1500 | 25 | 4.8 | 6 | 1500 | 175 | 125 | 160 | 3 | 2.2 | 0.75 |
| W11S-6x2000 | 25 | 4.8 | 6 | 2000 | 195 | 125 | 160 | 3 | 2.2 | 0.75 |
| W11S-6x2500 | 25 | 4.8 | 6 | 2500 | 205 | 135 | 180 | 3 | 2.2 | 0.75 |
| W11S-6x3000 | 37 | 4.8 | 6 | 3000 | 215 | 135 | 180 | 4 | 2.2 | 0.75 |
| W11S-8x1500 | 25 | 6.4 | 8 | 1500 | 175 | 125 | 160 | 3 | 2.2 | 0.75 |
| W11S-8x2000 | 25 | 6.4 | 8 | 2000 | 195 | 125 | 160 | 3 | 2.2 | 0.75 |
| W11S-8x2500 | 37 | 6.4 | 8 | 2500 | 205 | 135 | 180 | 4 | 2.2 | 0.75 |
| W11S-8x3000 | 45 | 6.4 | 8 | 3000 | 215 | 135 | 180 | 4 | 2.2 | 0.75 |
| W11S-10x1500 | 37 | 8 | 10 | 1500 | 205 | 135 | 180 | 4 | 2.2 | 0.75 |
| W11S-10x2000 | 45 | 8 | 10 | 2000 | 215 | 135 | 180 | 4 | 2.2 | 0.75 |
| W11S-10x2500 | 45 | 8 | 10 | 2500 | 235 | 135 | 180 | 4 | 2.2 | 0.75 |
| W11S-10x3000 | 65 | 8 | 10 | 3000 | 245 | 135 | 180 | 5.5 | 4 | 0.75 |
| W11S-10x4000 | 75 | 8 | 10 | 4000 | 255 | 150 | 245 | 7.5 | 4 | 1.1 |
| W11S-12x2000 | 65 | 9.6 | 12 | 2000 | 250 | 145 | 200 | 5.5 | 4 | 0.75 |
| W11S-12x2500 | 65 | 9.6 | 12 | 2500 | 255 | 150 | 245 | 5.5 | 4 | 0.75 |
| W11S-12x3000 | 75 | 9.6 | 12 | 3000 | 270 | 150 | 245 | 7.5 | 4 | 1.1 |
| W11S-12x6000 | 100 | 9.6 | 12 | 6000 | 290 | 150 | 245 | 15 | 5.5 | 1.5 |
| W11S-16x2000 | 75 | 12.8 | 16 | 2000 | 255 | 150 | 245 | 7.5 | 4 | 1.1 |
| W11S-16x2500 | 100 | 12.8 | 16 | 2500 | 270 | 150 | 245 | 15 | 5.5 | 1.5 |
| W11S-16x3200 | 100 | 12.8 | 16 | 3200 | 290 | 150 | 245 | 15 | 5.5 | 1.5 |
| W11S-16x6000 | 190 | 12.8 | 16 | 6000 | 300 | 165 | 270 | 22 | 7.5 | 4 |
| W11S-20x2000 | 100 | 16 | 20 | 2000 | 325 | 165 | 270 | 15 | 5.5 | 1.5 |
| W11S-20x2500 | 130 | 16 | 20 | 2500 | 330 | 180 | 300 | 15 | 5.5 | 1.5 |
| W11S-20x3000 | 160 | 16 | 20 | 3000 | 350 | 180 | 300 | 18.5 | 7.5 | 2.2 |
| W11S-25x2500 | 190 | 20 | 25 | 2500 | 350 | 180 | 300 | 18.5 | 7.5 | 2.2 |
| W11S-30x2500 | 230 | 25 | 30 | 2500 | 410 | 235 | 380 | 30 | 11 | 4 |
| W11S-30x3000 | 380 | 25 | 30 | 3000 | 459 | 250 | 400 | 30 | 11 | 4 |
| W11S-40x2500 | 380 | 35 | 40 | 2500 | 500 | 275 | 460 | 45 | 22 | 5.5 |
| W11S-40x3200 | 430 | 35 | 40 | 3200 | 540 | 290 | 500 | 55 | 22 | 5.5 |
| W11S-50x2500 | 540 | 45 | 50 | 2500 | 590 | 340 | 610 | 45 | 22 | 11 |
