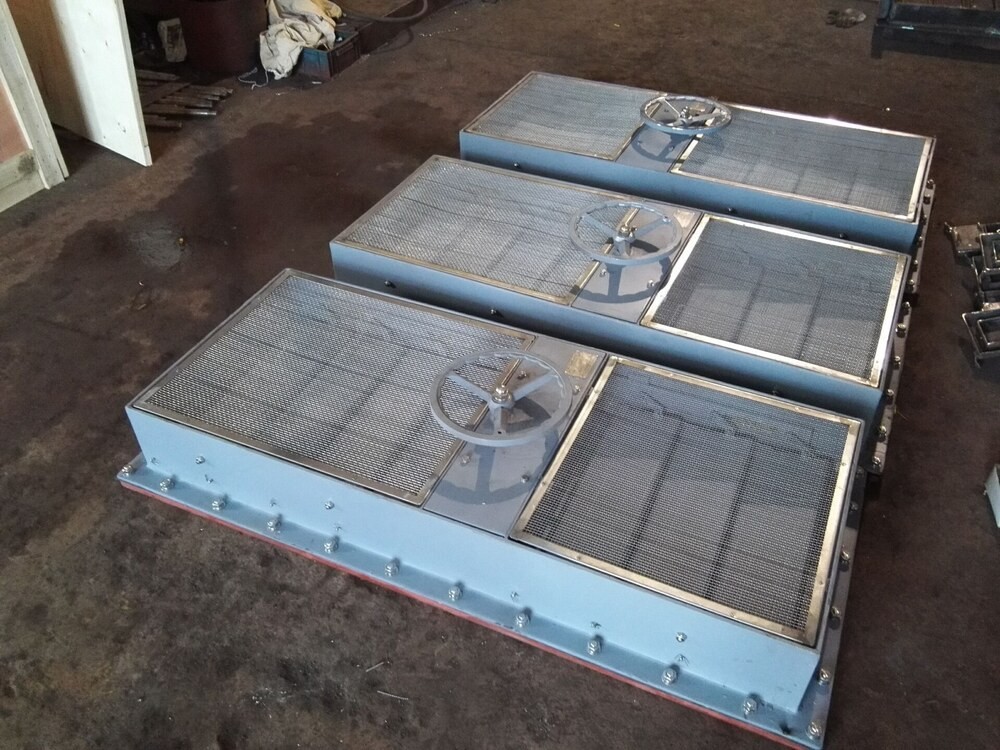

Watertight Louver without Cover

Request a Quote Not what you need, please send your RFQs via Email.

Details

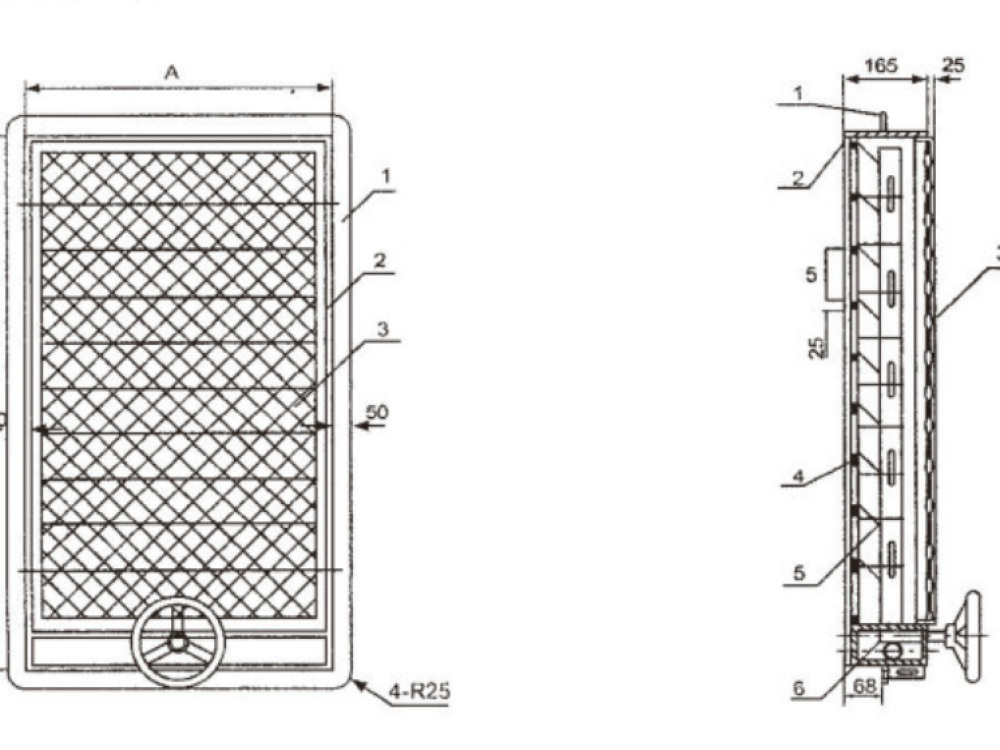

Watertight Louver without Cover Drawing

Watertight Louver without Cover Drawing

China Watertight Louver without Cover:

Watertight Louver without Cover is especially used on the ventilation area with big size, watertight requirement but wihtout enough operation space.

Main Parts and Material:

Frame: Carbon Steel Q235B

Board: Carbon Steel Q235B

Blade: Carbon Steel Q235B

Insect Net: SUS304

Long Link: Carbon Steel Q235B

Handwheel: Stainless Steel or Carbon Steel with Galvanization

Remarks:

1. The handwheel can be installed on the middle, upper or lower parts according the actual situation.

2. When A is bigger than 100mm, 2groups of windows are parallel, and 2pcs of handwheel should be used.

3. According to the customer's requirement, the handle transmission, pneumatic or electric control can be installed.

4. The size is decided by the customer.
