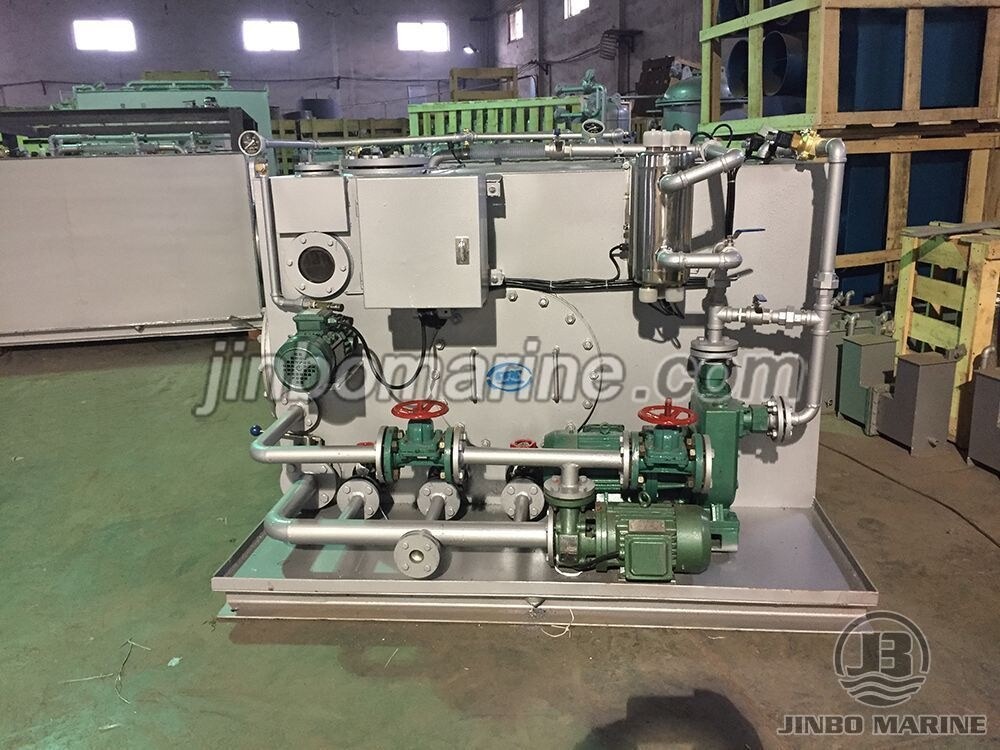

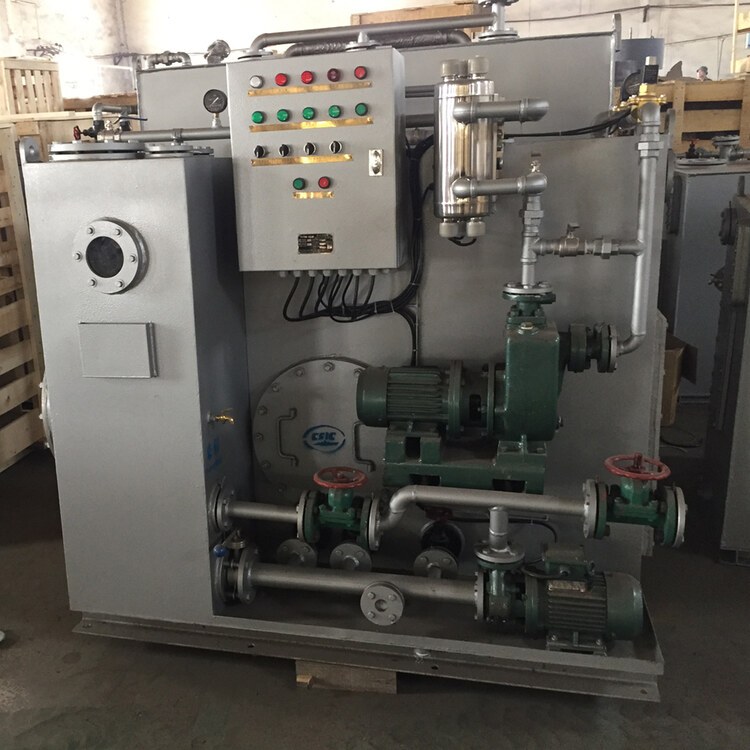

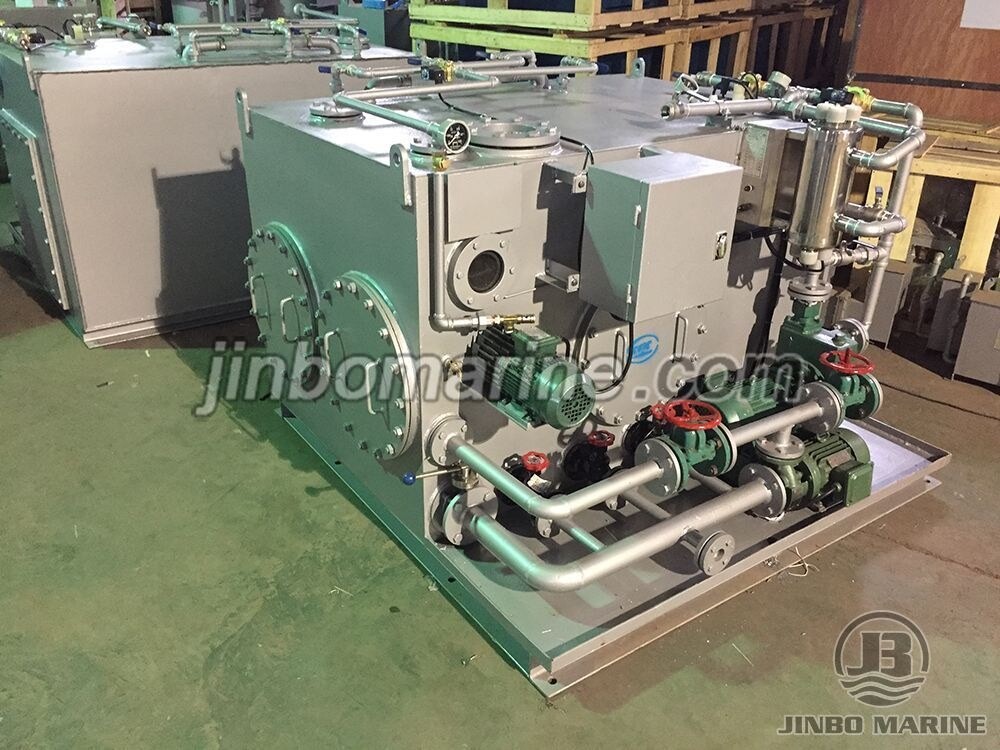

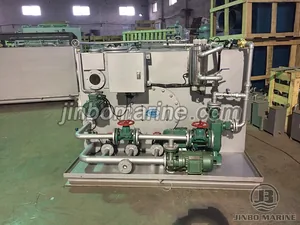

WCMBR-80 Marine Sewage Treatment Plant for Small Space

This model is very suitable for ships with narrow space height, compact structure, easy installation, suitable for small space engine room ships.

It combined biodegradation,membrane bioreactor filter,physical disinfection methods to treat the marine sewage from toilet,gallery and bathroom.

Due to adopt sequence batch reator(SBR),UV disinfection,and membrane bioreactor filter(MBR) technique. The equipment can change the growing environment of activated sludge by time sequencing and realize the aerobic,anaerobic mode,it can reduce the BOD,COD index rapidly and efficiently, and also has good denitrification and dephosphorization effects.Then achieve a super biochemical treatment performance. The equipment can also adapt to the vacuum system with higher concentration of sewage. It has good impact resistance of stream and organic dirt,compact conformatioin,and avert the secondary pollution. The equipment are controled by PLC program. High automatic,high reliability ,easy to operate.

The effluent of the sewage treatment plant can up to the standard of amended MAPOL 73/78 and resolution MEPC.159(55).
