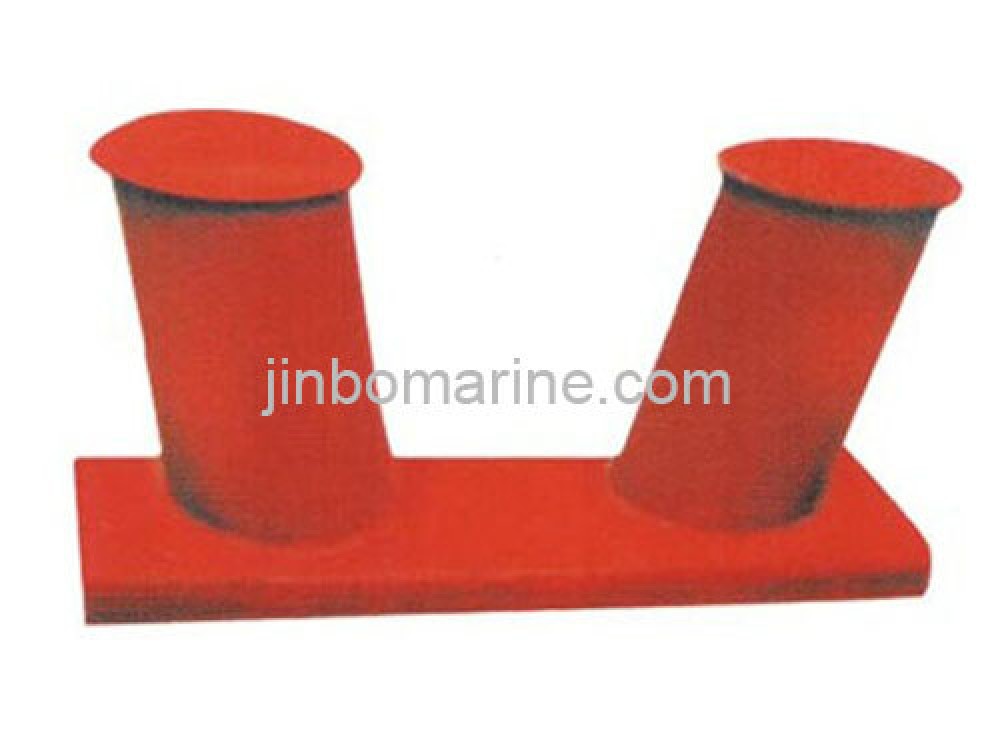

Welded Inclined Bollard GB T556-65
- Category:Marine Bollard
- Standards:GB T556-65
- Material:steel
- Certificate:mill certificate.
- Fob Price:Get Latest Price Now
- Place of Origin:China
- Attachment:[pdf]Welded Inclined Bollard Gb T556 65.pdf
Request a Quote
Not what you need, please send your RFQs via Email.
Details
This product can be used for berthing and mooring of ships.
Note:DH is single baseplate welded inclined bollard
SH is double baseplates welded inclined bollard
Bollard is a device settled on shore, used to bond the cable when vessel mooring.
Material: Cast steel, cast iron.
Process:casting, forging, welding, casting
Dimension table:
| Welded inclined bollard GB T556-65 | |||||||||||
| Type |
Max.Diameter of Wire Ropes |
Max.Diameter of Hemp Ropes |
D | D1 | L | B | A | A1 | H | t | Weight(kg) |
| DH type | 8.7 | 75 | 50 | 65 | 310 | 100 | 205 | 166 | 170 | 6 | 5 |
| 11.5 | 90 | 70 | 90 | 430 | 125 | 296 | 238 | 215 | 7 | 11.5 | |
| 13.5 | 100 | 100 | 115 | 540 | 160 | 364 | 290 | 240 | 7 | 19.2 | |
| SH type | 15.5 | 125 | 125 | 140 | 660 | 170 | 458 | 380 | 295 | 8 | 25.2 |
| 17.5 | 150 | 150 | 165 | 750 | 200 | 525 | 432 | 348 | 8 | 33.3 | |
| 19.5 | 170 | 175 | 190 | 850 | 235 | 630 | 524 | 394 | 9 | 49.2 | |
| 22.5 | 200 | 200 | 220 | 950 | 270 | 676 | 564 | 436 | 10 | 68.8 | |
| 26 | 225 | 250 | 270 | 1150 | 340 | 765 | 640 | 540 | 12 | 95.7 | |
