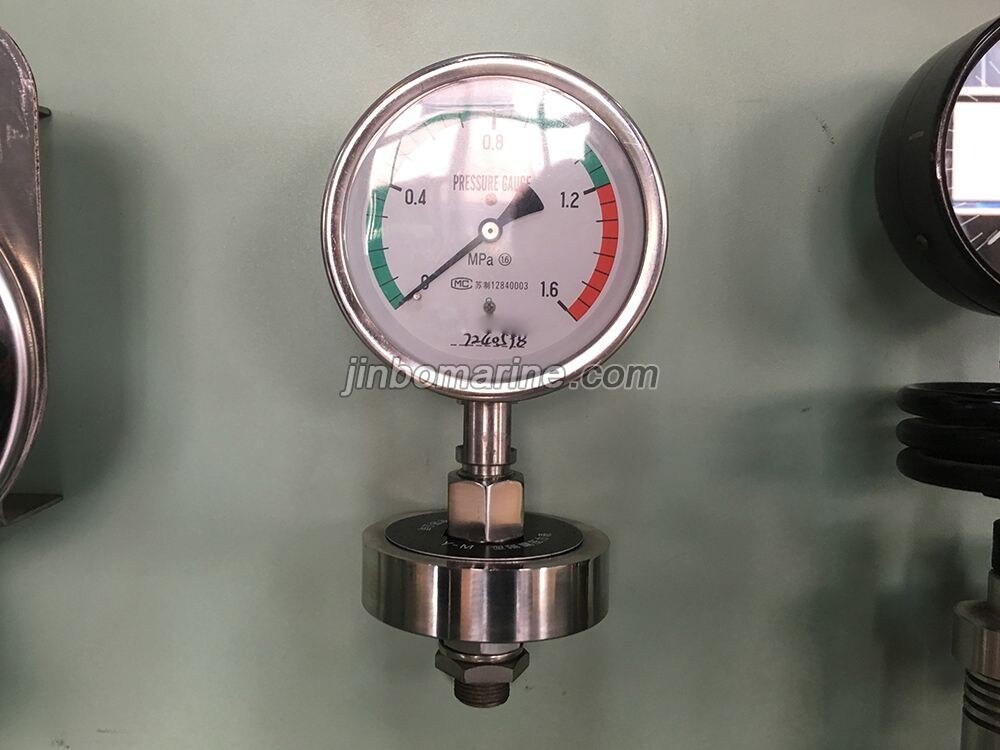

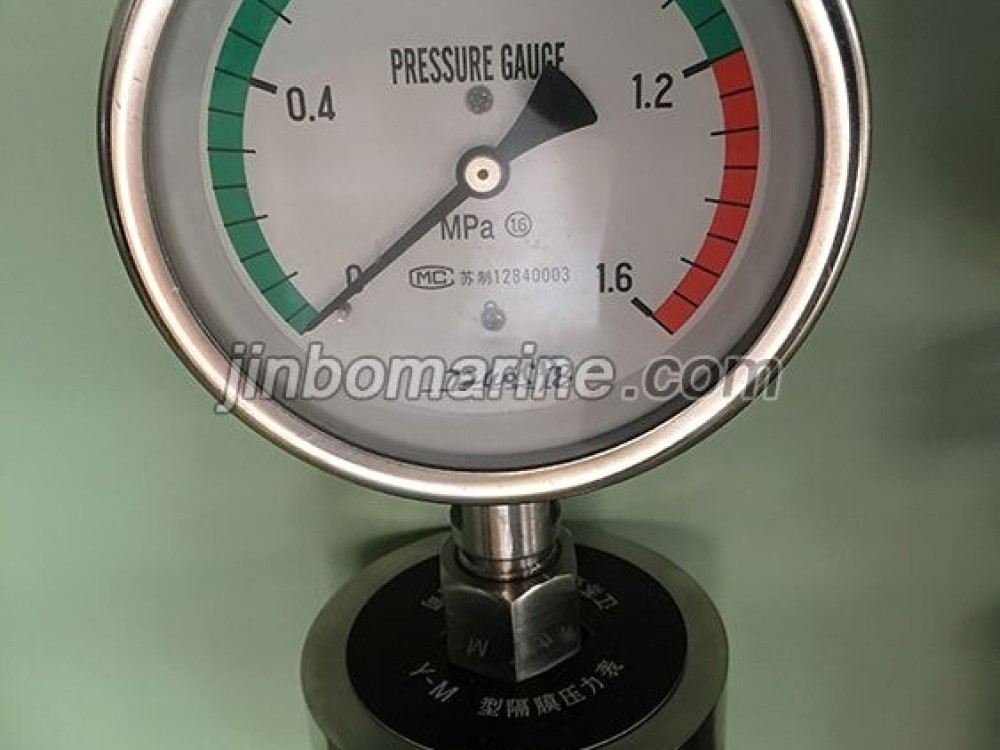

YC-M Model Diaphragm Type Pressure Gauge
- Category:Marine Pressure Gauge
- Certificate:BV,ABS,CCS etc
- Delivery Time:About 7 to 10 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Product Description:
Pressure gauge is a pressure measuring instrument,the core is metal elastic element,the product in accordance with Marine technical standard.
Used for measuring the pressure of gas,oil etc medium on the ship or other industrial equipment.
Parameter:
Material:Iron alloy / Ferroalloy,Aluminium alloy,Copper alloy,Stainless steel.
Accurancy:Grade 2.5,Grade 1.6
Dial Diameter:60mm,75mm,100mm,150mm,200mm.
Main Technical Specification:
| Type and feature | Model code | Dial diameter(mm) | Measure range(Mpa) | Accuracy | Connection thread | |
| Radial no side type | I | - | 60 |
0-0.06 0-0.1 0-0.16 0-0.25 0-0.4 0-0.6 0-1 0-1.6 0-2.5 0-4 0-6 0-10 0-16 0-25 0-40 0-60 |
Grade 2.5 | M14x1.5 |
| Radial back side type | II | T | ||||
| Axial no side type | IV | Z | ||||
| Axial front square type | - | ZF |
M10x1 M14x1.5 |
|||
| Axial front side type | III | ZT | ||||
| Radial cutted side type | II | T | 75 | G 3/8" | ||
| Radial no side type | I | - | 100 | Grade 1.6 |
M20x1.5 G 1/2" |
|
| Radial back side type | II | T | ||||
| Axial no side type | IV | Z | ||||
| Axial front side type | III | ZT | ||||
| Axial back square type | - | TF | ‘-01.-0 | |||
| Radial no side type | I | - | 150 |
’-0.1-0.1 -0.1-0.15 -0.1-0.3 -0.1-0.5 -0.1-0.9 -0.1-1.5 -0.1-2.4 |
||
| Radial back side type | II | T | ||||
| Radial no side type | I | - | 200 | |||
| Radial back side type | II | T | ||||
Model Sign:
