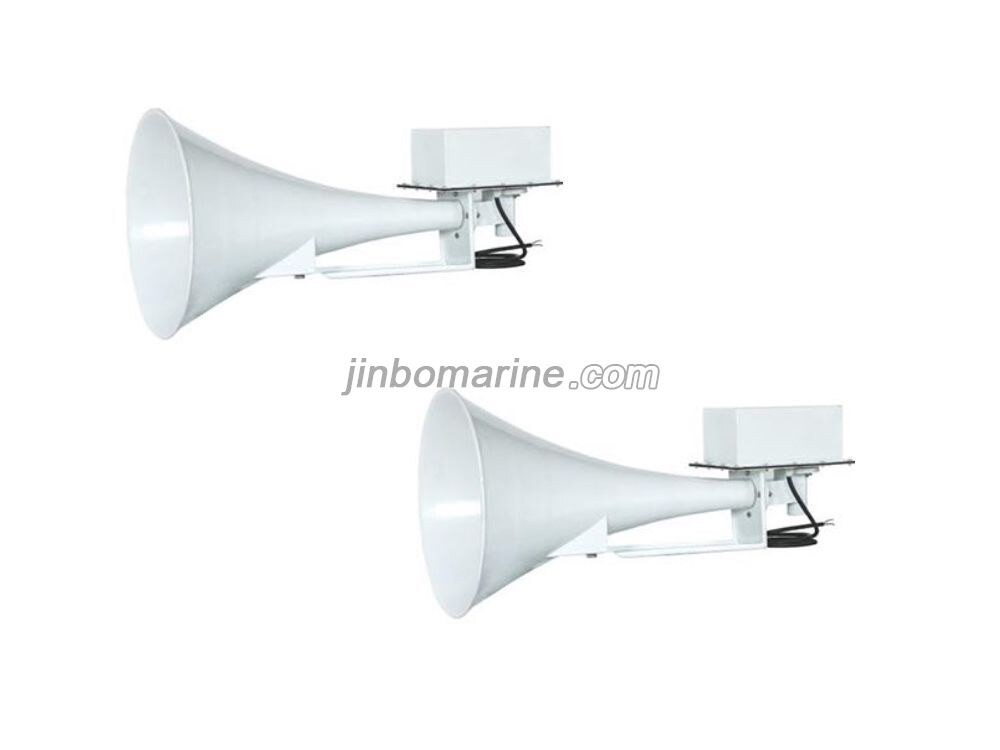

YHC100 YHC200 Marine Electric Whistle
- Category:YHC Marine Whistle System
- Delivery Time:7 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China YHC100 YHC200 Marine Electric Whistle:
Specifications
| Colour: | White |
| Shell Mateiral: | SMC |
| Cable Gland | PG9 |
| Voltage | 120V |
| Power and Sound Level | 100W>=120dB, 200W>=130dB |
YHC200 whistle sound level 2 130dB is suitable for ships with a lengthof 20 meters or more but less than 75 meters.
YHC Electric Hom Control system Schematic Diagram
System composotion:
| No | Name & Descprition | Type | Weight | IP Rating |
| 1 | Whistle contrller | DDQ-1A | 1.8 | IP22 |
| 2 | 100W Electric whistle signal unit | DDX-1 | 11.5 | IP22 |
| 3 | 200W Electric Whistle signal unit | DDX-1 | 11.5 | IP22 |
| 4 | Marine Whistle | YHC-100 | 19 | IP22 |
| 5 | Marine Whistle | YHC-200 | 20 | IP22 |
| 6 | Marine Whistle Button | HDQ-AN | 0.2 | IP22 |
| 7 | Marine Whistle Button | HDG-AN | 0.5 | IP22 |
| 8 | Marine Whistle Button | HDG-AN | 0.5 | IP22 |
