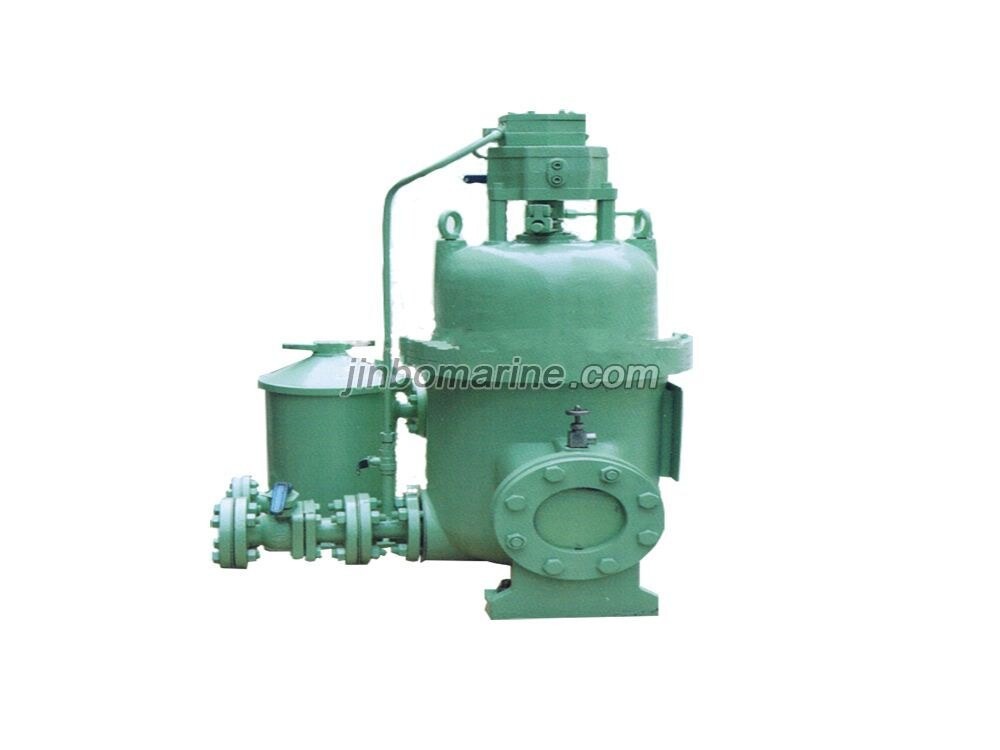

YZL-200 Completely Automatic Lubricating Oil Filter

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

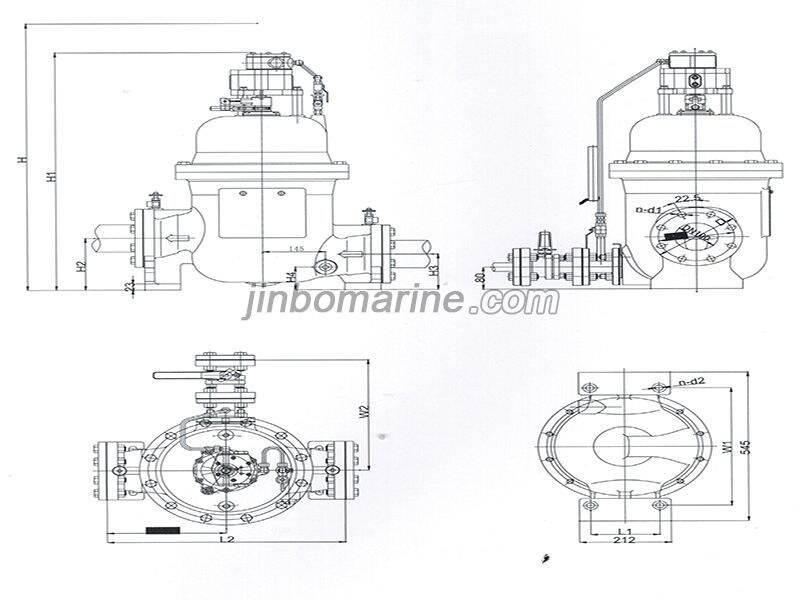

YZL-200 Completely Automatic Lubricating Oil Filter Structure Diagram

YZL-200 Completely Automatic Lubricating Oil Filter Technical Parameters:

Model Flow(referencem³/h) Caliber and jointing size(mm) Overall size(mm) Installing size(mm) Weight(kg)
DN D D1 L1 W1 N-D1 N-D2 H H1 H2 H3 H4 L2 W2
YZL-200 180 200 340 295 327 8-18 4-18 1800 1388 518 318 225 750 675
YZL-150 77 150 280 240 ᵩ500 8-23 4-23 1500 1270 460 270 205 560 338 370
YZL-100 62 100 212 175 160 430 8-19 4-19 1200 870 190 130 83 550 405 190
YZL-65 45 65 185 145 ᵩ368 4-18 4-18 1200 1014 300 182 43 434 456 200
